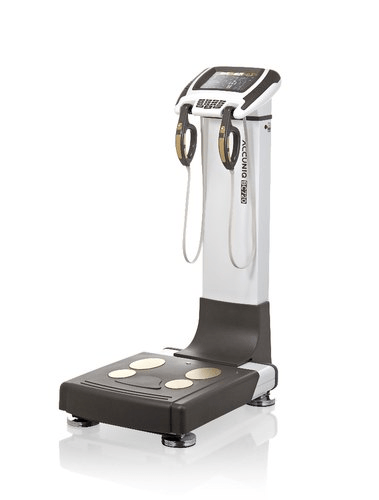

ACCUNIQ BC720
BC720 offers all of the features and functions needed for superior diagnosis of body composition including muscle structure and abdominal obesity that lead to improved treatment for all body types.
Specification
Model | ACCUNIQ BC720 |
Measuring method | Tetra-polar electrode method using 8 touch electrodes |
Frequency range | 1, 5, 50, 250, 550, 1000 kHz |
Measuring site | Measuring site Whole body and Parts of body (arms, legs, and trunk |
Result item | Body Composition ResultWeight, Lean body mass, Mass of body fat, Subcutaneous fat mass, Skeletal muscle mass, Soft lean mass, Protein, Minerals, Total body water, Intracellular water, Extracellular water, Body mass index, Percentage of body fat, Ratio of E.C.W./T.V.W., Waist to hip ratio, Visceral fat level, Visceral fat mass, Visceral fat area, Prediction of abdominal fat, Target to Control (Control of Body fat, Control of Soft lean mass, Control of Weight), Body composition change (8 times accumulated graph of Ratio of E.C.W./T.B.W., Percentage of body fat, Soft lean mass, Weight), Segmental dual graph of soft lean mass, Body type, Body cell mass, Basal metabolic rate, Total energy expenditure, Physical age, Total score, Impedance(segmental & frequency), Reactance, Blood pressure (in case of being connected with a blood pressure monitor)Segmental ResultSegmental total body water, Segmental intracellular water, Segmental extracellular water, Segmental E.C.F./T.B.F., Segmental soft lean mass, Segmental mass of body fat and percent, Impedance(segmental & frequency), QR codeResult sheet for children (Option)Weight, Lean body mass, Mass of body fat, Subcutaneous fat mass, Skeletal muscle mass, Soft lean mass, Protein, Minerals, Total body water, Intracellular water, Extracellular water, BMI, Percentage of body fat, Waist to hip ratio, Body type, Degree of obesity, Child growth curve (height, weight), Body cell mass, Basal metabolic rate, Total energy expenditure, Age matched of body, Nutritional assessment, Body composition change, Segmental soft lean mass, Segmental mass of body fat, Study item (Segmental impedance classified by frequency), QR code |
Current About | 180 mA ±15 |
Power consumption | 60 VA |
Power supply | Input (AC 100~240 V, 50~60 Hz), Output (DC 12 V, 5 A adaptor) |
Display | 8.4 inch wide color LCD |
Input device | Touch screen, PC remote |
Transmissible device | USB port, RS-232 C, Bluetooth, Wi-Fi (Option) |
Printing device | A4 Printer |
Dimension | 496 X 932 X 1182 mm(W X D X H) |
Weight | About 42 kg |
Measuring range | 100 ~ 950 Ω |
Measuring time | Within 1 minute |
Applicable height | 50 ~ 220 cm |
Measuring weight | 10 ~ 270 kg |
Applicable age | 1 ~ 99 years |
Operation ambient | Ambient temperature range 5~40℃, Relative humidity range 15~93% (non condensing) |
Storage ambient | Ambient temperature range -25~70℃, Relative humidity range lower than 93% RH |
This product is a ‘medical device’, please read the ‘Precautions for use’ and ‘How to use’ carefully
Product details
· Frequency range: 1, 5, 50, 250, 550, 1000 kHz
· Measurement site: Measurement by whole body, site (right arm, right leg, left arm, left leg, body)
· Size: 496 X 820 X 1150 mm (W x D x H ± 10mm)
· Various result sheets: body composition result sheet, result sheet (optional), pediatric result sheet (option)
· Measurement mode: Body scale mode, body composition mode
· QR code: Scan the QR code of the LCD and result sheet to send and check the measurement result to the management website
OPTION
Optional parts and software not considered to be medical devices.
PLUS ACCUNIQ MANAGER
All New ACCUNIQ Manager Client Tracking System
Connect Clients to Test Results
Print/Email Test Results
Complete Chart and Graph Analysis
Works on Individual Devices and Servers
MANAGER PLUS
Web Based
BC720 Features
-
6 Frequency 8 Touch contacts
Muscle Mass Analysis Segmental *Skeletal Muscle-Soft Lean Mass-Fat Free Mass
and healthy rangesObesity Analysis Segmental Subcutaneous Fat-Visceral Fat-Visceral Fat Area
-
Body Water Analysis Intracellular-Extracellular Water-% Water Segmental
Phase Angle/Reactance/Impedance MeasurementsControl Guide-BMR-TEE-Results Analysis-Total Score
-
Full 10” Color Touch Screen Display
QR Code Scan for Mobile Devices
Bluetooth Communication
Store 100.000 Measurements
