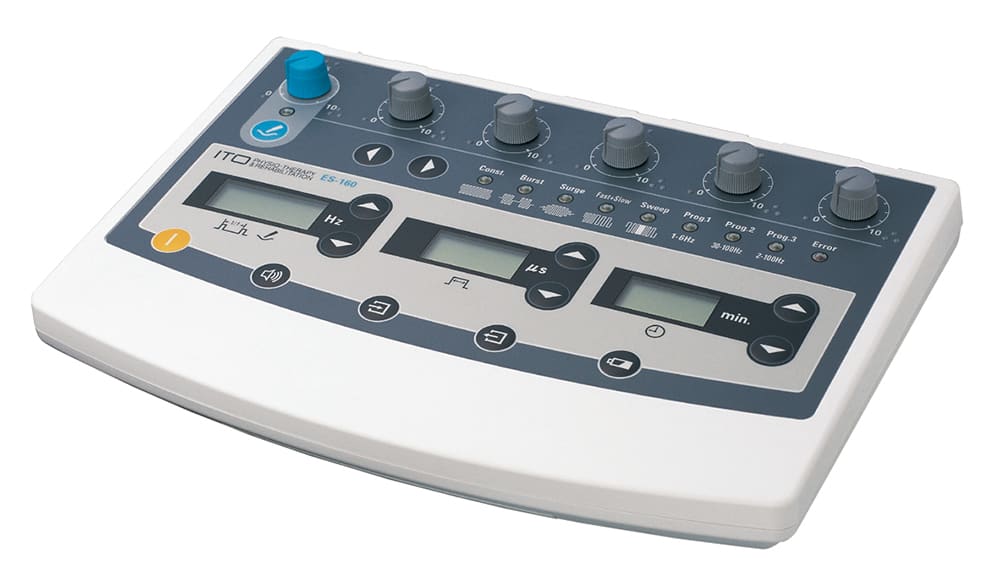

ES-160

SKU: ES-160 Categories: Physiotherapy Division, Physiotherapy Equipment Brand: Ito Co Ltd.

Description
Reviews (0)

Features

SEMI-INDEPENDENT 6 ELECTRO STIMULATION CHANNELS

Semi-independent 6 electro stimulation channels allow to treat with 12 acupuncture needles for various parts of body simultaneously. Semi-independent channels mean that you can apply different current intensity for each channel.

VARIOUS STIMULATION MODES

8 different stimulation modes (Constant, Burst, Surge, Fast+Slow, Sweep, Random-1, Random-2, Randam-3) are installed. These modes allow physicians to have particular treatment they need.

Waveform example

Const
fc = 0.5, 0.7, 1–500 Hz

Surge
fc = 5–500 Hz

Burst
fc = 100 Hz
f = 0.5, 0.7, 1–7 Hz

Sweep
Fs (Slow freq.) = Ff (Fast freq.)/3, Fs = 1–166 Hz, Tsw = 16 s

Fast+Slow
Fs (Slow freq.) = Ff (Fast freq.)/3, Fs = 1–166 Hz

VARIOUS SAFETY FUNCTIONS

ES-160 has following functions for safe treatment.

(1) Self-test
(2) Zero-start
(3) Automatic power-off if the unit is left unused for 5 min.
(4) Remaining battery-life detection
(5) Emergency stop button
(6) Sound on/off function
(7) Tone signal for end of treatment

PREVIOUS TREATMENT PARAMETER SAVING FUNCTION & 16 MEMORABLE PROGRAM NUMBERS

You can save 16 treatment parameters and quickly load & modify them as you like. This function contribute to facilitating to treat numerous patients. And, the previous treatment saving function is also installed. This function allows physicians to save time to start treatment with same parameters as last time.

ACUPUNCTURE POINT SEARCH FUNCTION WITH EXCLUSIVE PROBE

The exclusive probe to search the acupuncture point is supplied as standard accessories. This probe helps to have proper and effective treatment quickly.

Specifications

Power supply	4 x DC 6 V battery
Number of channels	6 semi-independent
Current amplitude (peak)	Stimulation by search / stimulation probe: 48 mA ± 20% Electroacupuncture: [High] 32 mA ± 20% / [Low] 16 mA ± 20%
Pulse shape	Symmetric bi-phasic rectangular pulse
Phase duration	50–400 μs, adjustable
Timer	60 min.
Output modes and frequencies	Constant: 0.5 / 0.7 / 1–500 Hz, Burst: 0.5 / 0.7 / 1–7 Hz (carrier freq. 100 Hz), Surge: 5–500 Hz (on time 4 sec., off time 6 sec.), Fast+Slow: 1–500 Hz (slow freq. = fast freq. / 3), Sweep: 1–500 Hz (slow freq. = fast freq. / 3), Random prog.1: 1–6 Hz (preset program), Random prog.2: 30–100 Hz (preset program), Random prog.3: 2–100 Hz (preset program)
LCD indications	Frequency, Phase duration, Timer, Remaining battery capacity, Sensitivity level (search) and Memory data
Safety class according to IEC 60601-1	Internally powered equipment, Type BF
Dimensions	239 (W) x 174 (D) x 41 (H) mm
Weight	Approx. 600 g (without batteries)
