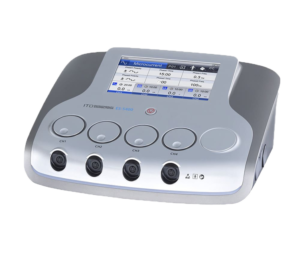

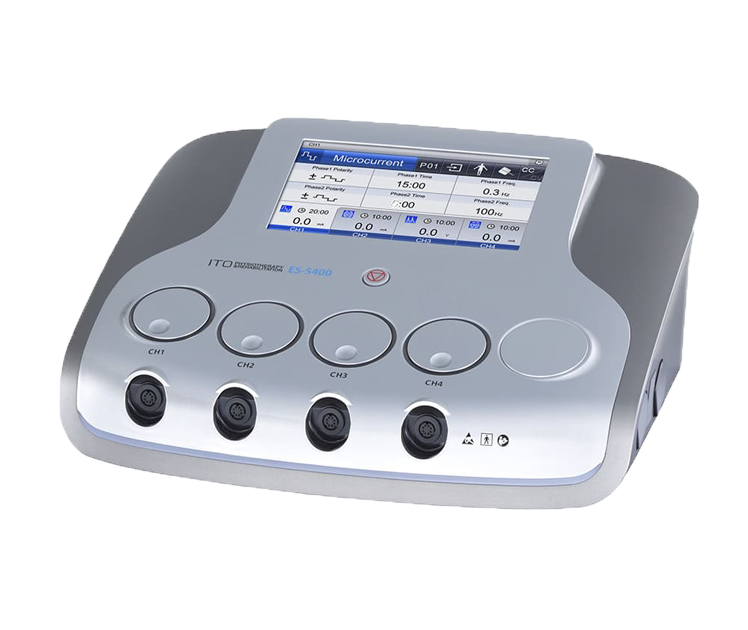

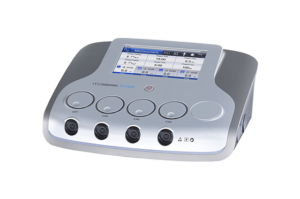

ES-5400
New Designed 4-channel Electrotherapy Unit with All Low-and Medium-Frequency Currents
Features

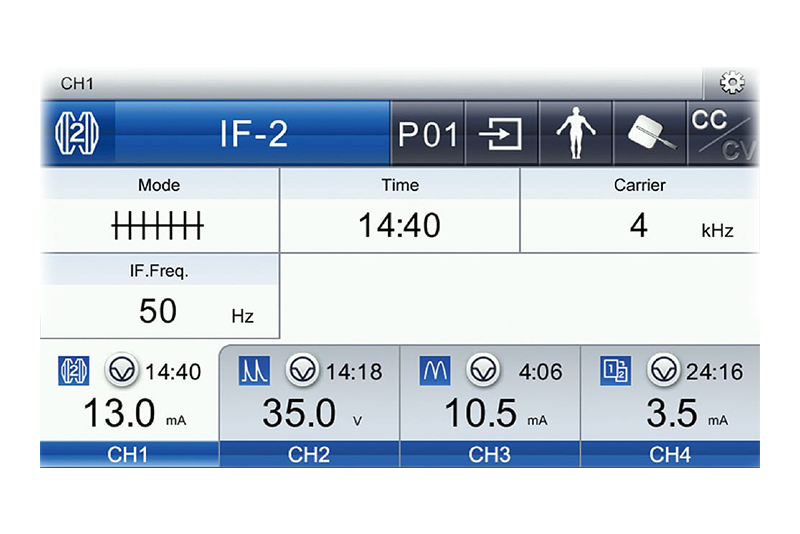

4 INDEPENDENT ELECTROTHERAPY CHANNELS
ES-5400 is electrotherapy unit with four independent channels.
With four channels, multiple patients can be simultaneously treated, which can contribute to saving your time.
Independent channels mean that you can apply different current modes for each channel. It is possible to stimulate local tissues with different currents at the same time. This can provide very efficient result.
28 EFFECTIVE CLINICAL PROGRAMS

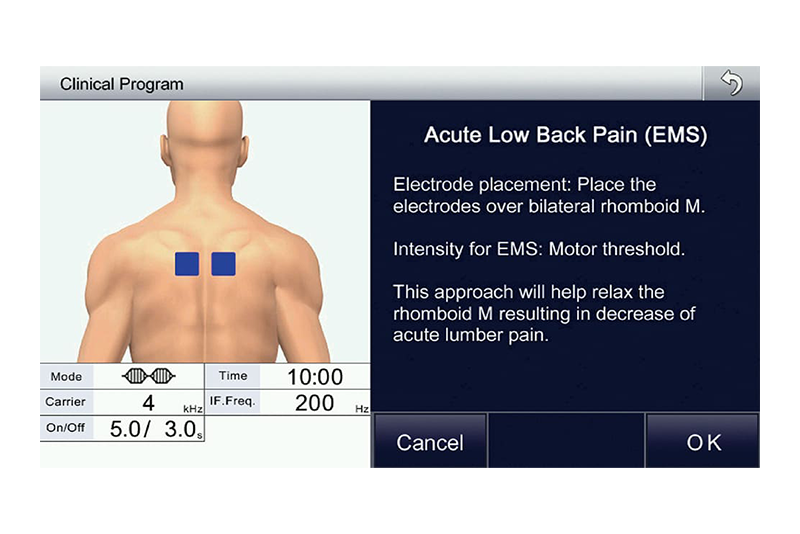

You can simply choose the area to be treated from Human Body Diagram. 28 therapy parameters are pre-programmed for over 20 types of typical pathologies. By using these parameters, you can quickly accumulate know-how of treatment for various pathologies. All the pre-programmed parameters can be modified to suit your particular needs.

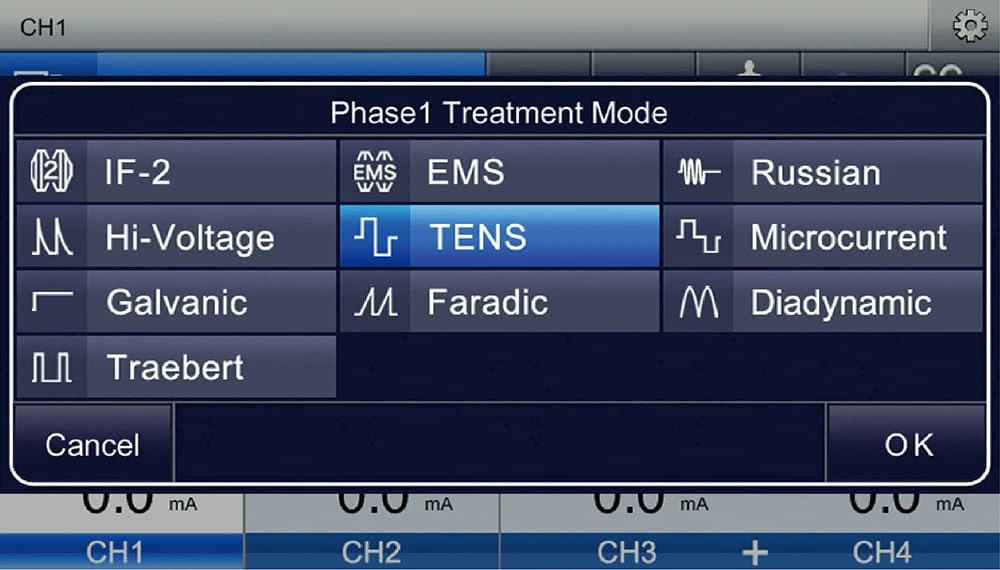

13 TYPES OF FREQUENTLY USED CURRENT MODES INSTALLED
AC: 4-pole IF, 2-pole IF, EMS, Russian, TENS, High Voltage (HV), Microcurrent (MCR)
DC: Galvanic, Faradic, Diadynamic (DF, MF, CP, CP-ISO, LP, RS), Traebert (Ultra Reiz)
Diagnostic: I/T curve and AQ
SEQUENTIAL MODE
This mode allows you to apply two designated therapeutic courses continuously without having to modify unit parameters.
EXCLUSIVE VACUUM UNIT AVAILABLE (OPTIONAL)
SU-540 is exclusively made for and combined to ES-5400. This vacuum unit adopts blow-out system which does not pull dusts nor contain humidity inside vacuum electrode. Therefore, SU-540 minimizes your work effort in maintenance.
CONSTANT CURRENT / CONSTANT VOLTAGE MODES
Depending on current modes, you can select constant current mode (CC) or constant voltage mode (CV). CV mode automatically adjusts the amount of current transferred to skin when the device detects the change of resistance to the skin. This mode enhances safety.
7-INCH TFT COLOR TOUCH SCREEN
The large color touch screen dramatically improves visibility and functionality. The screen is 20% larger than the screen used in previous models.
120 MEMORABLE PROGRAM NUMBERS
You can save 120 treatment parameters and quickly load & modify them as you like. This function facilitates treating numerous patients.
MULTI LANGUAGES
You can select language from English, German, French, Spanish, Italian, Portuguese, Turkish, Chinese and Vietnamese.
Specifications
| Power supply | AC 100–240 V, 50/60 Hz |
|---|---|
| Number of channels | 4 |
| Current Amplitude (peak) | 600 mA ± 15% |
| Frequency | IF: 1–250 Hz, EMS: 20–250 Hz, Russian: 2.5 kHz, HV: 0.5–200 Hz, TENS: 0.5–250 Hz, MCR: 0.2–400 Hz, Galvanic: 0.95–15.8 Hz, Faradic: 20–250 Hz, Diadynamic: 50 or 100 Hz, Traebert: 142 Hz |
| IF carrier frequency | 2, 4, 5, 8 or 10 kHz |
| Timer | 60 min. |
| Safety class according to IEC 60601-1 | Class I, Type BF |
| Dimensions | 345 (W) x 270 (D) x 145 (H) mm |
| Weight | Approx. 2.5 kg |
| Clinical programs (modifiable) | 28 |
| Memorable Program numbers | 120 |
| Output mode | IF: Constant, Sweep EMS and Russian: Surge Independent, Surge Co-Cont, Surge Alternate HV and TENS: Constant, Sweep, Burst, Surge Independent, Surge Co-Cont, Surge Alternate Galvanic: Continuous, Interrupted Diadynamic: DF, MF, CP, CP-ISO, LP, RS |
