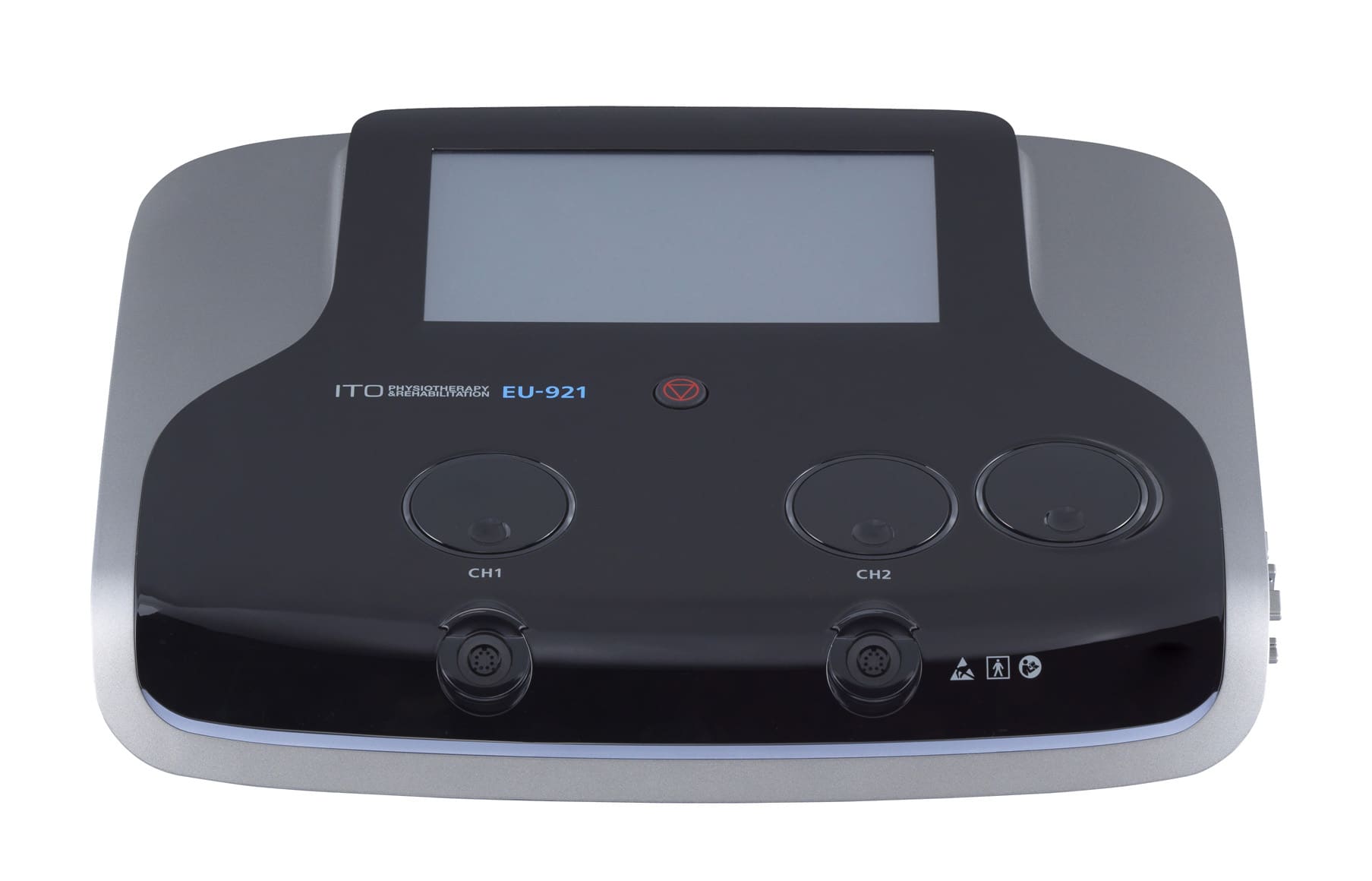

EU-921

2-Channel Electrotherapy/Ultrasound Combo.

SKU: EU-921 Categories: Physiotherapy Division, Physiotherapy Equipment Brand: Ito Co Ltd.

Description
Reviews (0)

Features

LOW BNR (Beam Non-uniformity Ratio)

BNR is one of the indications for quality of the ultrasound beam. The BNR of EU-921 is 2.4 to 4.6 (IEC standards), a significantly low ratio. Low beam non-uniformity ratio prevents hot spots and tissue damages.

47 EFFECTIVE CLINICAL PROGRAMS FOR OVER 30 TYPES OF PATHOLOGIES

You can simply choose the area to be treated from Human Body Diagram. 47 therapy parameters are pre-programmed for over 30 types of typical pathologies. All the pre-programmed parameters can be modified to suit your particular needs.

13 TYPES OF FREQUENTLY USED CURRENT MODES INSTALLED

AC: IF-4, IF-2, EMS, Russian, TENS, High Voltage (HV), Microcurrent (MCR)
DC: Galvanic, Faradic, Diadynamic, Traebert (Ultra Reiz)
Diagnostic: I/T curve and AQ

VISUAL PROBE CONTACT STATUS

Clear light indications on both ultrasound probe and main unit to visually check whether the ultrasound energy is safely and effectively conducted into human body.

210 MEMORABLE PROGRAM NUMBERS

You can save 210 treatment parameters and quickly load & modify them as you like. This function facilitates treating numerous patients.

SEQUENTIAL MODE

This user-friendly treatment mode allows you to apply two designated therapeutic courses continuously without having to modify unit parameters.

CONSTANT CURRENT / CONSTANT VOLTAGE MODES

Depending on current modes, you can select constant current mode (CC) or constant voltage mode (CV). CV mode automatically adjusts the amount of current transferred to skin when the device detects the change of resistance to the skin. This mode enhances safety.

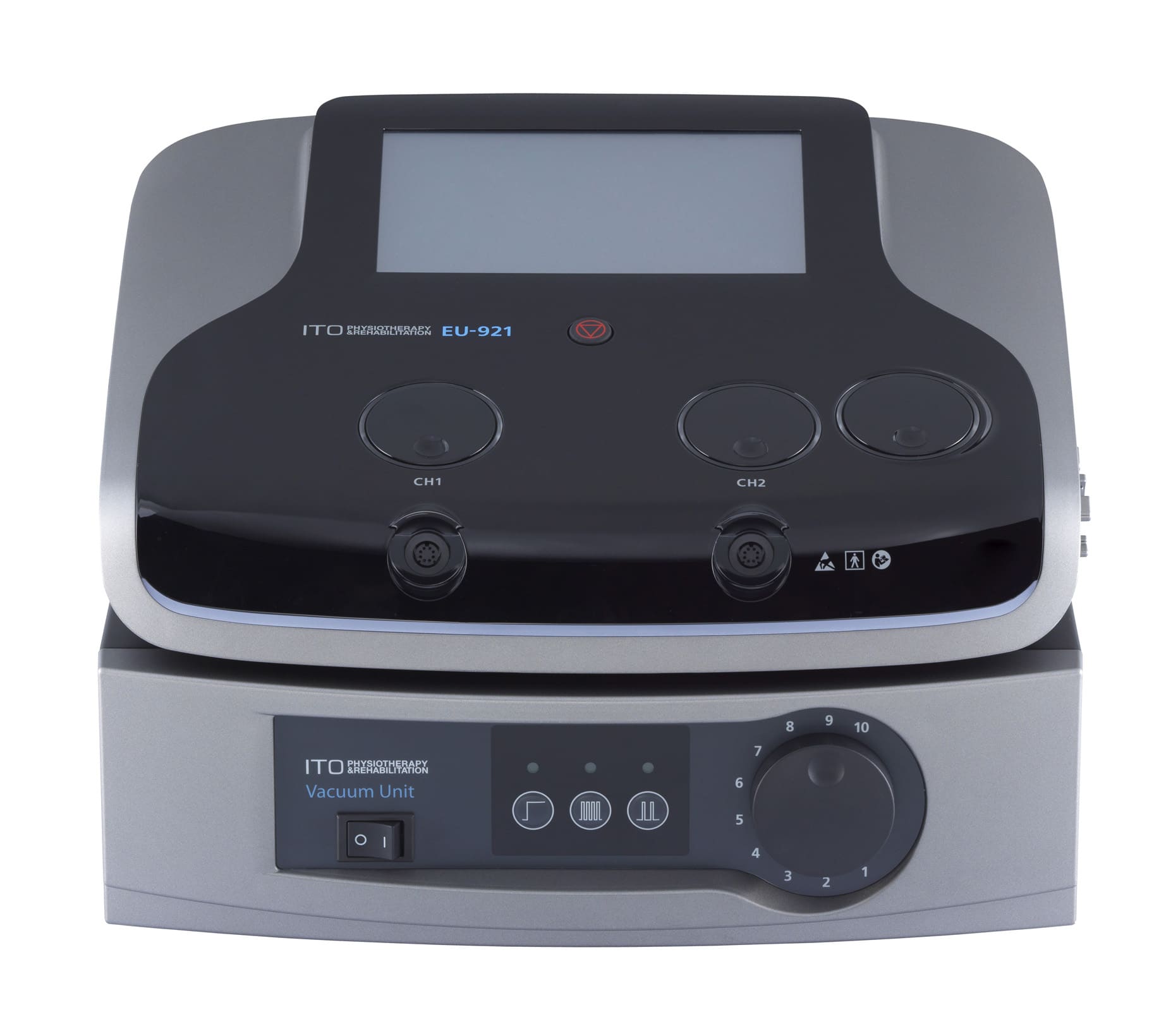

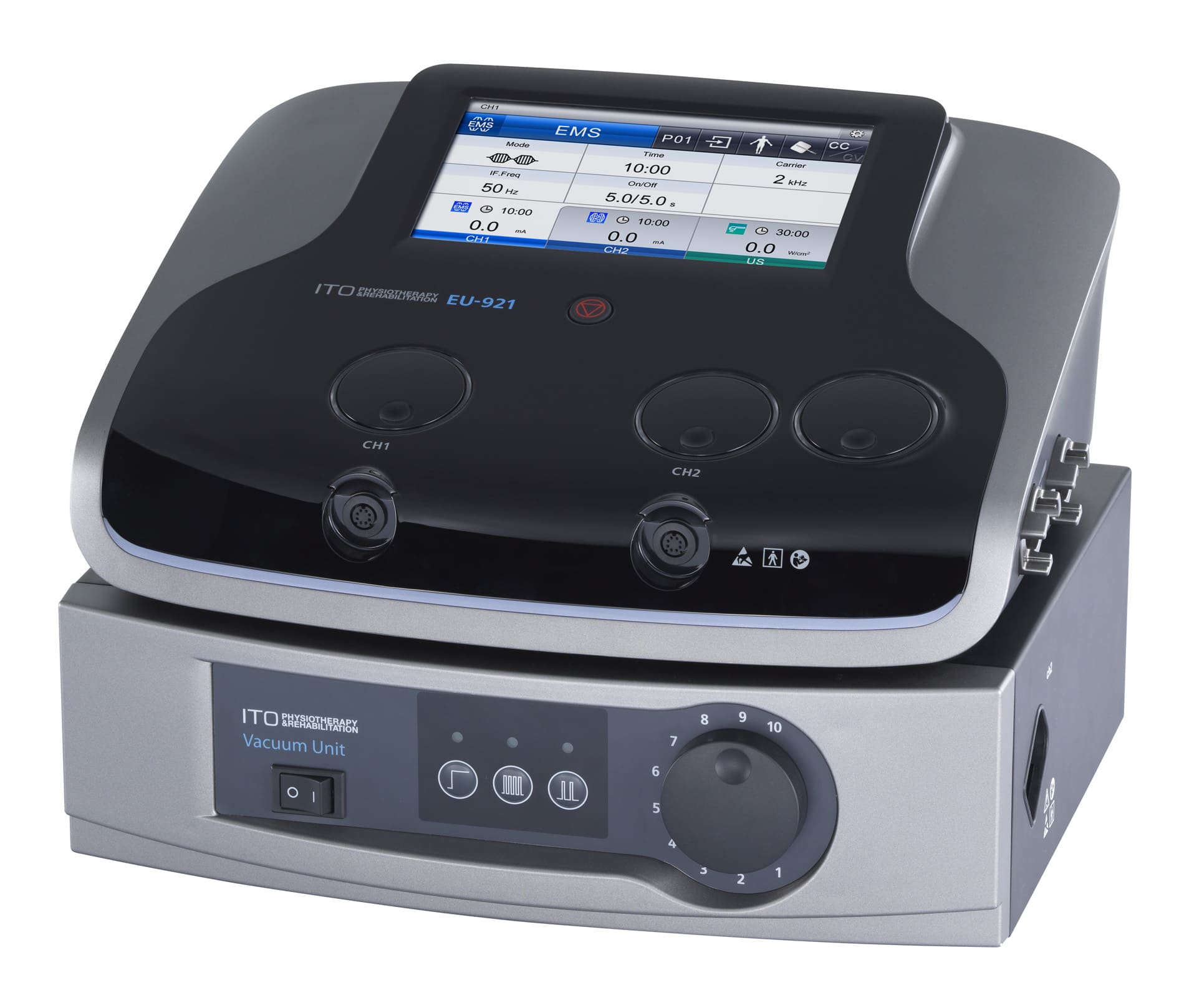

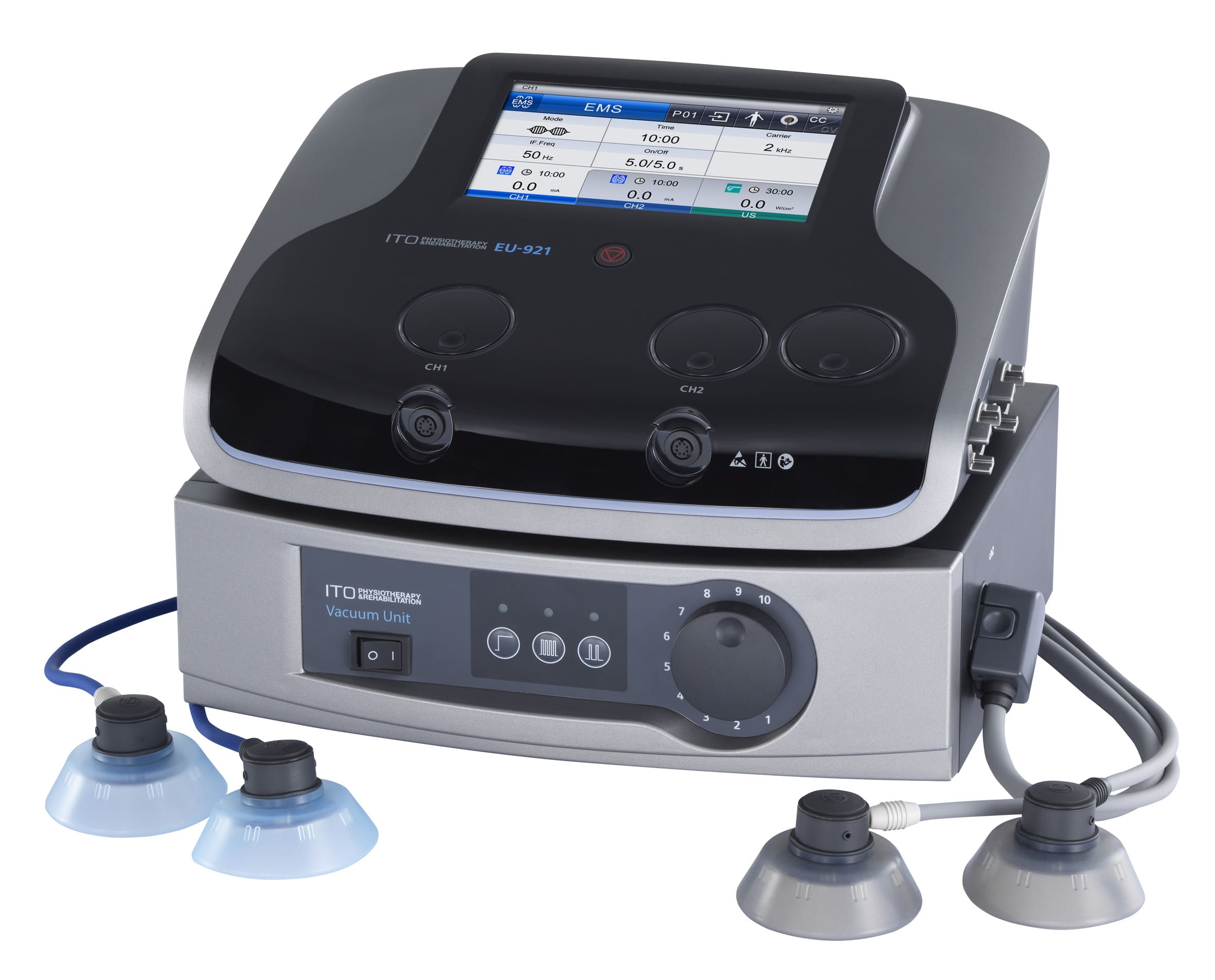

EXCLUSIVE VACUUM UNIT AVAILABLE (Optional)

SU-520 <BK> is exclusively made for and combined to EU-921. Our unit adopts blow-out system which does not pull dusts nor contain humidity inside vacuum electrode. Therefore, our unit minimizes your work effort in maintenance.

MULTI-FREQUENCY TREATMENT PROBES (1MHz and 3MHz)

Each probe is compatible with 1 MHz and 3 MHz. Treatment for various body parts is available by using L probe for broad body parts such as shoulder and waist, and S probe (optional accessory) for narrow ones such as finger and toes.

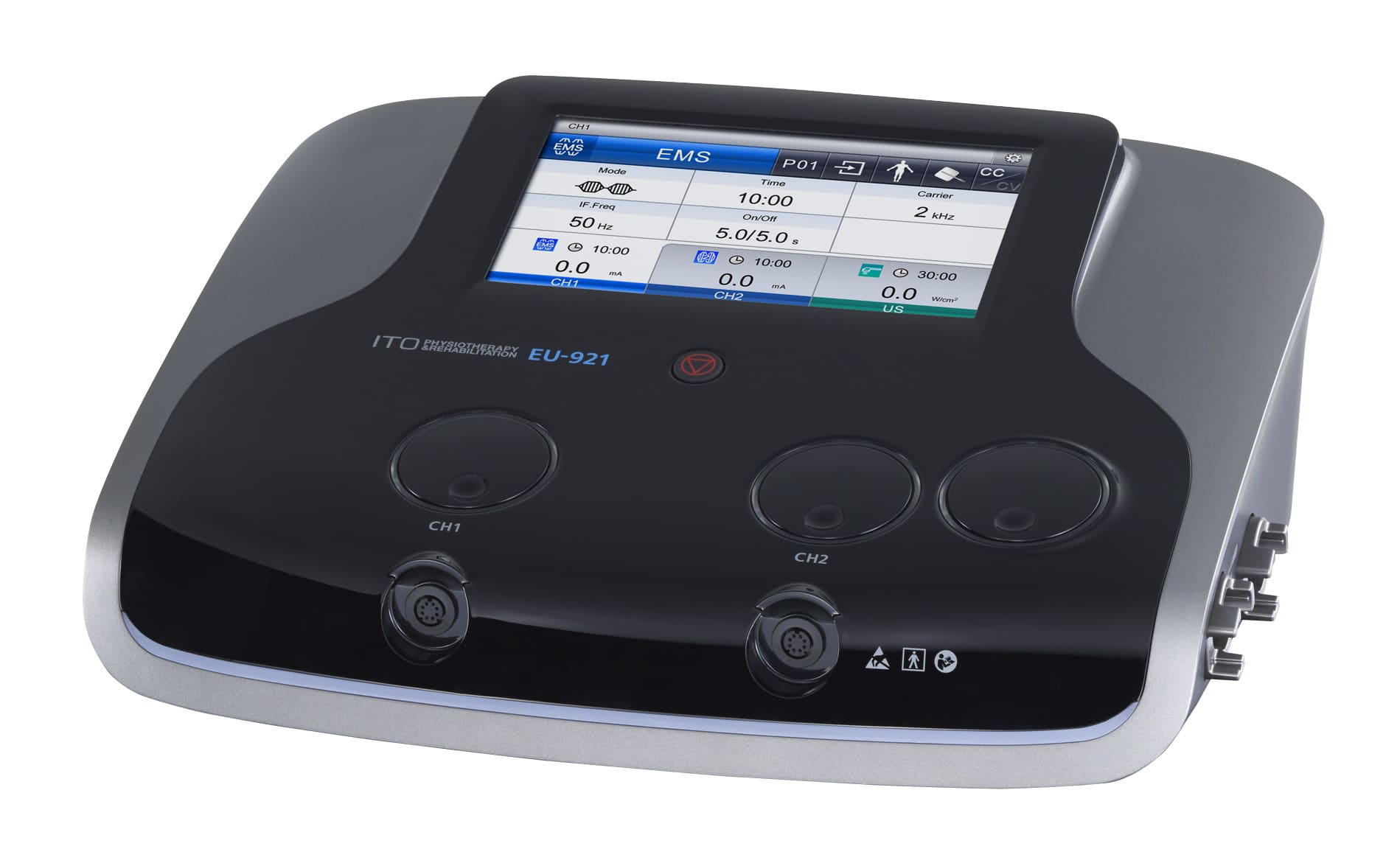

7-INCH TFT COLOR TOUCH SCREEN

The large color touch screen dramatically improves visibility and functionality. The screen is 20% larger than the screen used in previous models.

MULTI LANGUAGES

You can select language from English, German, French, Italian, Spanish, Portuguese, Turkish, Vietnamese & Chinese.

2 ULTRASOUND PROBES CONNECTABLE

You can connect both small(2 cm²) and large(11 cm²) head ultrasound probes to quickly change the treatment head.

SELECTABLE COUPLING SENSITIVITY

You can select the appropriate coupling sensitivity between ultrasound gel and medicated gel.

Specifications

Power supply	AC 100–240 V, 50/60 Hz
Power consumption	140 VA
Safety class according to IEC 60601-1	Class I, Type BF
Dimensions	350 (W) x 270 (D) x 145 (H) mm
Display size	154 (W) x 85.9 (H) mm
Weight	Approx. 3.5 kg
Number of channel	3 independent (2 for electrotherapy, 1 for ultrasound)

Electrotherapy

Current mode	IF-4, IF-2, EMS, Russian, High Voltage (HV), TENS, Microcurrent (MCR), Galvanic, Faradic, Diadynamic, Traebert, I/T Curve, AQ
IF carrier frequency	2, 4, 5, 8, 10 kHz
Frequency	IF: 1–250 Hz, EMS: 20–250 Hz, Russian: 2.5 kHz, HV: 0.5–200 Hz, TENS: 0.5–250 Hz, MCR: 0.2–400 Hz, Galvanic: 0.95–15.8 Hz, Faradic: 20–250 Hz, Diadynamic: 50 or 100 Hz, Traebert: 142 Hz
Current amplitude (peak)	IF, EMS, TENS, Russian: 100 mA / HV: 600 mA / MCR: 750 μA / Galvanic: 20 mA / Faradic, Diadynamic, Traebert, I/T Curve, AQ: 70 mA
Vector sweep (for IF-4)	0°, 15°, 30°, 45°
Timer	60 min.
Memorable program numbers	120
Clinical programs (modifiable)	28

Ultrasound

US mode	continuous, pulsed (duty 5, 10, 20, 30, 40, 50, 100%)
Number of US probe connections	2
Intensity (max.)	Continuous: 2.00 W/cm² ± 20% Pulsed: 3.00 W/cm² ± 20%
US frequency	1 MHz or 3 MHz
Pulse frequency	16 Hz, 48 Hz, 100 Hz ± 5%
BNR US Probe head (IEC Standards)	Large 1 MHz: 4.6 ± 30% 3 MHz: 2.4 ± 30% Small 1 MHz: 2.9 ± 30% 3 MHz: 2.4 ± 30%
ERA US Probe head (IEC Standards)	Large 1 MHz: 5.0 cm² ± 20% 3 MHz: 5.0 cm² ± 20% Small 1 MHz: 0.7 cm² ± 20% 3 MHz: 0.5 cm² ± 20%
Timer	30 min.
Probe head	Large 11 cm² Small 2 cm²
Probe head material	Aluminum alloy
Probe head diameter	Large 37.5 mm Small 16 mm
Probe cable length	Large 2 m Small 2 m
Class of protection against ingress of harmful water(according to IEC 60601-2-5)	IPX 7 (US probe)
Applicable coupling agents	Ultrasound gel and Ointment
Memorable program numbers	10 (US) / 80 (Combo)
Clinical programs (modifiable)	18 (US) / 1 (Combo)
