Mphi 5

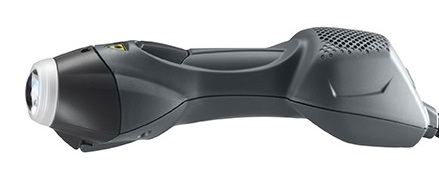

Handpiece

1 MLS^® source – 25 W Peak Power
2 cm  diameter Target Area

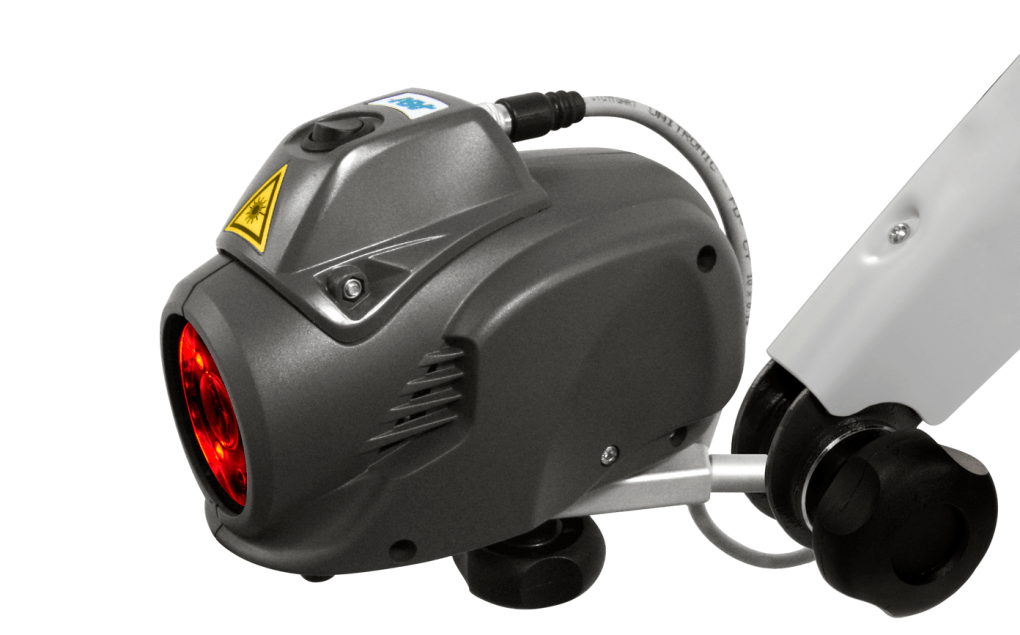

Multidiodic applicator Charlie

3 MLS^® sources – 3 x 25 W Peak Power
5 cm  diameter Target Area

• • Simultaneous management of two independent channels
  • Multidiodic applicator Charlie with optical group composed of 3 MLS^® sources power up to 3.3 W – Peak Power 3 x 25 W
  • Target Area ø 5 cm highlighted by highefficiency red light LEDs
  • Handpiece with optical group composed of MLS^® source power up to 1.1 W – Peak Power 25 W
  • Target Area ø 2 cm highlighted by high-efficiency red lights LEDs
  • High resolution LCD color touch screen user interface
  • Possibility to customize every treatment parameters
  • 4 treatment modalities:
    A) specific pathologies
    B) pain management
    C) anti-edema
    D) biostimulation
  • MLS^® modulation in CPW and FPW mode (Synchronized emission of Continuous Pulsed Waves and Frequenced Pulsed Waves)
  • Modulation frequency from 1 to 2000 Hz with 1 Hz steps
  • Power level 25%, 50%, 75% and 100%
  • Fixed duty cycle at 50% or variable
  • Treatment duration from 1” to 99’59” with 1” steps
  • Automatic calculation of the emitted energy according to the settled parameters

• Interlock
• Acoustic signal selectable by operator
• Date and time
• Password to operate the device
• Language option
• Ready to be connected to the remote laser emission signaling device

ACCESSORIES INCLUDED

• Nº 2 Laser Safety goggles
• Unit carrying case
• Shoulder strap for portable use
• Table handpiece holder

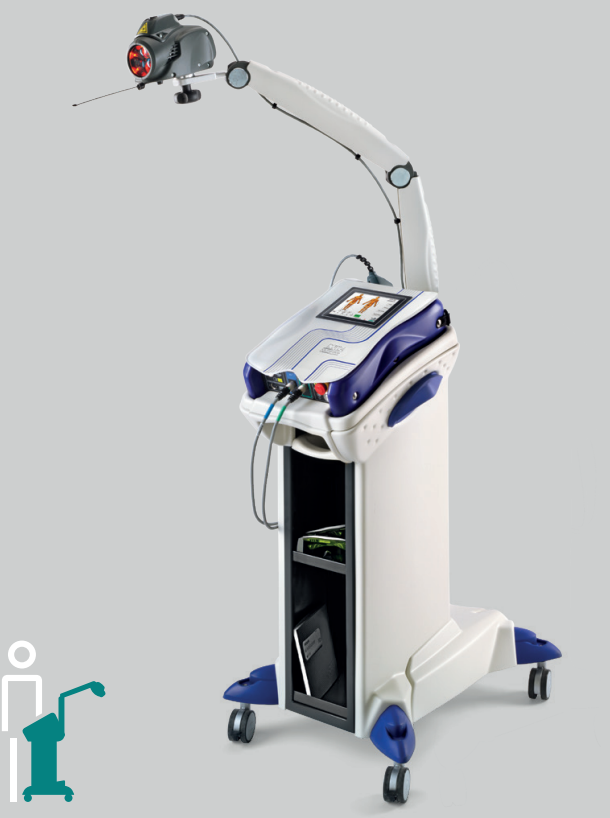

• Trolley-Ergonomic trolley designed for holding Mphi, with bumper-protected wheels, a built-in handpiece holder and two storage compartments
• Arm for Charlie

SIZE AND WEIGHT

• 63 x 54 x 85 cm
• 25 Kg

POWER SUPPLY

• Lithium polymer battery
• External power supply 18Vdc

MLS^® Laser Therapy

MLS^® Laser Therapy comes from ASA’s scientific research to overcome the limits of traditional laser therapy and at the same time to exploit the advantages of low and high power through a patented quality impulse.
