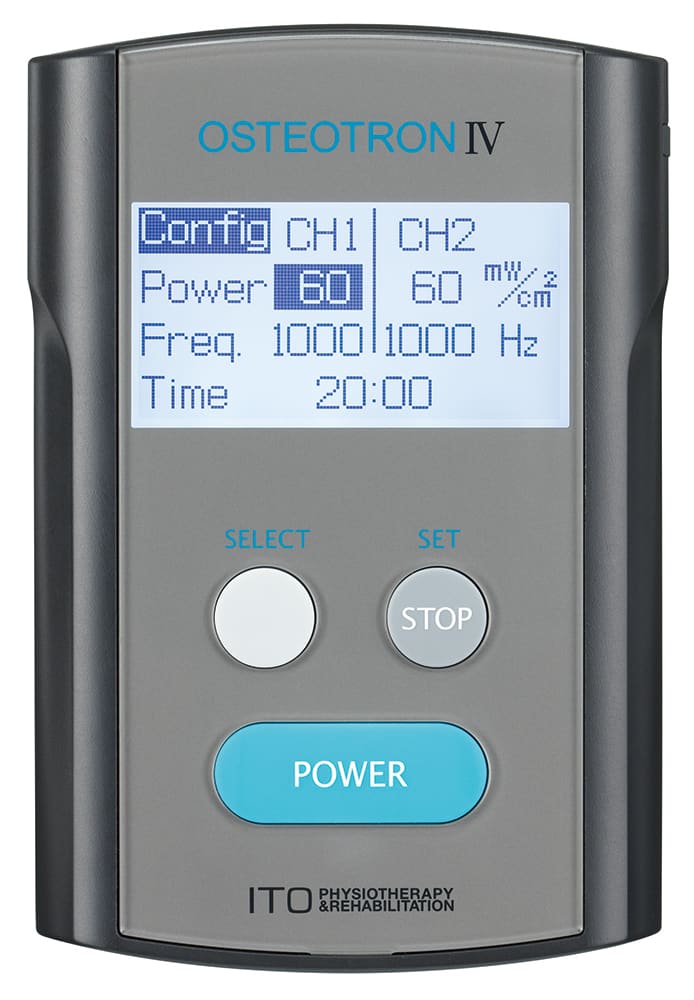

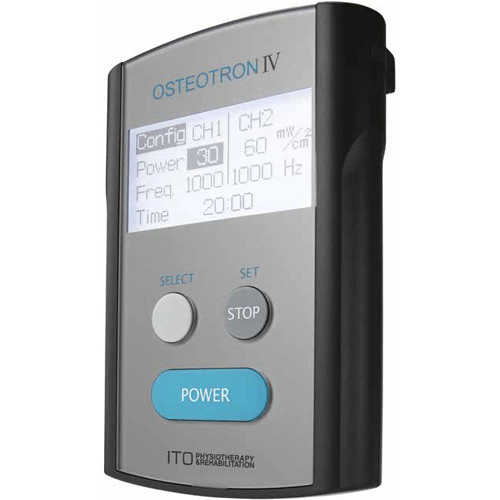

OSTEOTRON Ⅳ

Ultrasound Bone Growth Stimulator with Standard Acc.

SKU: OSTEOTRON-5 Categories: Physiotherapy Division, Physiotherapy Equipment Brand: Ito Co Ltd.

Simultaneous therapy for multiple areas is available with two output channels.

BNR is one of the indications for quality of the ultrasound beam. The BNR of OSTEOTRON IV is 3.0 to 3.5 (IEC standards), a significantly low ratio.

OSTEOTRON IV is capable of generating two frequencies (1.5 MHz and 750 kHz) by changing ultrasound probe.

Probe Retainer image (with Belt, for use with Cast)

The exclusive probe retainers are supplied as standard accessory which contribute to easy probe attachment.

As the weight of main unit is approx. 300 g and the unit size is very compact, you can easily bring them anywhere you like.

AC or battery operation is available.

Only three-step output control to start treatment.

OSTEOTRON IV is supplied with a carrying case and all necessary accessories. Easy to transport all necessary items to have complete therapy.

Power supply	DC 4.8 V, 4 x Nickel metal hydride rechargeable battery / DC 5 V, AC Adaptor
Intensity	30 mW / cm² ± 20%, 45 mW / cm² ± 20%, 60 mW / cm² ± 20% (SATA)
Number of channel	2
Ultrasound frequencies	1.5 MHz or 750 kHz (optional)
Pulse frequency	100 Hz or 1000 Hz
BNR US Probe head (IEC Standards)	1.5 MHz 3.5 ± 30% 750 kHz 3.0 ± 30%
ERA US Probe head (IEC Standards)	1.5 MHz 3.9 cm² ± 20% 750 kHz 3.5 cm² ± 20%
Timer	20 min. or 30 min.
Safety class according to IEC 60601-1	Class I / Internally powered equipment, Type BF
Dimensions	98 (W) x 40 (D) x 145 (H) mm
Weight	240 g (without batteries)
