PMT Qs
Total body treatment.
Full magnetotherapy.

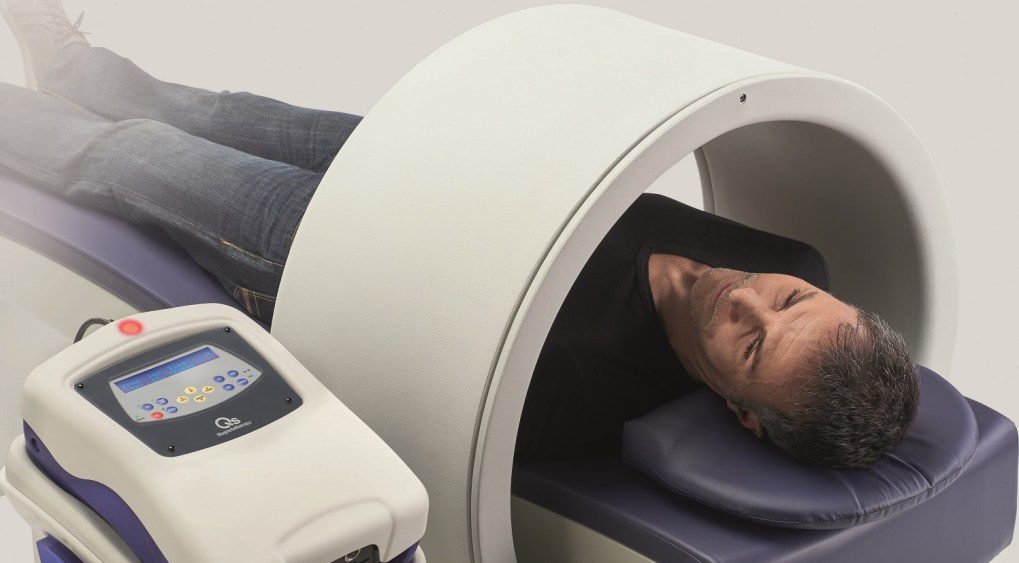

PMT Qs is the ergonomic and easy to use device, equipped with trolley, bed and an innovative design, designed for the treatment of different body areas such as the spine, limbs, hips and shoulders, ensuring the utmost comfort to the patient during therapy.
The PMT Qs devices generate pulsed magnetic fields at extremely low frequency (ELF – Extremely Low Frequency) and at low intensity, which are able to pass through the body, acting on all tissues (muscle, bone, nerve, epithelial, etc.). Effective even in depth, they are not invasive and do not cause pain.
PMT Qs allows applying magnetic fields in a direction parallel to the longitudinal axis of the body, through the use of solenoids, or perpendicularly to the surface to be treated, through the use of the Flexa applicators, particularly suitable for localised treatments thanks to their flexible conformation.
With the addition of optional accessories, it is possible to build different configurations, connecting up to 4 beds, two of which in automatic mode.
In the automatic version the electromechanical movement system automatically places the solenoid on the area to be treated (5 positions) returning to the initial position at the end of the therapy, with a saving of the operator’s time. There is also the possibility of carrying out the automatic scanning treatment in a continuous manner between two established positions, or with a defined dwelling time on each of the two positions. In the manual version the operator is facilitated in positioning the solenoid on the area to be treated thanks to the easy sliding allowed by the aluminium guides, closed with a safety lock.
Technical characteristics
- 3 completely independent channels
- 6 outputs (2 for each channel)
- Frequency from 0.5 to 100 Hz
- Magnetic field intensity variable from 5 to 100%
- Treatment time from 1 to 99 min and continuous
- Pre-set, adjustable, saveable programmes
- Backlit LCD
- Membrane keyboard
ALARMS AND SAFETY FEATURES
- Therapy start and therapy end acoustic signal
- Language option
- Machine status signals and alarms
INCLUDED ACCESSORIES
- Unit carrying trolley
- Carry case
SIZE AND WEIGHT
- Generator: 28 x 38 x 13 cm (W x D x H) – 3 kg
- Unit carrying trolley – 63 x 54 x 85 (H) cm – 17 kg
- Flexa applicator: 36 x 21 x 2 cm (W x D x H) – 1,2 kg
POWER SUPPLY
- 100/240V±10% 50/60Hz 850VA max

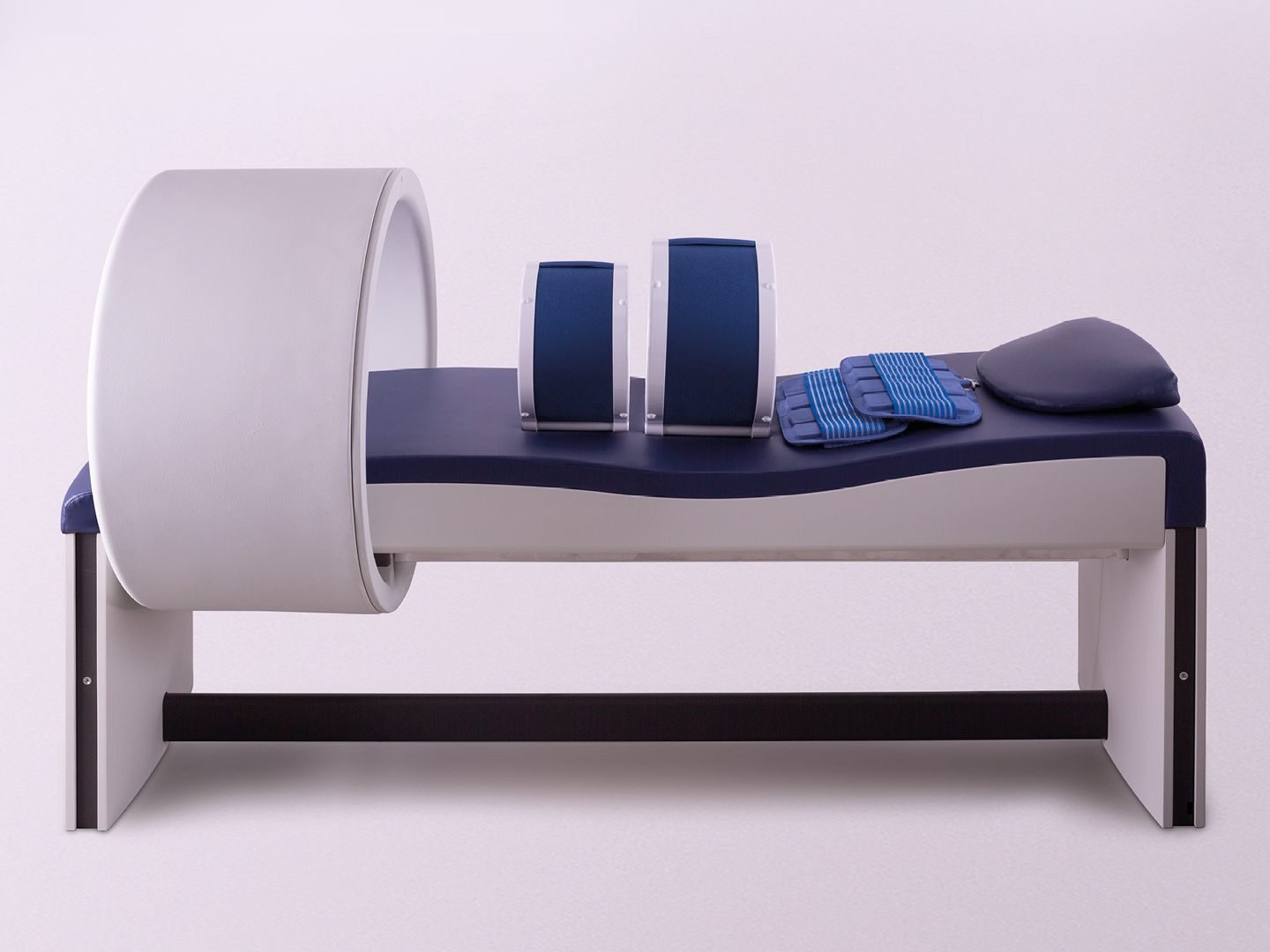

COUCH WITH MANUAL SLIDING SOLENOID Ø 80 cm
Solenoid slides manually on aluminium runners with safety block
Size and weight:
Solenoid: Ø 80 cm, depth 40 cm – 25 Kg
Couch: 188 x 55 x 72 cm (W x D x H) – 50 Kg
MOTORIZED COUCH WITH SOLENOID Ø 80 cm
Electromechanical system for solenoid movement managed by microprocessor
Size and weight:
Solenoid: Ø 80 cm, depth 40 cm – 25 Kg
Couch: 188 x 55 x 72 cm (W x D x H) – 55 kg
Power Supply: 100/240V±10% 50/60Hz 150VA max
OPTIONAL ACCESSORIES
- Portable solenoid Ø 30 cm
Dimensions and weight: depth 21 cm – 6,5 Kg - Portable solenoid Ø 50 cm
Dimensions and weight: depth 34 cm – 11,5 Kg
Magnetotherapy
The functioning of ASA Magnetotherapy, based on the scientific principles of ELF (Extremely Low Frequency 1–100 Hz) pulsed magnetic fields, is characterized by low frequency and low intensity.
