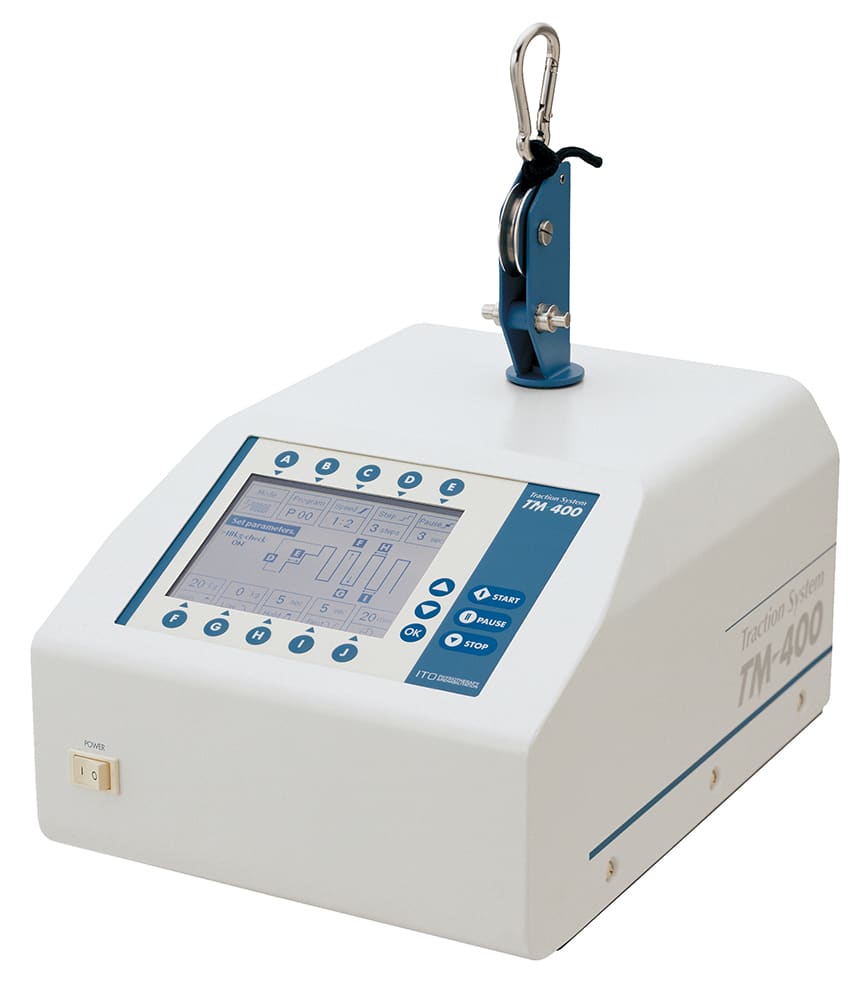

TM-400

SKU: TM-400 Categories: Physiotherapy Division, Physiotherapy Equipment Brand: Ito Co Ltd.

Description
Reviews (0)

Features

8 TRACTION MODES

Most common effective 8 traction modes are installed. Parameter of each mode can be modified to suit your particular needs.

30 MEMORABLE PROGRAM NUMBERS

You can save 30 treatment parameters and quickly load & modify them as you like. This function facilitates treating numerous patients.

AUTOMATIC CALIBRATION FOR TRACTION FORCE

Innovative automatic calibration function for traction force is installed. It contributes to maintaining accurate and suitable traction force.

LARGE AND HIGH-VISIBILITY LCD SCREEN

The large LCD display improves visibility and functionality.

SELECTABLE PULLING SPEED

You can select pulling speed from 1:1, 1:2, 1:4, 1:6 and 1:8.

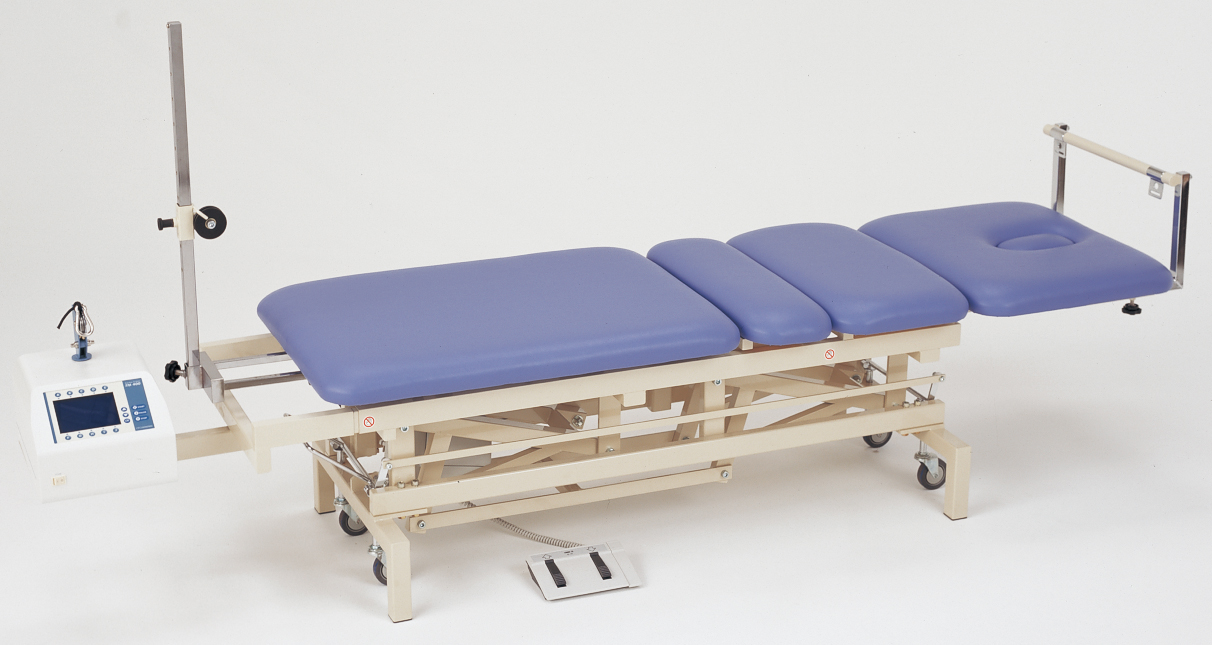

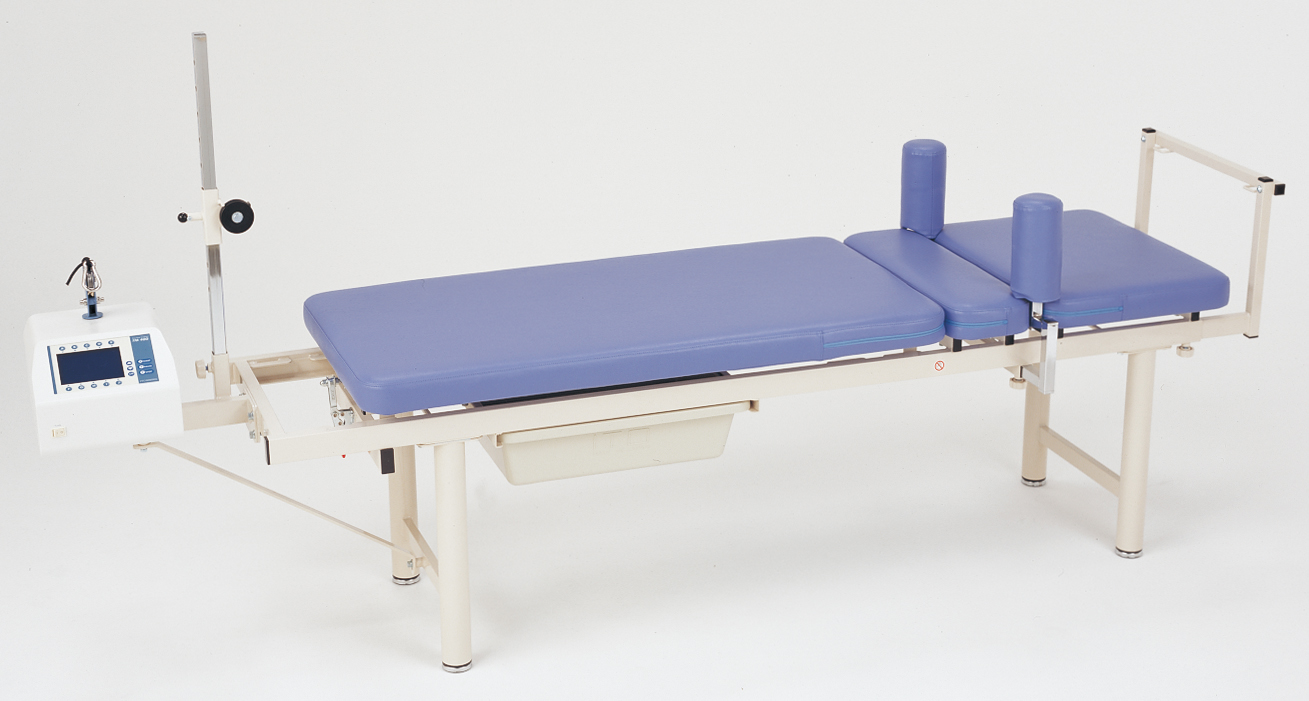

EXCLUSIVE TRACTION TABLE AVAILABLE (Optional)

Fixed Height Traction Table and Electric Variable Height Traction Table are exclusively made for TM-400. They can be supplied as optional accessory.

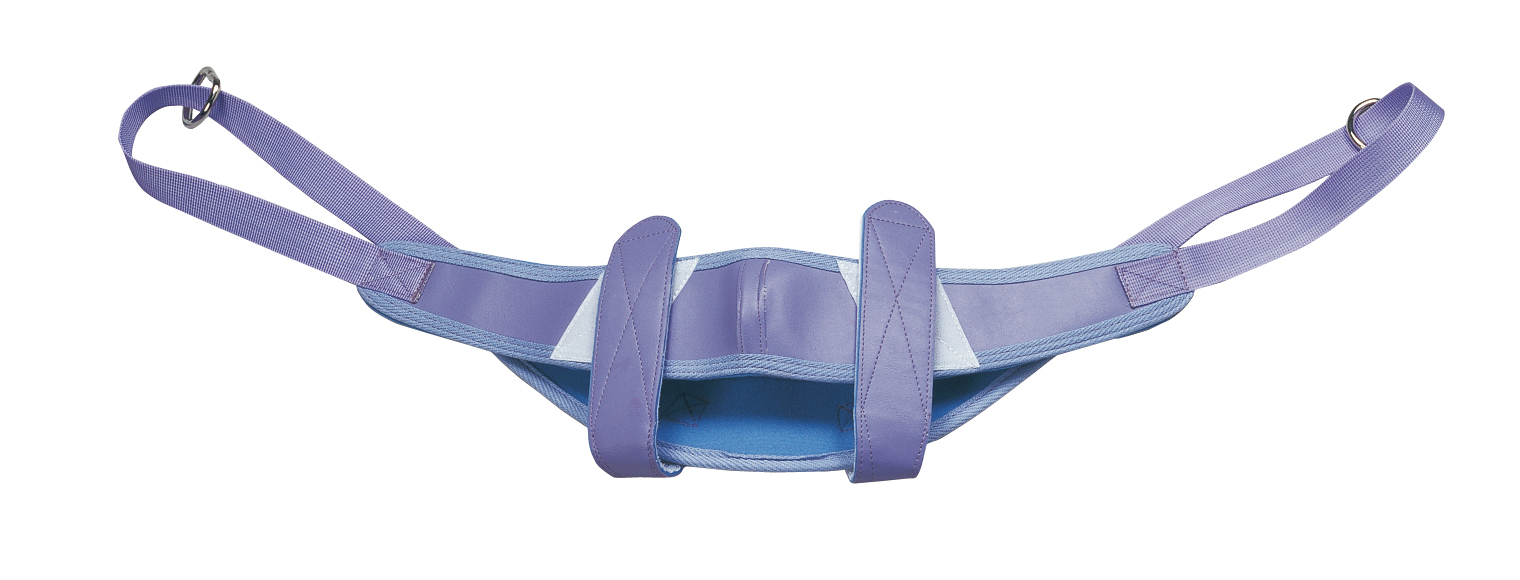

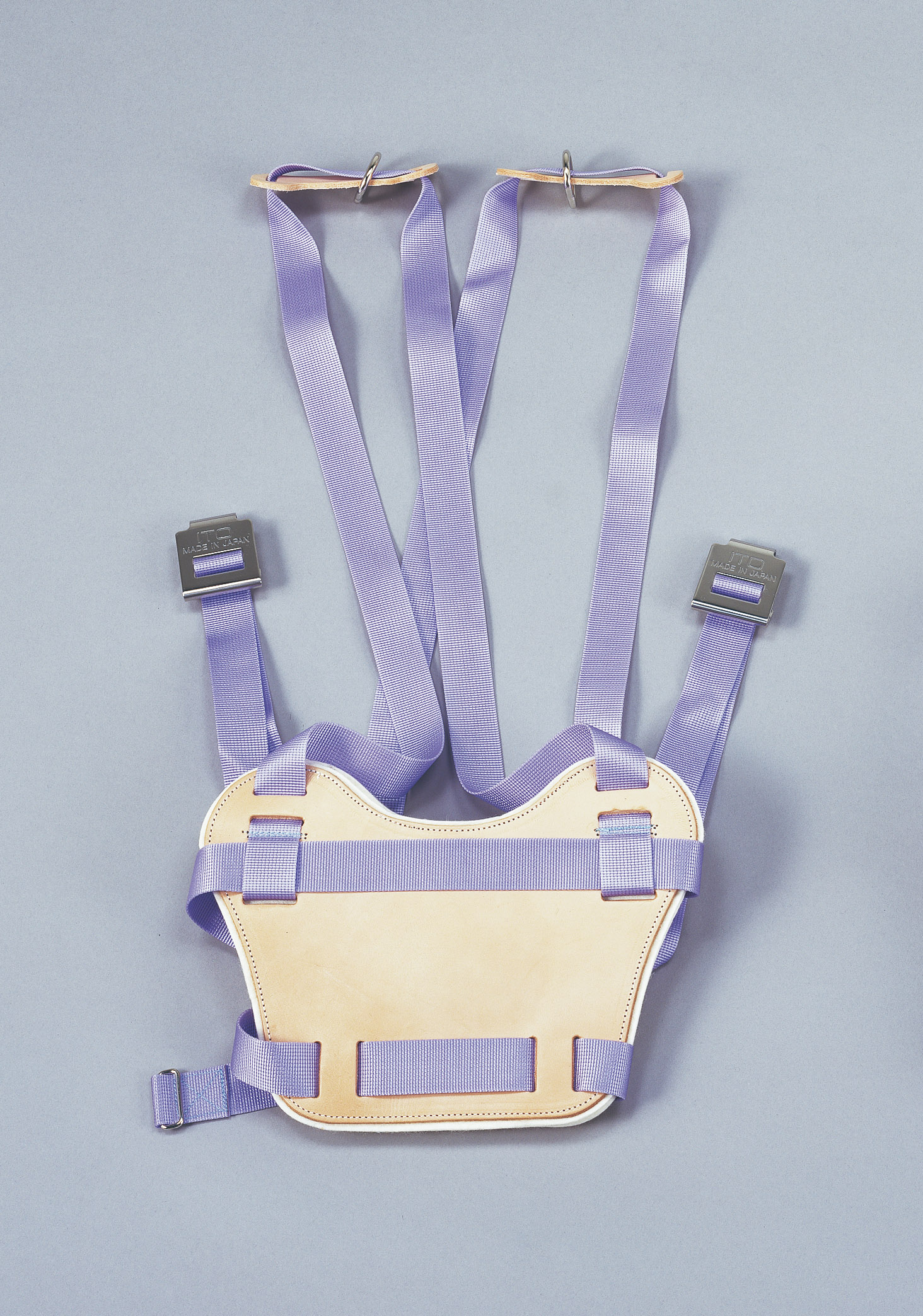

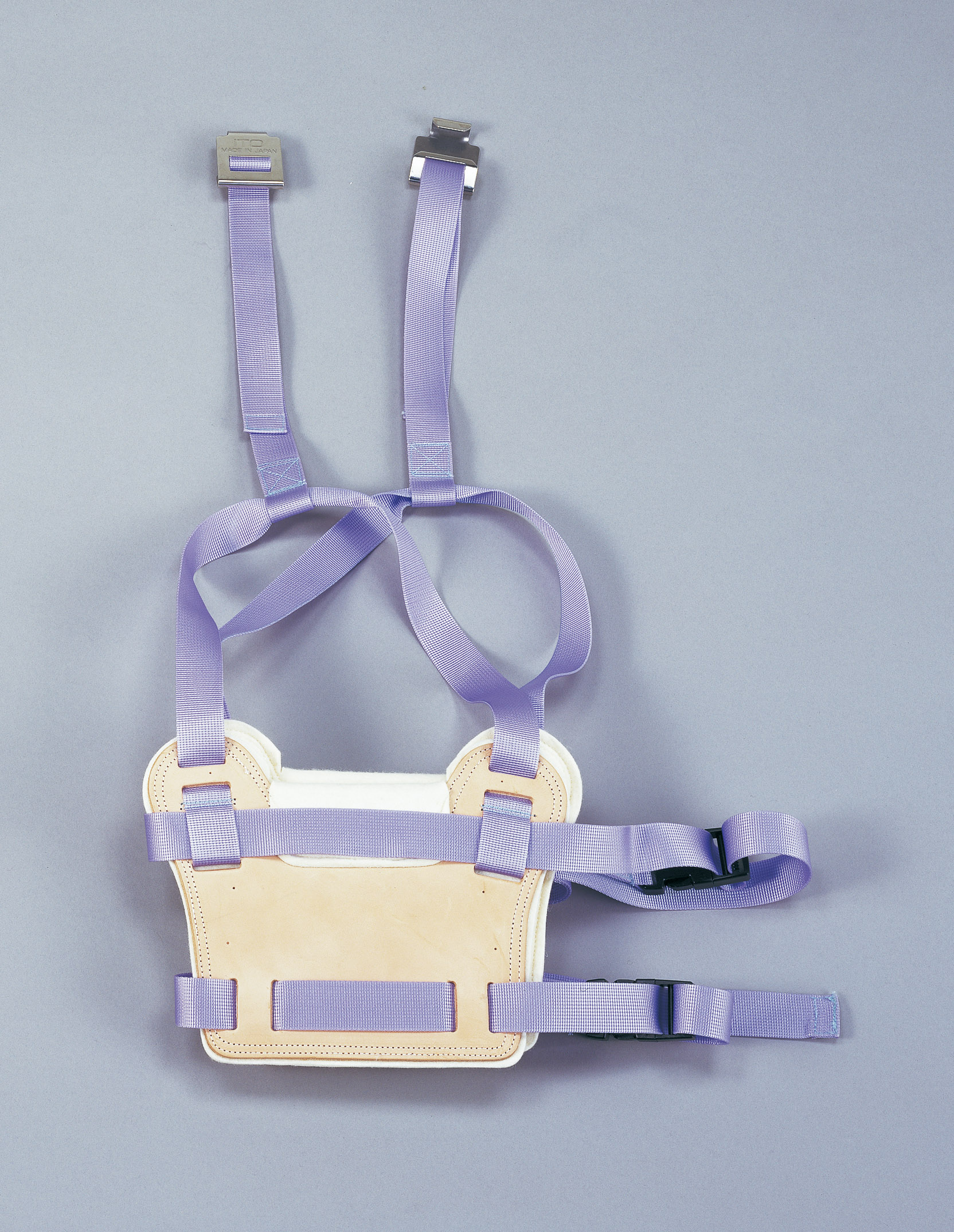

VARIOUS TYPES OF TRACTION HARNESSES CAN BE SUPPLIED

Various type of traction harnesses and its accessories available TM-400 to suit the treatment on each part of body; cervical, pelvic and thoracic area.

MULTI LANGUAGES

You can select language from English, German, French, Italian, Spanish, Portuguese, Danish, Dutch, Swedish & Chinese.

TWO VALUES DISPLAYED ON THE SAME SCREEN

As both the set value and the actual value of traction force are displayed on the same screen during treatment, you can visually check if the traction unit works properly and safely.

PATIENT SWITCH FOR SAFETY

Patient Switch is of course supplied with main unit as standard accessory for safe treatment.

Specifications

Power supply	AC 100–240 V, 50/60 Hz
Power consumption	75 VA
force range	High 1–90 kg (198 lbs) ± 3 kg Low 0–89 kg (197 lbs) ± 3 kg
time range	Hold 0–99 sec. Rest 0–99 sec.
Number of ramp steps	2–9 steps
Pause time of each ramp step	2–20 sec.
Memorable program numbers	30
Traction mode	Intermittent, Static, Progressive / intermittent, Progressive / static, Progressive / regressive, Cyclic / intermittent, Cyclic / static, Cyclic
Timer	1–99 min.
Safety class according to IEC 60601-1	Class I, Type B
Display size	116 (W) x 87 (H) mm
Dimensions	260 (W) x 350 (D) x 295 (H) mm
Weight	Approx. 14 kg
