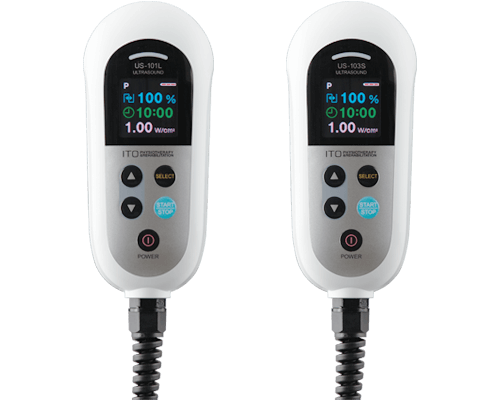

US-101L / US-103S

Palm-sized Ultrasound US-103S with Standard Acc.

SKU: US-103S Categories: Physiotherapy Division, Physiotherapy Equipment Brand: Ito Co Ltd. Brand: Ito Co Ltd.

Description
Reviews (0)

Features

PORTABILITY

As the weight of these units is less than 200 g and the unit size is very compact, you can easily bring them anywhere you like.

ONE-HAND OPERATION

You can focus on treatment as you do not need to look away to change intensity. Thus, this feature contributes to safe treatment with easy operation.

WATERPROOF

US-101L and US-103S are particularly popular at outdoor sports events.

LOW BNR

BNR is one of the indications for quality of the ultrasound beam. The BNR of US-101L / 103S is 2.4 to 3.5 (IEC standards), a significantly low ratio. Low beam non-uniformity ratio prevents hot spots and tissue damages.

RECHARGEABLE BATTERY AVAILABLE (Optional)

You can use these units in the areas with unstable supply of electricity if you charge battery in advance.

Specifications

Power supply	AC 100-240 V, 50/60 Hz or Rechargeable Battery (optional)
Intensity (max.)	Continuous: 2.00 W/cm² ± 20% Pulsed: 3.00 W/cm² ± 20%
Ultrasound frequency	US-101L 1.0 MHz ± 10% US-103S 3.0 MHz ± 10%
Duty cycles	5%, 10%, 20%, 30%, 40%, 50%, 100%
Pre-set parameters (modifiable)	5
BNR US Probe head (IEC Standards)	US-101L 3.5 ± 30% US-103S 2.4 ± 30%
ERA US Probe head (IEC Standards)	US-101L 5.0 cm² ± 20% US-103S 0.5 cm² ± 20%
Timer	30 min. ± 1 min.
Safety class according to IEC 60601-1	Class I / Internally powered equipment, Type BF
Dimensions	US-101L 134 (H) x 59 (W) x 55 (D) mm US-103S 134 (H) x 59 (W) x 60.5 (D) mm
Weight	US-101L 200 g US-103S 190 g

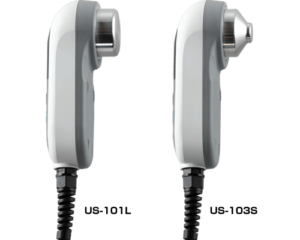

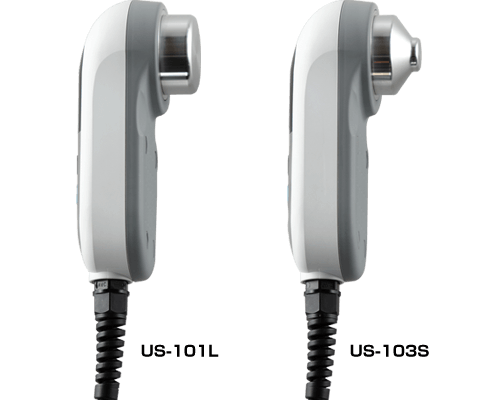

Probe head	US-101L 11 cm² US-103S 2 cm²
