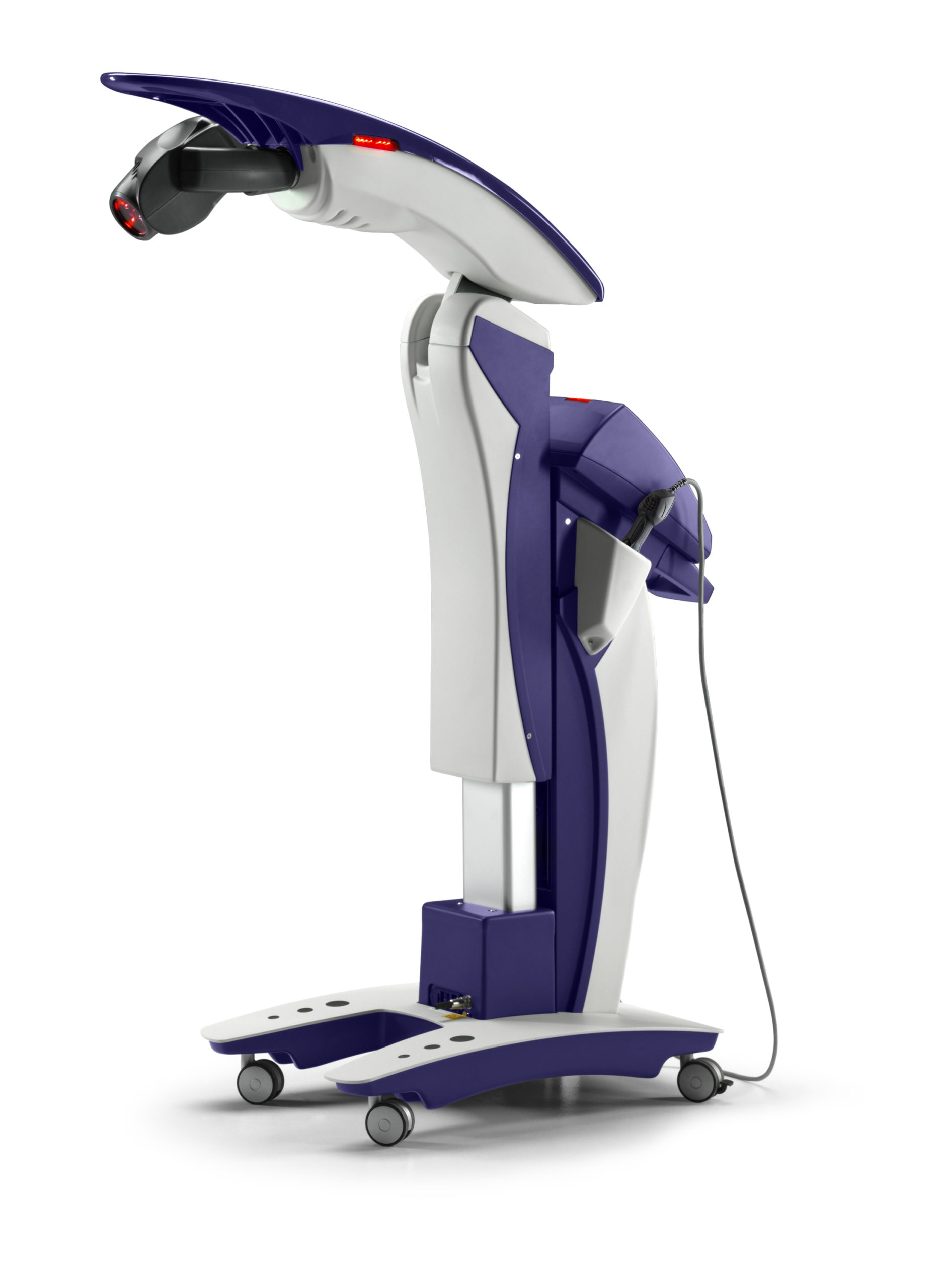

M6
Multi-target with automatic scan
Innovative. Automatic. Multitarget.
M6 enables the automatic delivery of MLS® Laser Therapy: the robotized head uniformly covers the entire target area and highlights multi-targets.
Treatment times are carefully calibrated to deliver the best possible energy dose to the tissue being treated.
MLS® robotised therapy

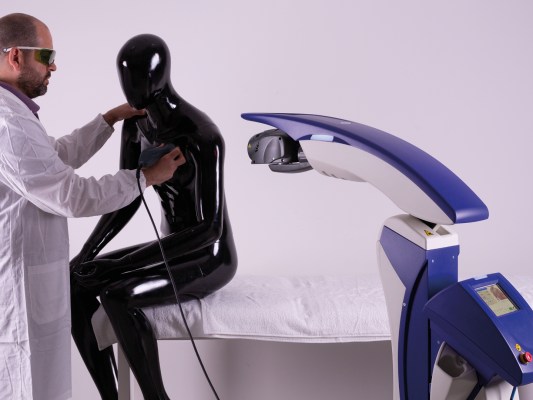

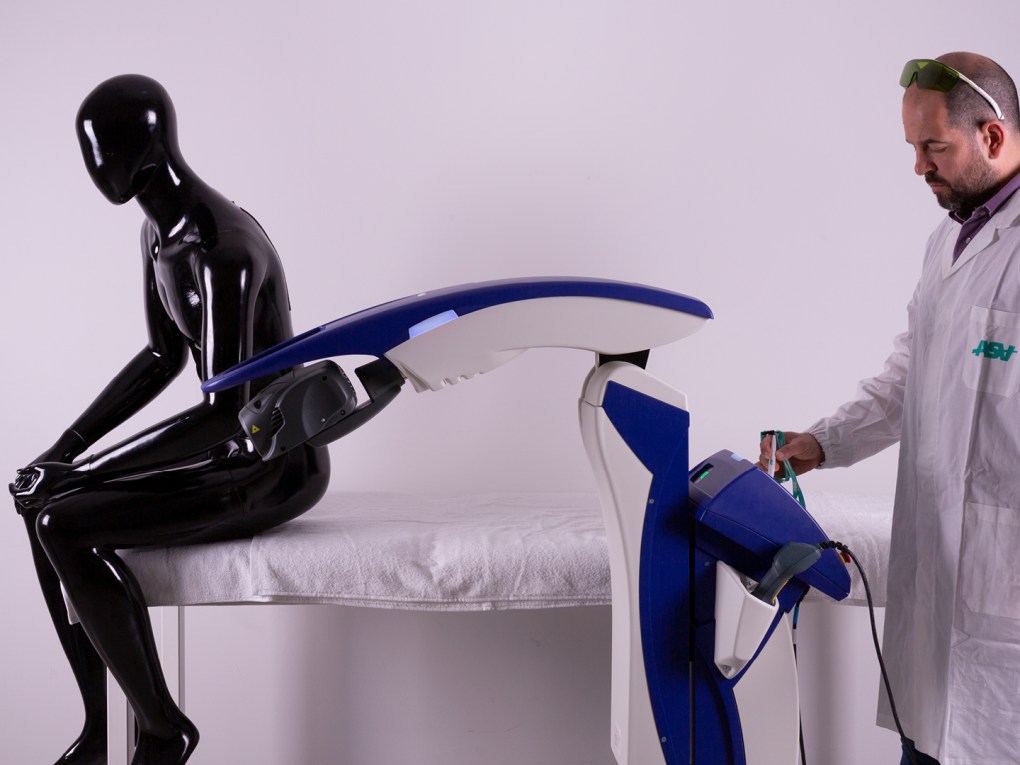

The wide range of movements enables the M6 to be adapted to the chosen course of treatment, allowing the patient to be treated in various positions, either sitting, lying down or at a distance, without risk of contamination.
Treating large areas
simultaneously

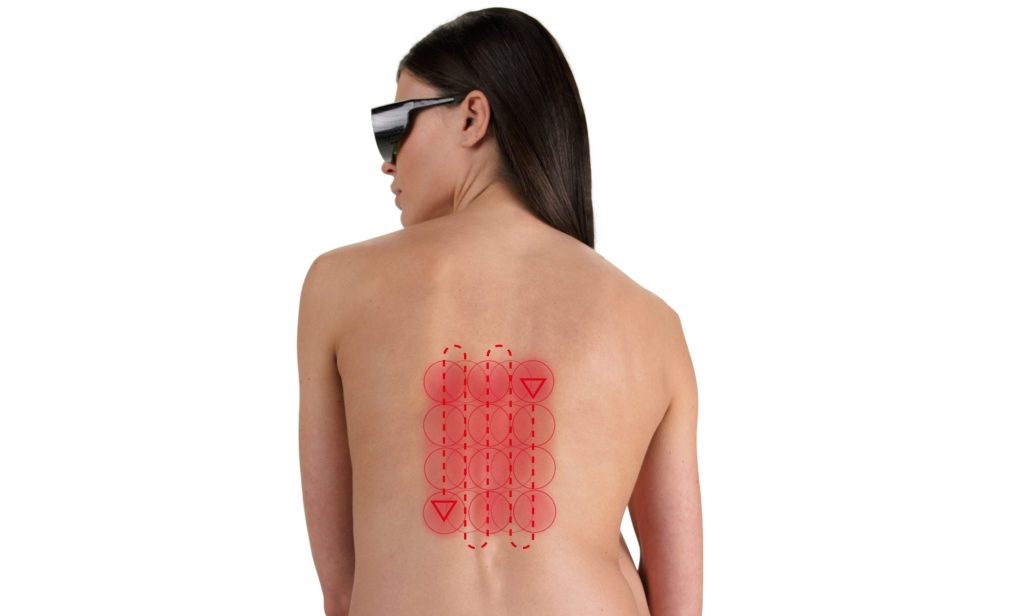

The multi-target application mode with bustrophedic (bi-directional) scanning, the “Greek” way, allows large areas of tissue to be treated rapidly and uniformly.
Technical characteristics

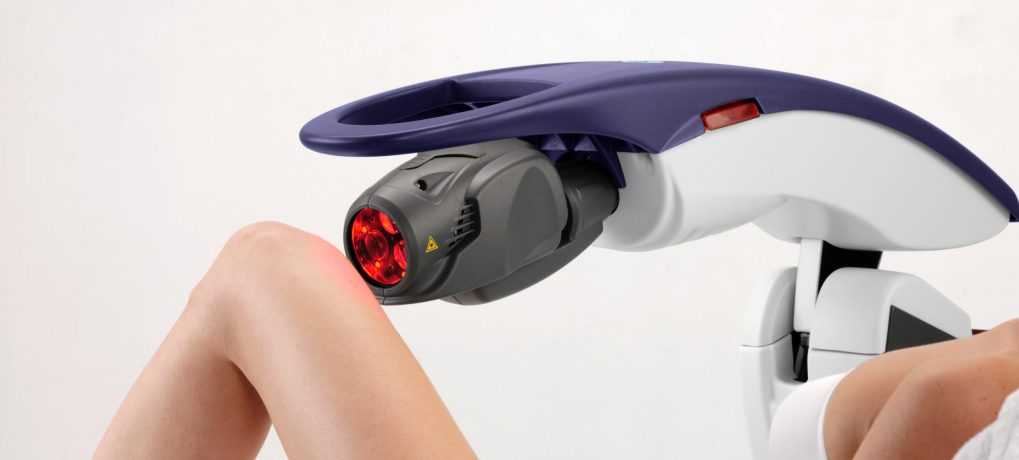

- Robotized optical group with 3 MLS® sources with power up to 3.3 W – Peak Power 3 x 25 W
Target Area ø 5 cm highlighted by high-efficency red-light LEDs - Handpiece with optical group composed of MLS® with power up to 1.1 W – Peak Power 25 W
Target Area ø 2 cm highlighted by high-efficency red-light LEDs - High resolution LCD color touch screen user interface
- Simultaneous management of two independent channels
- 4 treatment modalities:
A) specific pathologies
B) pain management
C) anti-edema
D) biostimulation - Possibility to customize every treatment parameters

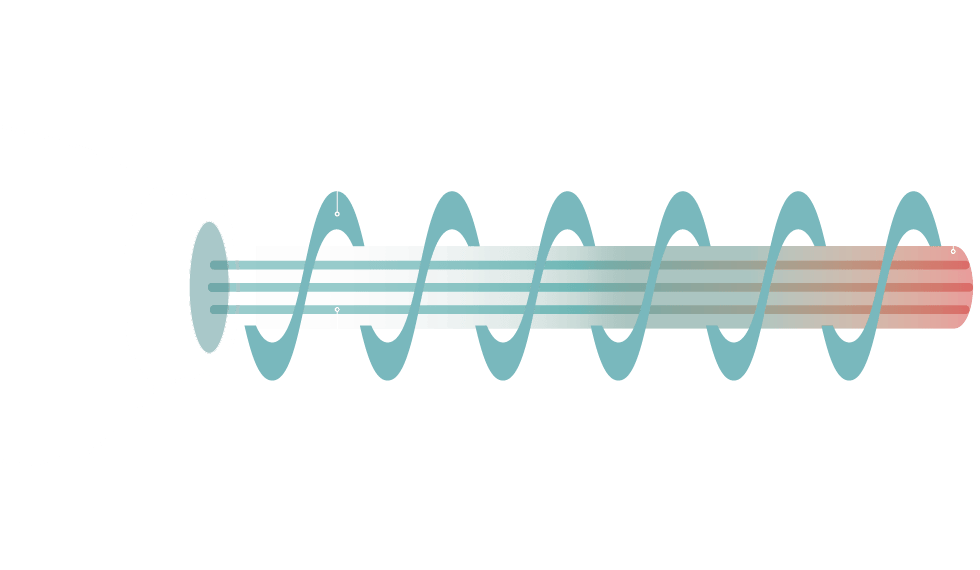

- MLS® modulation in CPW and FPW mode (Synchronized emission of Continuous Pulsed Waves and Frequenced Pulsed Waves)
- Modulation frequency from 1 to 2000 Hz with 1 Hz steps
- Power level 25%, 50%, 75% and 100%
- Fixed duty cycle at 50% or variable
- Treatment duration from 1” to 99’59” with 1” steps
- Automatic calculation of the emitted energy according to the settled parameters
ALARMS AND SAFETY FEATURES
- Laser emission warning light
- Interlock
- Acoustic signal selectable by operator
- Date and time
- Password to operate the device
- Language option
- Ready to be connected to the remote laser emission signaling device
INCLUDED ACCESSORIES
- Nº 2 Laser Safety goggles
SIZE AND WEIGHT
- 106 x 43 x 154 cm
- 43 Kg
POWER SUPPLY
-
- 85/110VA 100/240Vdc
“My trump card”
“Every day I come to work and I feel I have my trump card with me. The more we offer patients this therapy, the more there are patients who want it. We are getting increasingly positive responses from patients and the way we are practicing orthopaedics has changed”.
Dr. Ronald Lederman – Orthopedic Surgeon
Lederman Kwartowitz Center for Orthopedics & Sport Medicine – Michigan, USA
MLS® Laser Therapy
MLS® Laser Therapy comes from ASA’s scientific research to overcome the limits of traditional laser therapy and at the same time to exploit the advantages of low and high power through a patented quality impulse.
