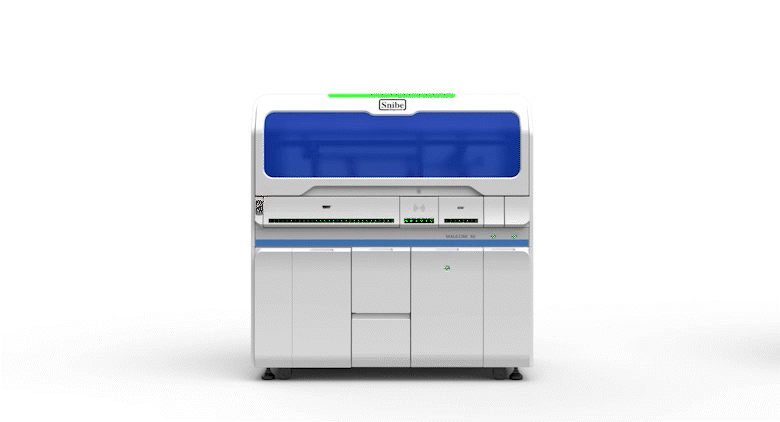

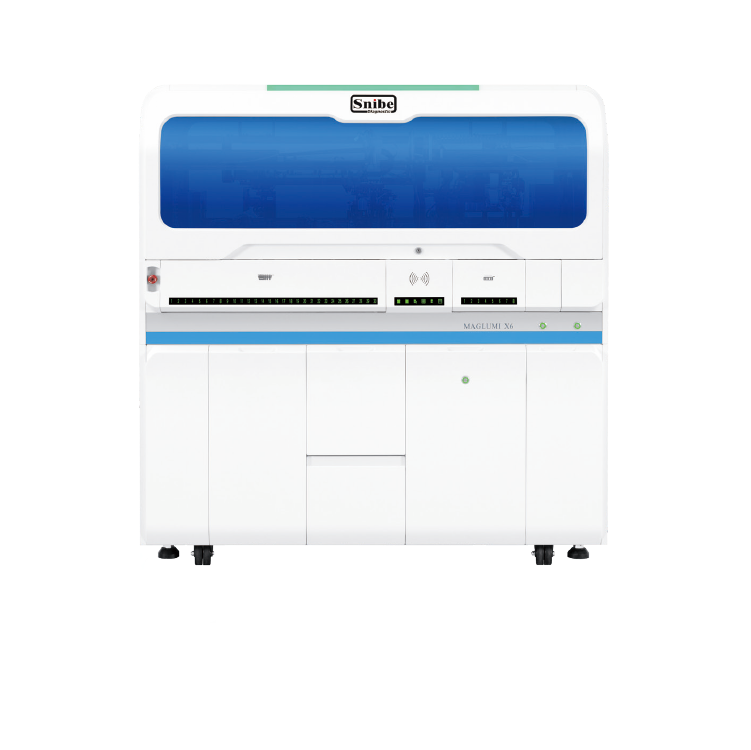

MAGLUMI X6
High-performance automated CLIA analyzer delivering up to 450 tests/hour with 30 refrigerated reagents, 112 continuous sample positions, automatic wash liquid preparation, and single reaction cup architecture.
High-speed analytical capacity delivering the first result in 15 minutes for medium to high-volume clinical laboratories.
30 on-board refrigerated positions (2–8°C) with continuous loading and contactless RFID inventory management.
Automated on-board mixing and dilution of concentrated wash buffer, eliminating daily manual buffer handling.
Precision single-cup reaction module avoids cross-contamination and simplifies mechanical transfer mechanics.
Optimal Speed, Capacity, and Workflow for Modern Diagnostic Centers
The MAGLUMI X6 is an advanced, high-efficiency chemiluminescence immunoassay analyzer tailored for medium-to-large clinical laboratories that require high throughput without the massive physical footprint of floor-standing industrial systems. Delivering up to 450 tests per hour, the X6 combines Snibe’s proprietary X-TECH innovations with exceptional walkaway flexibility.
The MAGLUMI X6 introduces intelligent operator-centric automation, including automatic wash buffer preparation from concentrate, a continuous loading cuvette module, and a 112-sample capacity rack feeder with emergency STAT prioritization. Powered by non-enzymatic ABEI flash chemiluminescence, the X6 provides stable calibrations, extensive reagent on-board stability, and access to over 200 validated diagnostic parameters.
Extensive Diagnostic Test Menu
Cardiac & Vascular Emergency
hs-cTnI, NT-proBNP, BNP, D-Dimer, CK-MB, Myoglobin, and H-FABP for rapid emergency triage.
Thyroid & Metabolic Hormones
TSH, FT4, FT3, TT4, TT3, TG, Anti-TG, Anti-TPO, TRAb, Cortisol, ACTH, and C-Peptide.
Tumor Markers & Oncology
AFP, CEA, Total PSA, Free PSA, CA 125, CA 15-3, CA 19-9, HE4, CYFRA 21-1, and ProGRP.
Fertility & Prenatal Screening
AMH, β-HCG, FSH, LH, Prolactin, Estradiol, Progesterone, Testosterone, DHEA-S, and 17-OHP.
Infectious Markers & Sepsis
Procalcitonin (PCT), Interleukin-6 (IL-6), hs-CRP, SAA, Hepatitis B/C/D markers, HIV, and Treponema pallidum.
Bone & Mineral Metabolism
25-OH Vitamin D, intact PTH, Osteocalcin, β-CTX, Ferritin, Folate, and Vitamin B12.
Technical Specifications
| Test Principle | Flash Chemiluminescence Immunoassay (CLIA) with ABEI label & magnetic microbeads |
| Throughput | Up to 450 tests/hour |
| Time to First Result | 15 minutes |
| Reagent Positions | 30 on-board refrigerated positions (2–8°C) with continuous loading |
| Reagent Identification | RFID contactless barcode reading with automatic parameter loading |
| Sample Capacity | 112 samples on-board with continuous loading |
| STAT Management | Dedicated STAT lane with immediate prioritization |

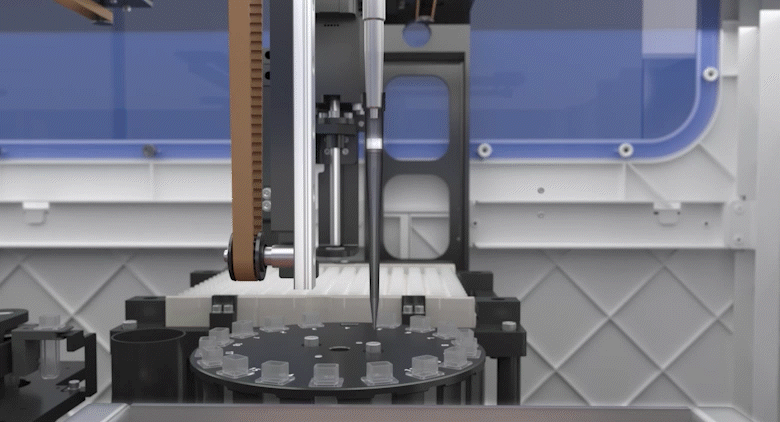

| Pipetting System | Titanium needle with liquid level detection, clot detection & crash sensor |

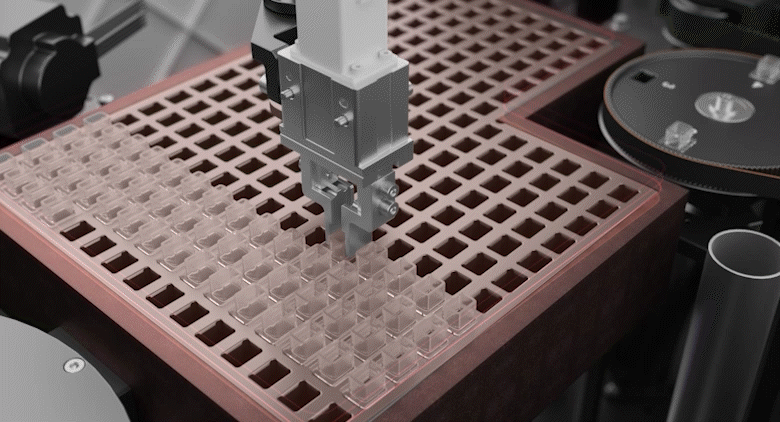

| Reaction Module | Single reaction cup design with automated continuous cuvette loader |
| Wash Preparation | Automatic on-board wash liquid dilution from concentrate |
| Carry-Over Rate | < 0.1 ppm |
| LIS Connectivity | Bi-directional communication via ASTM and HL7 |
| Dimensions & Weight | 150 cm (W) x 105 cm (D) x 140 cm (H) | 380 kg |
| Power Supply | 100–240 VAC, 50/60 Hz | 1800 VA |
Clinical Laboratory Procurement & Support
Supplied and supported by Beamed Trading with complete biomedical certification, staff application training, factory warranty, reagent supply agreements, and 24/7 technical hotline support.
