The next radial shock wave generation.

The new MASTERPULS^® »ultra« line stands out because of its technological innovations, reliability and precision down to the last detail. The enlarged energy range of the »FALCON« handpiece and the versatile transmitters extend the lead in radial shock wave therapy.

Key Facts

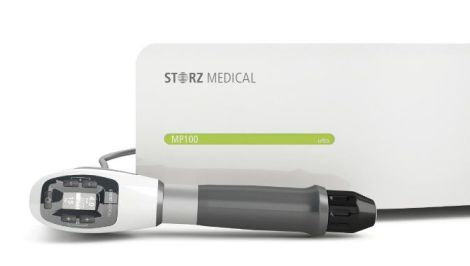

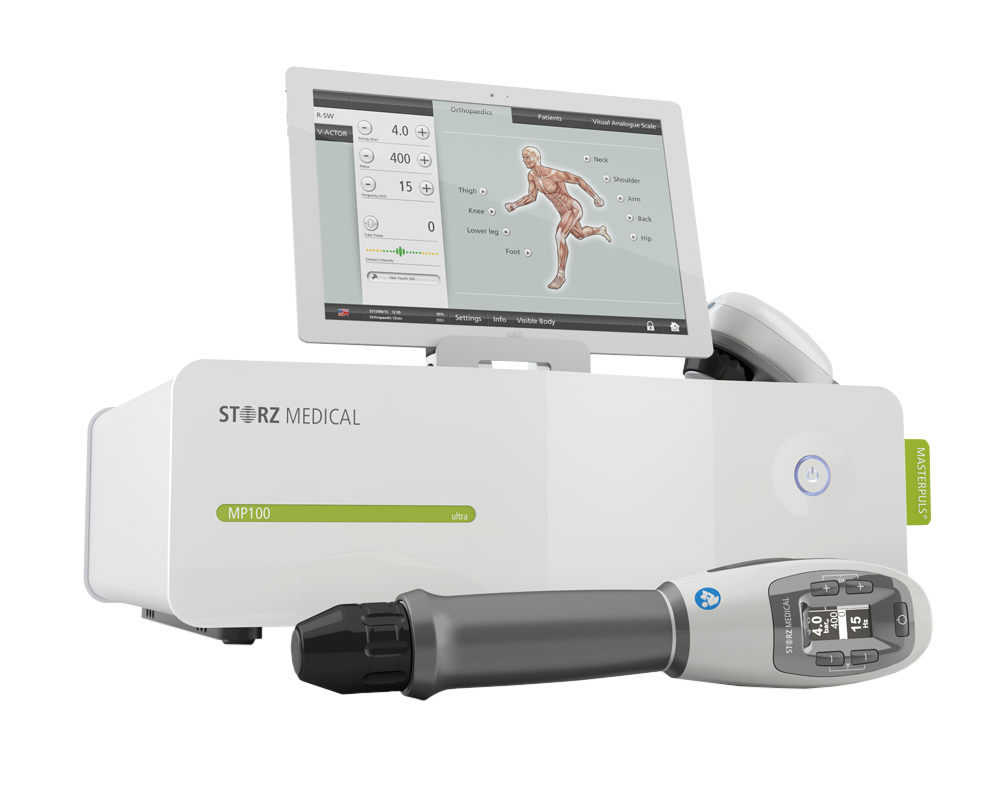

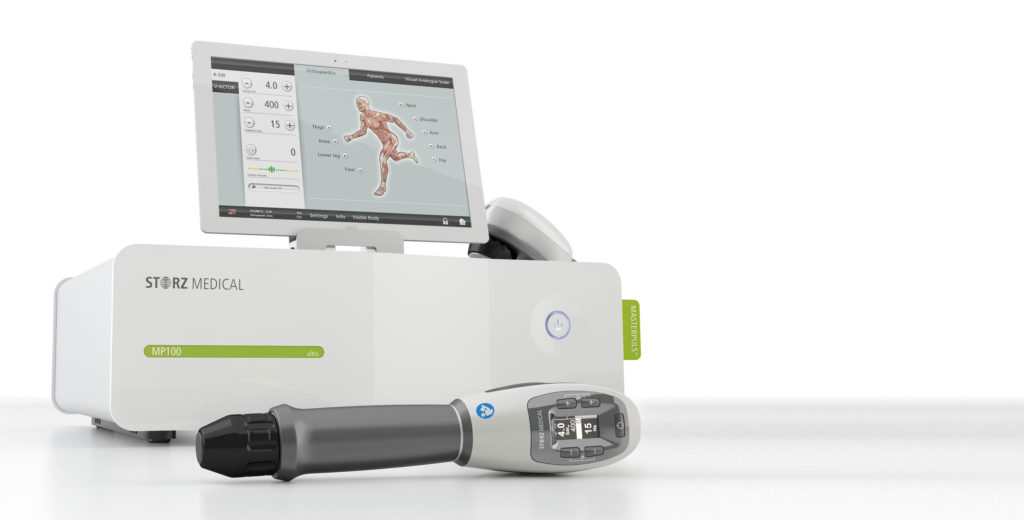

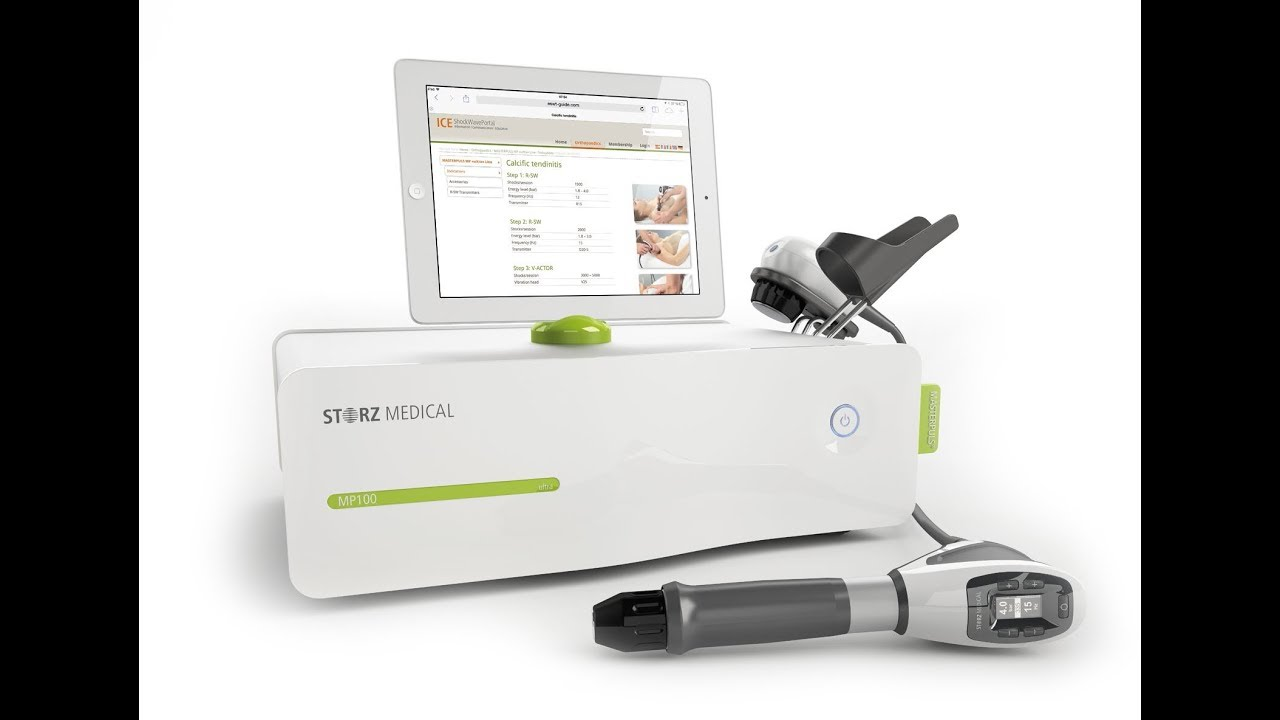

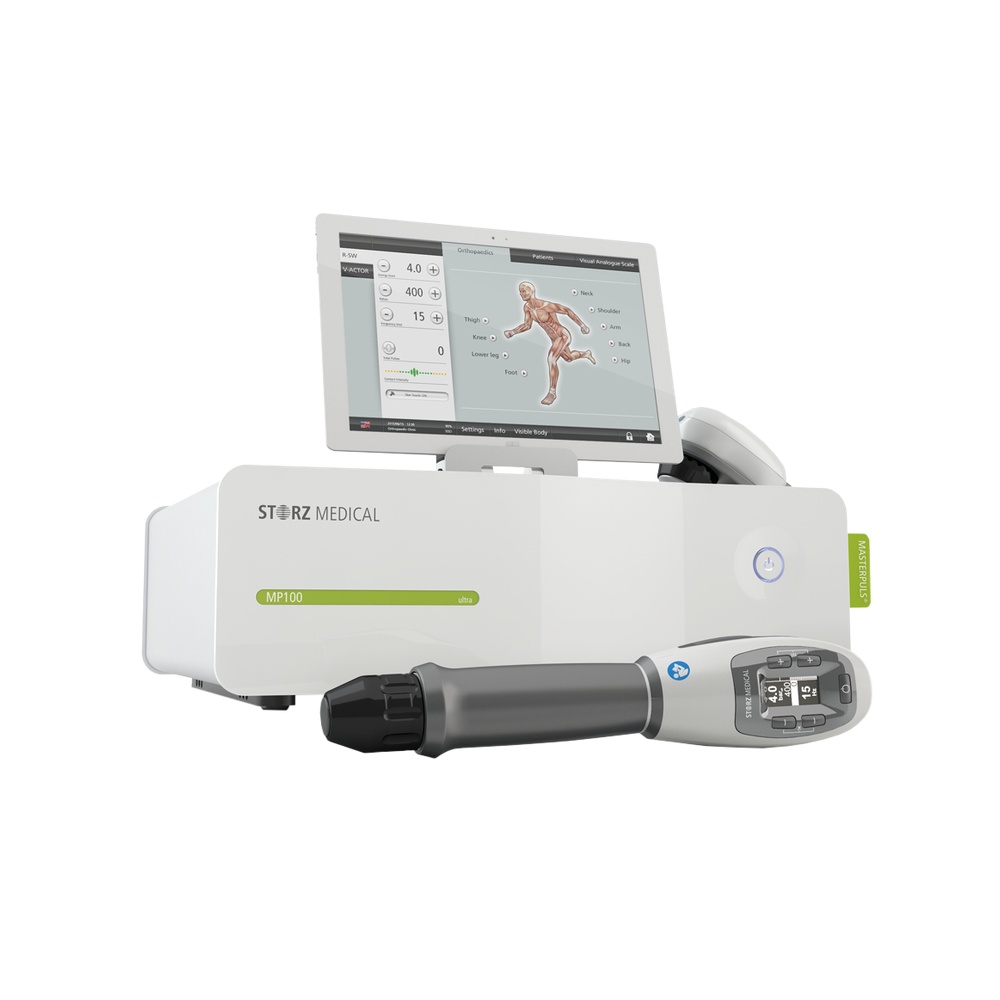

MASTERPULS^® MP100 »ultra«
High-energy compact module

General data

• Dimensions without touch screen (W x H x D): 426 x 144 x 340 mm
• Weight: 10.5 kg
• Compressor, integrated
• 10” touch screen (optional)

Radial shock wave

• Pressure: max. 5 bar_eff, frequency: 1 – 21 Hz (depending on pressure)
• »Skin Touch« function
• V-ACTOR^® handpiece (optional): 1 – 31 Hz

MASTERPULS^® MP200 »ultra«
Triple technology »Deluxe« module

General data

• Dimensions without touch screen (W x H x D): 466 x 187 x 454 mm
• Weight: 23 kg
• Compressor, integrated
• 10” touch screen (optional)

Radial shock wave

• Pressure: max. 5 bar_eff, frequency: 1 – 21 Hz
• »Skin Touch« function
• VACU-ACTOR^® technology
• V-ACTOR^® handpiece (optional): 1 – 35 Hz

MASTERPULS^®  MP100 & MP200 »ultra« – The New Radial Shock Wave Generation

The radial shock wave systems of the MASTERPULS^® »ultra« line are characterized by their compact dimensions, high reliability, low maintenance costs and silent on-board »Air Power« drive. Radial shock wave therapy and V-ACTOR^® vibration therapy with the MASTERPULS^® MP200 »ultra« are complemented by VACU-ACTOR^® vacuum therapy.

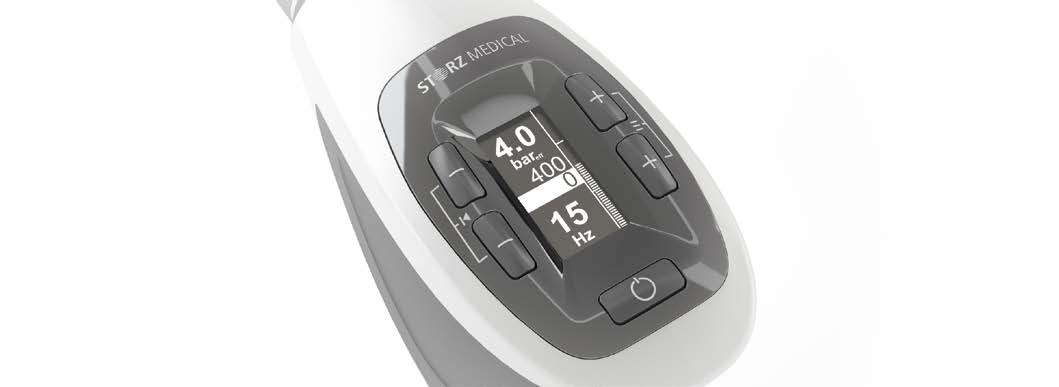

Unique ergonomic design: All important control elements are integrated into the »FALCON« handpiece display and, thus, facilitate uninterrupted and quick treatment directly at the patient. The shock wave device itself becomes less important.

The MASTERPULS^® »ultra« fits into every surgery and its colour can be adapted individually to the surgery surroundings. The exchangeable coloured accessories are available in green, blue, orange, and black.

Highlights

• Individual choice of colour (green, blue, orange, black)
• Effective and non-tiring treatment directly at the patient
• All control elements integrated into the »FALCON« handpiece
• Energy range from 0.3 bar_eff
• VACU-ACTOR^® vacuum therapy (MP200 »ultra« only)
• VACU-Cups for vacuum therapy, available in 4 sizes
  (Ø 25 mm, Ø 33 mm, Ø 47 mm, Ø 62 mm)
• Optional operation via 10” touch screen

Radial shock wave therapy with »FALCON« R-SW handpiece        Vibration therapy with V-ACTOR^® handpiece                                  Vacuum therapy with VACU-ACTOR^®

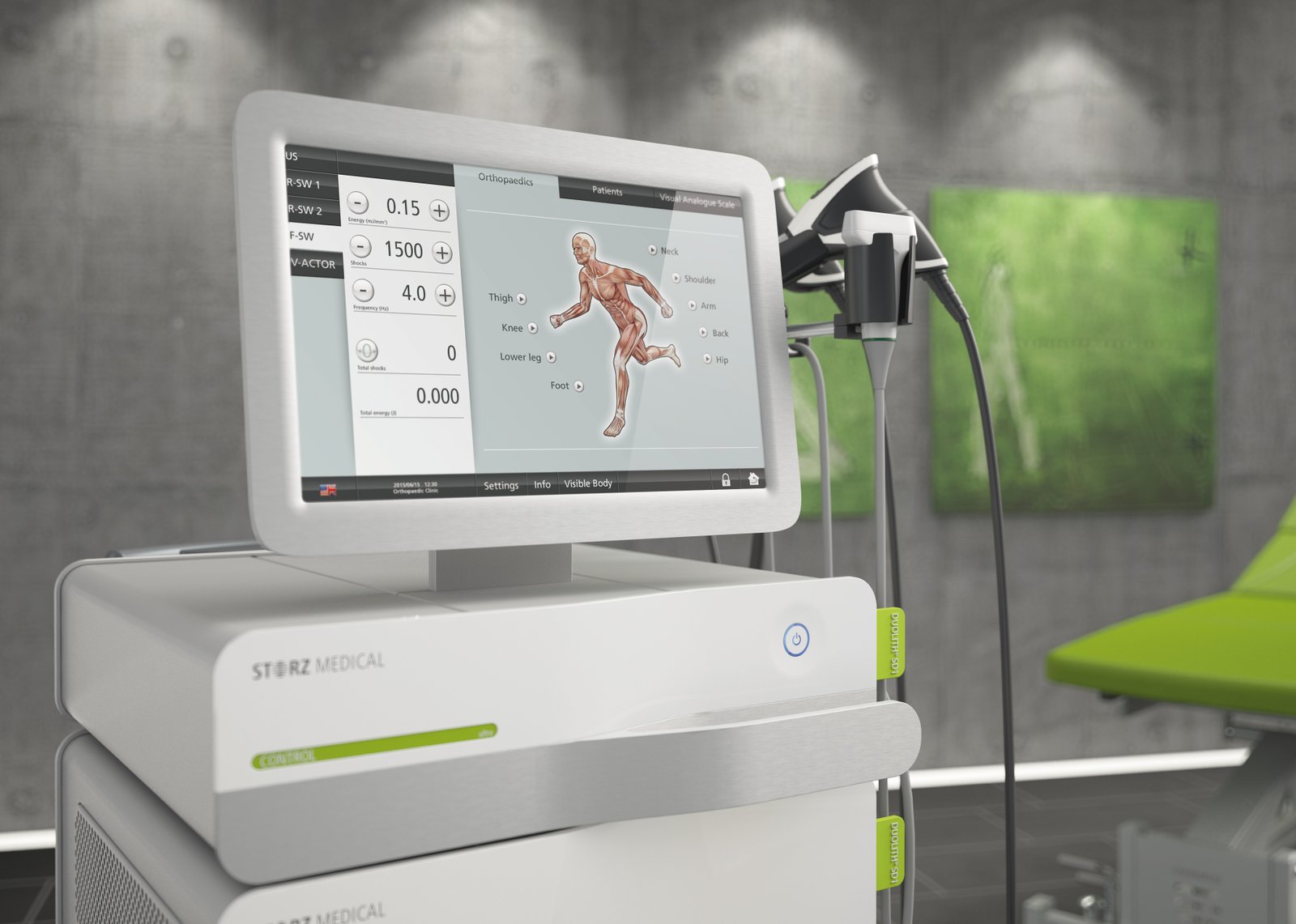

Touch Screen Panel

The ideal add-on to the MASTERPULS^® »ultra«

The optional 10” touch screen panel is connected with a USB cable to the shock wave device and adds on valuable features: Apart from the additional device control it offers a patient management system as well as treatment parameters recommended by experienced users and supported by videos and images. These parameters can be selected and adopted. The integrated Visible Body® software allows the user to immerge deeply into the anatomic structures of the human body.

Highlights

• 10” touch screen panel (optional)
• Patient management system with treatment history
• Treatment parameters supported by videos and images
• Visible Body^® digital anatomy atlas

Touch screen – treatment parameters with application videos / Touch screen – overview of pain zones / Touch screen – Visible Body^® digital anatomy atlas
