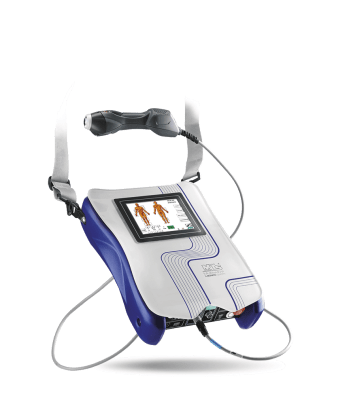

Mphi
Always with you
MLS® Laser Therapy: available everywhere.
Easy to transport, ergonomic, easy to use, intuitive: a new opportunity for making the beneficial effects of MLS® Laser Therapy available everywhere, in your clinic or at patient’s home. Completely independent, provided with lythium battery, with moderate dimensions and weight. Mphi is equipped with an innovative backlit color graphic touch-screen display that interacts with the operator in an intuitive manner.
The synchronised action, specific of MLS® Laser Therapy, administered by Mphi, allows obtaining a complex and refined light pulse capable of transferring the light energy to the anatomical structures targeted by the therapy with great efficiency. The patient can thus overcome the acute phase of pain quickly and lastingly, effectively promoting functional recovery.
Technical characteristics
-
- Handpiece with optical group composed of MLS® source power up to 1.1 W – Peak Power 25 W
- Target Area ø 2 cm highlighted by high-efficiency red lights LEDs
- High resolution LCD color touch screen user interface
- Simultaneous management of two independent channels
- 4 treatment modalities:
A) specific pathologies
B) pain management
C) anti-edema
D) biostimulation - Possibility to customize each treatment parameters
- MLS® modulation in CPW and FPW mode (Synchronized emission of Continuous Pulsed Waves and Frequenced Pulsed Waves)
- Modulation frequency from 1 to 2000 Hz with 1 Hz steps
- Power level 25%, 50%, 75% and 100%
- Fixed duty cycle at 50% or variable
- Treatment duration from 1” to 99’59” with 1” steps
- Automatic calculation of the emitted energy according to the settled parameters
- Password to operate the device
- Language option
- Ready to be connected to the remote laser emission signaling device
INCLUDED ACCESSORIES
- N° 2 Laser Safety Goggles
- Unit carrying case

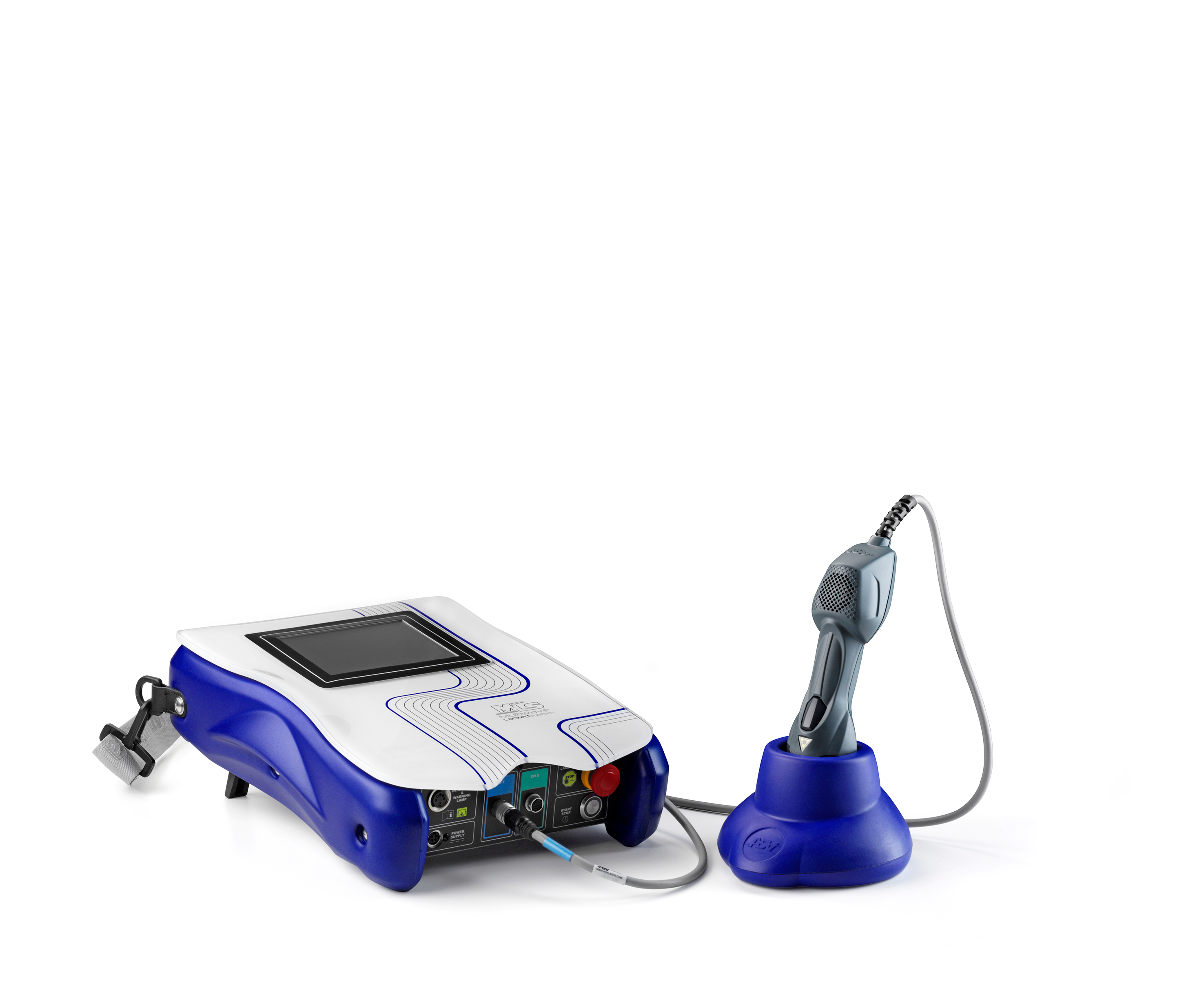

- Table handpiece holder
- Shoulder strap for portable use
OPTIONAL ACCESSORIES

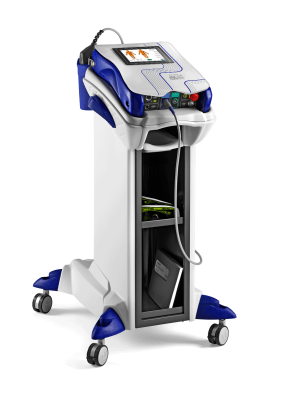

- Trolley-Ergonomic trolley designed for holding Mphi, with bumper-protected wheels, a built-in handpiece holder and two storage compartments
SIZE AND WEIGHT
- 36 x 28 x 10 cm
- 3 Kg
POWER SUPPLY
- Lithium polymer battery
- External power supply 18Vdc 50VA
MLS® Laser Therapy
MLS® Laser Therapy comes from ASA’s scientific research to overcome the limits of traditional laser therapy and at the same time to exploit the advantages of low and high power through a patented quality impulse.
