ITO OSTEOTRON IV – Dual-Channel Low-Intensity Pulsed Ultrasound (LIPUS) Bone Growth Stimulator

★ Ito Co Ltd. Partner● In Stock & Demo ReadyCE & ISO Certified

ITO OSTEOTRON IV – Dual-Channel Low-Intensity Pulsed Ultrasound (LIPUS) Bone Growth Stimulator

Name: ITO OSTEOTRON IV – Dual-Channel Low-Intensity Pulsed Ultrasound (LIPUS) Bone Growth Stimulator
Brand: Ito Co Ltd.
SKU: BT-PROD-68360
Availability: InStock

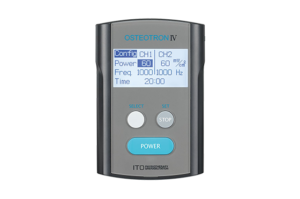

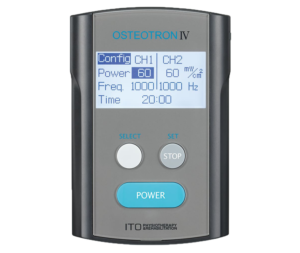

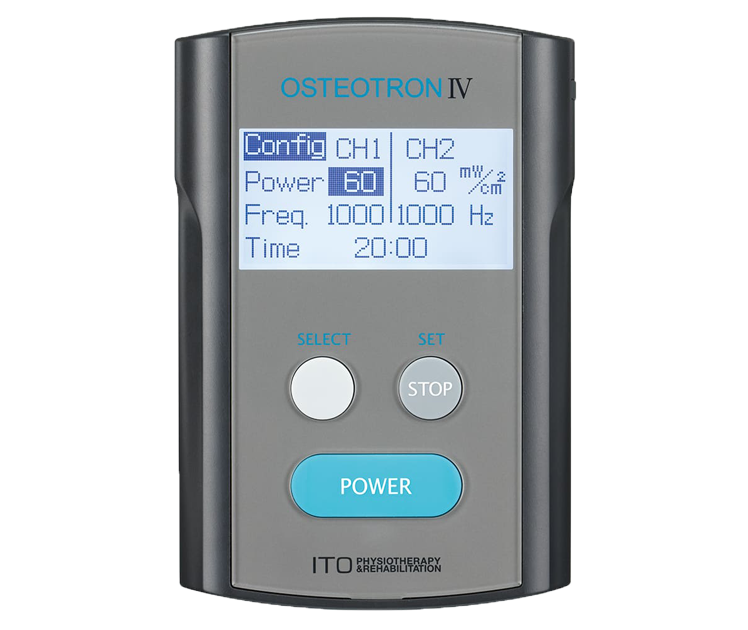

Dual-Channel Low-Intensity Pulsed Ultrasound (LIPUS) Bone Growth Stimulator. The ITO OSTEOTRON IV is an advanced, portable non-invasive medical device engineered to accelerate bone fracture union. Utilizes low-intensity pulsed ultrasound (30 mW/cm² at 1.5 MHz and 750 kHz) with 2 independent output channels, allowing simultaneous bilateral or dual-site treatment. Clinically proven in multi-center clinical trials to reduce fresh fracture healing time by up to 38% and resolve chronic non-unions without surgery. Compact, battery-operated, and certified CE Class IIa. Backed by a 2-year warranty from Beamed Trading.

🔹 Ito Co., Ltd. (Tokyo, Japan) ⚡ Low-Intensity Pulsed Ultrasound (LIPUS) 🔹 2 Output Channels 🔹 1.5 MHz & 750 kHz 🔹 30 mW/cm² (Low-Intensity Acoustic) 🔹 CE Marked Class IIa, ISO 13485, Japan PMDA 🔌 2-Year Comprehensive Warranty backed by Beamed Trading

🛡️

Authorized Distributor

Direct factory warranty & manufacturer support

🎓

Clinical Training

On-site doctor & biomedical certification

🚚

Hospital Logistics

Regional setup, delivery & calibration

📋

24h Tender Pack

Comprehensive quote & technical specs

Categories: Physiotherapy Division, Physiotherapy Equipment Brand: Ito Co Ltd. Brand: Ito Co Ltd.

JAPANESE MEDICAL ENGINEERING • ITO CO., LTD. (EST. 1910)

ITO OSTEOTRON IV: Clinical Low-Intensity Pulsed Ultrasound (LIPUS) Bone Healing System

Clinically proven to accelerate fresh fracture healing by up to 38% and treat delayed unions and non-unions, featuring dual output channels, 1.5 MHz & 750 kHz frequencies, and rechargeable battery operation.

HEALING ACCELERATION

Up to 38%

Clinically Proven in Trials

OUTPUT CHANNELS

2 Channels

Dual-Site / Bilateral

LIPUS FREQUENCY

1.5 MHz & 750 kHz

30 mW/cm² Low-Intensity

PORTABILITY

240 grams

Rechargeable Battery

• Mechanotransduction: Ultrasound-Induced Osteogenesis & Angiogenesis

Acoustic Mechanotransduction

LIPUS transmits non-thermal micromechanical acoustic pressure waves into bone tissue. Osteoblasts, osteocytes, and mesenchymal stem cells transduce these mechanical forces into biochemical signals via integrins and stretch-activated ion channels, upregulating COX-2, PGE2, and Runx2 expression.

Vascularization & Callus Mineralization

Stimulates VEGF (Vascular Endothelial Growth Factor) secretion, rapidly accelerating local capillary angiogenesis across the fracture gap. Enhances endochondral ossification, transforming soft fibrocartilage into hard mineralized bony callus.

Key Clinical Innovations & Advantages

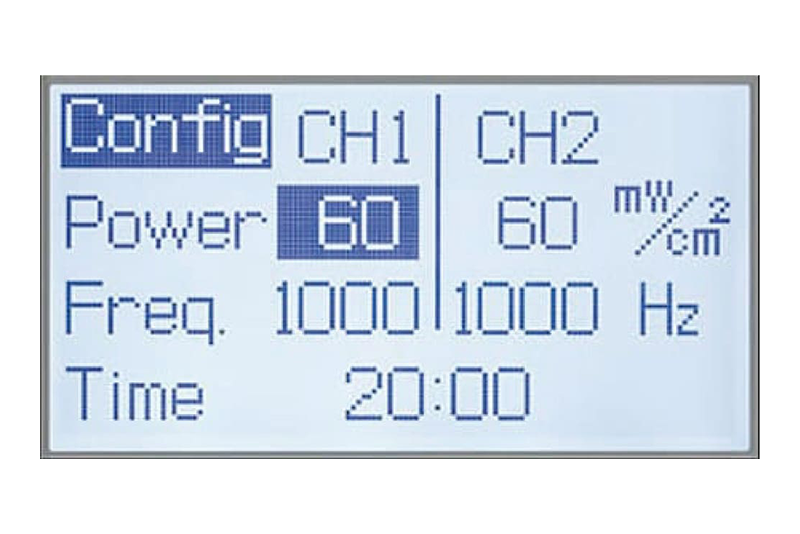

DUAL OUTPUT

2 Independent Channels

Features two probe ports to treat multi-fragmented fractures or treat two different fracture sites simultaneously.

DEEP PENETRATION

750 kHz & 1.5 MHz Options

1.5 MHz is optimal for superficial fractures (fibula, radius, scaphoid), while 750 kHz delivers deep acoustic penetration for femur and deep pelvic non-unions.

HOME AMBULATION

20-Minute Daily Treatment

Patients undergo an easy, painless 20-minute daily session at home or in clinic with automatic timer shut-off.

SECURE FIXATION

Specialized Straps & Holders

Includes custom probe brackets that fasten securely over casting windows, orthotic splints, or external fixators.

Clinical Indications & Therapeutic Applications

Fresh Fractures

Distal Radius (Colles) Fractures
Tibial Shaft & Fibular Fractures
Scaphoid & Metatarsal Fractures
Femoral Neck & Clavicle Fractures

Complicated Healing

Delayed Union Fractures
Established Non-Union Fractures
Stress Fractures in Athletes
Osteotomy Site Consolidation

Orthopedic Surgery

Post-Arthrodesis Bone Fusion
Spinal Fusion Augmentation
Bone Graft Consolidation
Distraction Osteogenesis

Sports Medicine

Jones 5th Metatarsal Fracture
Tibial Stress Syndromes
Navicular Stress Fractures
Rapid Return-to-Play Protocols

Technical Specifications & Engineering Parameters

Parameter	Technical Specification
Manufacturer	Ito Co., Ltd. (Tokyo, Japan)
Channels	2 Output Channels
Ultrasound Frequencies	1.5 MHz & 750 kHz
Ultrasound Intensity (ISATA)	30 mW/cm² or 45 mW/cm² (Pulsed)
Duty Cycle	20% (200 µs on / 800 µs off at 1 kHz)
Treatment Timer	10, 20, or 30 minutes
Power Supply	Built-in Rechargeable Lithium-ion Battery or AC Adapter
Dimensions & Weight	98 × 145 × 32 mm \| Approx. 240 g
Clinical Efficacy	Up to 38% faster union in acute fractures; 85%+ non-union resolution
Regulatory Certification	CE Marked Class IIa Medical Device, ISO 13485, Japan PMDA
Regional Warranty	2-Year Comprehensive Manufacturer Warranty backed by Beamed Trading

Standard Components & Clinical Accessories

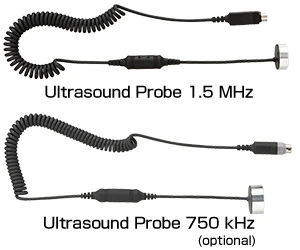

2x Dedicated LIPUS Probes with Cables
2x Probe Holding Brackets with Fastening Straps
Ultrasound Coupling Gel Bottle
AC Adapter & Battery Charger
Carrying Case
User Instruction Guide

Manufacturer	Ito Co., Ltd. (Tokyo, Japan)
Technology	Low-Intensity Pulsed Ultrasound (LIPUS)
Channels	2 Output Channels
Frequencies	1.5 MHz & 750 kHz
Intensity	30 mW/cm² (Low-Intensity Acoustic)
Medical Device Regulatory	CE Marked Class IIa, ISO 13485, Japan PMDA
Warranty & Regional Support	2-Year Comprehensive Warranty backed by Beamed Trading
