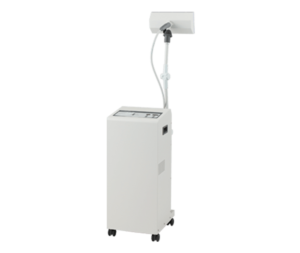

ITO PM-810+ – Continuous & Pulsed Deep Microwave Diathermy System

★ Ito Co Ltd. Partner● In Stock & Demo ReadyCE & ISO Certified

ITO PM-810+ – Continuous & Pulsed Deep Microwave Diathermy System

Name: ITO PM-810+ – Continuous & Pulsed Deep Microwave Diathermy System
Brand: Ito Co Ltd.
SKU: BT-PROD-68384
Availability: InStock

Continuous & Pulsed Clinical Microwave Diathermy Therapy System. The ITO PM-810+ operates at 2450 MHz to deliver focused, deep thermal energy directly into high-water-content muscular tissues without significant heating of subcutaneous fat. Features both continuous (up to 250W) and high-peak pulsed (up to 1500W) irradiation modes, specialized wide-field and focused circular radiators, and a counterbalanced articulated arm for effortless clinical positioning. Certified CE Class IIa with a 2-year warranty from Beamed Trading.

🔹 Ito Co., Ltd. (Tokyo, Japan) ⚡ Microwave Diathermy (MWD) 🔹 2450 MHz 🔹 Continuous (250W) & Pulsed (1500W Peak) 🔹 CE Marked Class IIa, ISO 13485, Japan PMDA 🔌 2-Year Comprehensive Warranty backed by Beamed Trading

🛡️

Authorized Distributor

Direct factory warranty & manufacturer support

🎓

Clinical Training

On-site doctor & biomedical certification

🚚

Hospital Logistics

Regional setup, delivery & calibration

📋

24h Tender Pack

Comprehensive quote & technical specs

Categories: Physiotherapy Division, Physiotherapy Equipment Brand: Ito Co Ltd. Brand: Ito Co Ltd.

JAPANESE MEDICAL ENGINEERING • ITO CO., LTD. (EST. 1910)

ITO PM-810+: Continuous & Pulsed Microwave Diathermy Therapy System

Operating at 2450 MHz with up to 1500W peak pulsed power and 250W continuous output, designed for targeted thermal penetration of deep muscular tissues with flexible articulated radiators.

OPERATING FREQ

2450 MHz

Microwave Band

PEAK PULSED POWER

1500 Watts

Deep Pulsed Thermal

CONTINUOUS POWER

250 Watts

Volumetric Heating

POSITIONING

Articulated Arm

Counterbalanced Reach

• Biophysical Mechanism: Selective Dielectric Muscular Heating

High-Water-Content Tissue Absorption

Microwave diathermy at 2450 MHz exhibits high absorption in tissues with high water and electrolyte content—specifically skeletal muscle and vascularized synovium—while experiencing minimal attenuation in low-dielectric adipose subcutaneous tissue.

Microvascular Vasodilation & Spasmolytic Effect

Rapid thermal elevation increases capillary filtration, promotes oxygen delivery, down-regulates muscle spindle sensitivity, and induces prompt spasmolysis in deep muscular trigger points.

Key Clinical Innovations & Advantages

HIGH OUTPUT

1500W Peak Pulsed Power

Enables deep therapeutic heating with minimal skin surface warmth, suitable for sensitive or subacute conditions.

CONTINUOUS HEATING

250W Continuous Mode

Robust power output for vigorous thermal relaxation of chronic fibrotic musculature and deep contractures.

SPECIALIZED RADIATORS

Focused & Wide-Field Horns

Interchangeable parabolic radiators allow targeted focal treatment on small joints or broad coverage over lumbar and gluteal zones.

SAFETY ARCHITECTURE

Patient Safety Cut-Off

Includes a handheld optical emergency switch that immediately cuts RF generation if the patient experiences excessive heat.

Clinical Indications & Therapeutic Applications

Muscular Spasms

Acute & Chronic Lumbago
Severe Trapezius Hypertonia
Piriformis & Gluteal Muscle Spasms
Hamstring & Gastrocnemius Contractures

Articular Conditions

Glenohumeral Osteoarthritis
Chronic Hip Capsular Tightness
Knee Joint Degenerative Disease
Cervical Facet Arthrosis

Subacute Inflammation

Subacute Bursitis & Tendinitis
Post-Traumatic Muscular Contusions
Chronic Sprains (Post-Acute Phase)
Periarthritis

Deep Tissue Healing

Localized Blood Perfusion Deficits
Fibrotic Muscle Adhesions
Chronic Myalgia
Scar Tissue Extensibility Improvement

Technical Specifications & Engineering Parameters

Parameter	Technical Specification
Manufacturer	Ito Co., Ltd. (Tokyo, Japan)
Operating Frequency	2450 MHz (± 50 MHz)
Output Power (Continuous)	Max. 250 W
Output Power (Pulsed)	Max. 1500 W (Peak)
Pulse Repetition Rate	Adjustable Pulsed Modes
Radiator Types	Circular Focused Radiator, Wide-Field Rectangular Radiator
Articulated Arm	Spring-Counterbalanced 3-Joint Positioning Arm
Timer	0 to 30 minutes with acoustic chime
Dimensions & Weight	400 × 440 × 850 mm \| Approx. 36 kg
Regulatory Certification	CE Marked Class IIa Medical Device, ISO 13485
Regional Warranty	2-Year Comprehensive Warranty backed by Beamed Trading

Standard Components & Clinical Accessories

Multi-Joint Counterbalanced Articulated Radiator Arm
Focused Circular Microwave Radiator with Protective Cone
High-Power RF Coaxial Cable
Patient Emergency Safety Cut-Off Switch
Power Cable
Optional: Wide-Field Rectangular Radiator

Manufacturer	Ito Co., Ltd. (Tokyo, Japan)
Technology	Microwave Diathermy (MWD)
Frequency	2450 MHz
Output Modes	Continuous (250W) & Pulsed (1500W Peak)
Medical Device Regulatory	CE Marked Class IIa, ISO 13485, Japan PMDA
Warranty & Regional Support	2-Year Comprehensive Warranty backed by Beamed Trading
