★ TecnoBody Partner● In Stock & Demo ReadyCE & ISO Certified

ProKin 252

Name: ProKin 252
Brand: TecnoBody
SKU: BT-PROD-67380
Availability: InStock

The world benchmark robotic platform for static and dynamic proprioceptive assessment and equilibrium rehabilitation. Features an electro-pneumatic motorized multiaxial plate with programmable instability levels and pelvic kinematic tracking for orthopedics, neurology, and sports biomechanics.

🏥 Physiotherapy Equipment 🏷️ TecnoBody 🛡️ Direct Factory Warranty 🎓 Clinical Training & Setup 📋 24h Tender Pack Ready

🛡️

Authorized Distributor

Direct factory warranty & manufacturer support

🎓

Clinical Training

On-site doctor & biomedical certification

🚚

Hospital Logistics

Regional setup, delivery & calibration

📋

24h Tender Pack

Comprehensive quote & technical specs

Categories: Motion Analysis, Physiotherapy Division, Physiotherapy Equipment Tags: Balance Assessment, Dynamic Stability, Kinematic Sensor, ProKin, Proprioception, TecnoBody Brand: TecnoBody Brand: TecnoBody

Description
Reviews (0)

Robotic Multiaxial Proprioception

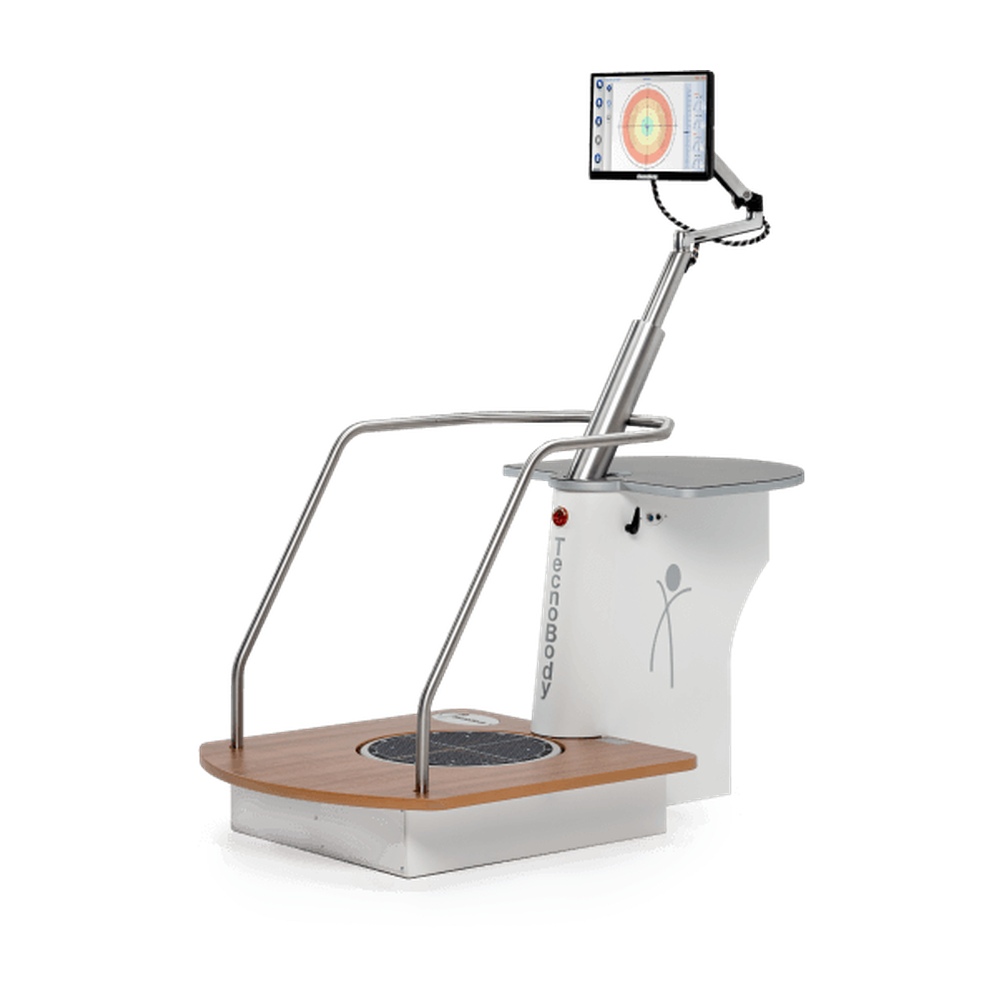

ProKin 252: The Gold Standard in Dynamic Balance & Proprioception

ProKin 252 is the premier robotic platform worldwide for proprioceptive assessment, balance training, and neuromuscular rehabilitation. Featuring an electro-pneumatically controlled multi-axis tilt plate with 50 programmable instability levels, ProKin allows clinicians to switch effortlessly between static posturography and dynamic multi-axial challenge, with real-time pelvic kinematic tracking.

Instability Control

50 Pneumatic Levels

Micro-regulated electronic pressure for fine-tuned joint stability training.

Pelvic Kinematic Sensor

Trunk Compensation

Evaluates compensatory hip and trunk sway during dynamic balance tasks.

Dual Functional Mode

Static & Dynamic

Measures Center of Pressure (CoP) displacement and dynamic angular tilt.

Standardized Testing

mCTSIB & Romberg

Automated sensory organization, fall risk, and monopodalic stability tests.

Technology & Hardware Architecture

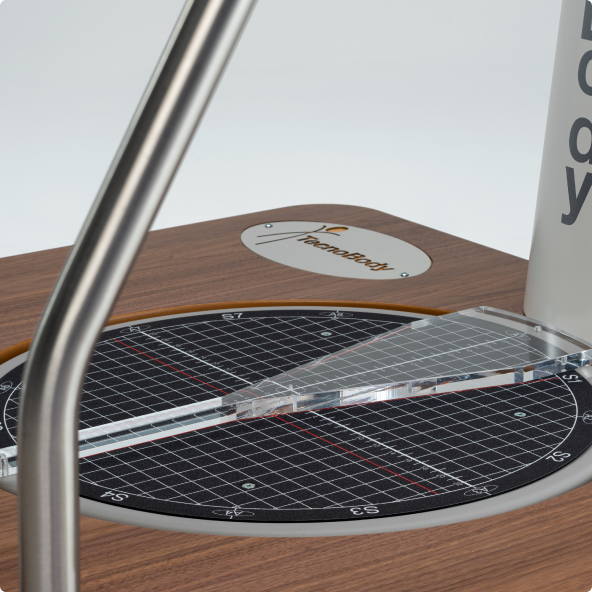

Pneumatic Actuation

Electronic Pressure Regulator

Microprocessor-controlled pneumatic proportional valves deliver 50 distinct instability levels, from maximum stability for acute post-op recovery to severe dynamic perturbations for elite athletic agility.

✓
Fine Resolution: Precise micro-adjustments accommodating fragile post-surgical joints.

✓
Multi-Directional Control: Independent resistance across anterior-posterior and lateral axes.

✓
Quiet Operation: Low-noise integrated pneumatic manifold suitable for quiet clinics.

Kinematic Feedback

Pelvic & Trunk Posture Sensor

Wireless tri-axial kinematic sensor attached to the patient’s pelvis or chest measures compensatory movements, identifying whether balance is maintained through ankle strategy, hip strategy, or trunk lean.

✓
Strategy Analysis: Distinguishes between physiological ankle vs. compensatory hip strategies.

✓
Postural Sway Quantification: Measures angular velocity and displacement in degrees.

✓
Wireless Comfort: Lightweight ergonomic strap with immediate wireless pairing.

Versatility

Modular Platform Configurations

Supports static posturography, mono-axial dynamic tilting (flexion/extension or inversion/eversion), and 360-degree multi-axial free movement for targeted joint conditioning.

✓
Ankle Rehabilitation: Isolates pure pronation/supination or dorsi/plantar flexion.

✓
Monopodalic Stance: Standardized single-leg stability assessment protocols.

✓
Bipodalic Equilibrium: Whole-body sensory re-weighting and equilibrium tests.

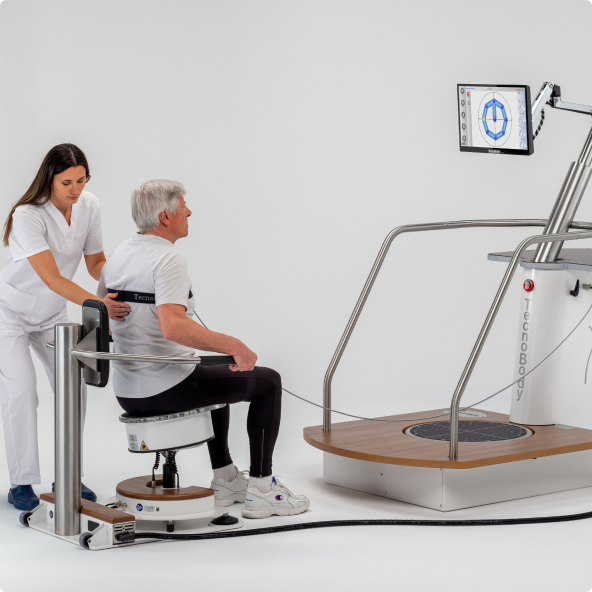

Core & Trunk Module

Integrated Trunk Stability Option

Can be configured with the optional seated module to evaluate and rehabilitate core stability and lumbopelvic rhythm without lower extremity weight-bearing.

✓
Seated Postural Testing: Ideal for early neurological recovery and wheelchair users.

✓
Spinal Stabilization: Selectively recruits transverse abdominis and deep lumbar stabilizers.

✓
Multi-Axis Seat Tilt: Permits controlled seated pelvic tilt under pneumatic resistance.

Interactive Software & Assessment Modules

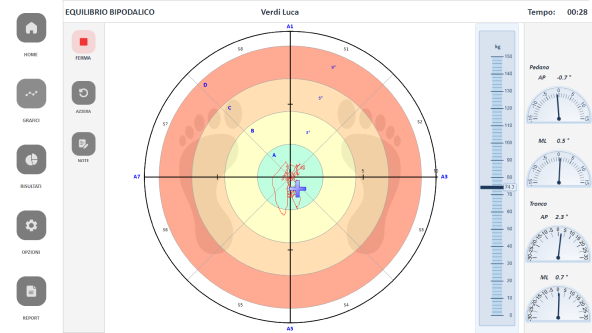

Assessment Modules & Radar Plots

Automated test batteries including Romberg, mCTSIB, and dynamic balance limits with normative radar plots.

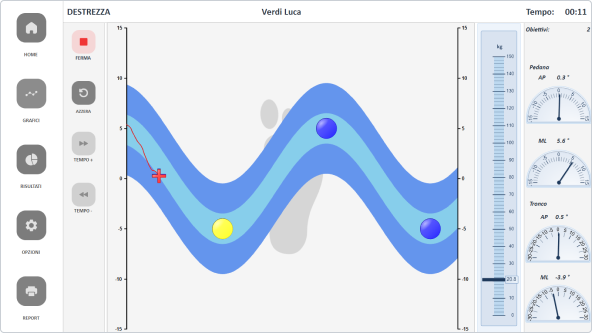

Proprioceptive Retraining

Targeted visual biofeedback exercises where patients steer a virtual cursor by tilting the platform through prescribed patterns.

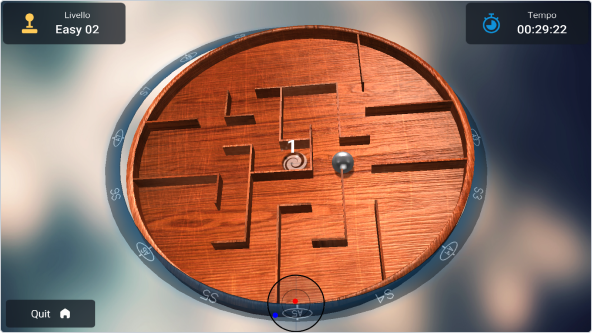

Rehabilitative Exergames

Engaging gamified balance exercises designed to improve reaction time, coordination, and motor control.

Clinical Applications & Pathologies

Lower-Kinetic Chain Orthopedics

Ankle sprain rehabilitation, chronic ankle instability (CAI), ACL reconstruction, and meniscus repair.

Neurological Equilibrium

Parkinson’s disease postural instability, multiple sclerosis, cerebellar disorders, and sensory neuropathy.

Sports Performance & Injury Prevention

Reactive balance profiling, single-leg stabilization under fatigue, and return-to-play criteria.

Spinal Postural Control

Lumbopelvic rhythm retraining, core stabilization, and compensation pattern elimination.

Technical Specifications

Platform Diameter	55 cm non-slip surface with quadrant alignment guides
Angular Deflection	+/- 15° in all 360° directions (multiaxial)
Instability Range	Levels 1 to 50 electronically controlled resistance
Modes	Static, Mono-axial (AP/LL), Multiaxial dynamic
Workstation	Integrated touch PC console on adjustable articulated arm
Max Patient Weight	180 kg
Dimensions & Weight	120 x 85 x 170 cm \| 135 kg
