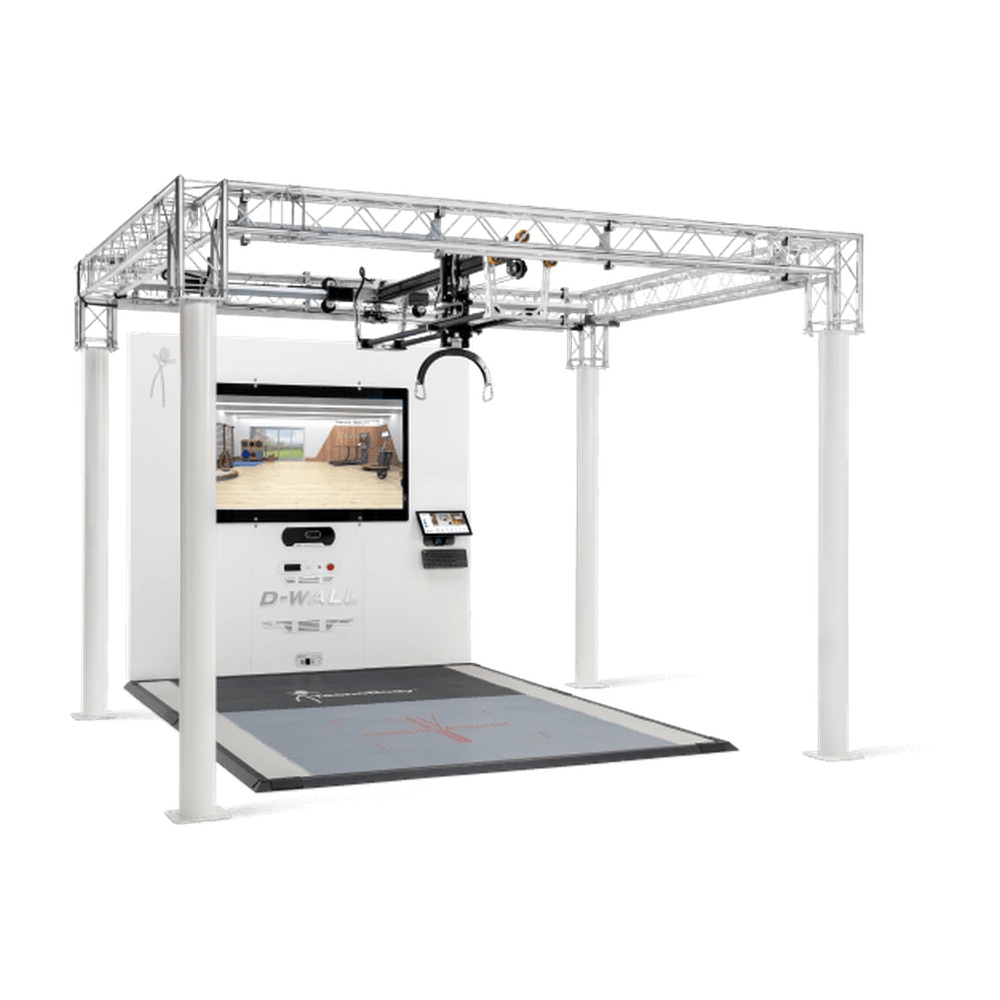

Smart Gravity 3D

Name: Smart Gravity 3D
Brand: TecnoBody
SKU: BT-PROD-67378
Availability: InStock

Advanced robotic dynamic body-weight support system featuring 3D pneumatic unweighting along vertical, anteroposterior, and lateral axes. Delivers early, safe gait re-education, fall-proof mobility retraining, and functional movement therapy for acute neurological and orthopedic patients.

🏥 Physiotherapy Equipment 🏷️ TecnoBody 🛡️ Direct Factory Warranty 🎓 Clinical Training & Setup 📋 24h Tender Pack Ready

🛡️

Authorized Distributor

Direct factory warranty & manufacturer support

🎓

Clinical Training

On-site doctor & biomedical certification

🚚

Hospital Logistics

Regional setup, delivery & calibration

📋

24h Tender Pack

Comprehensive quote & technical specs

Categories: Clinic Equipment, Physiotherapy Division, Physiotherapy Equipment Tags: Body Weight Support, Dynamic Unweighting, Neuro Rehabilitation, Smart Gravity 3D, TecnoBody Brand: TecnoBody Brand: TecnoBody

Description
Reviews (0)

Robotic 3D Dynamic Unweighting

Smart Gravity 3D: Fall-Safe Multi-Axial Unweighting System

Smart Gravity 3D provides state-of-the-art robotic body-weight unloading that moves naturally with the patient in three dimensions: vertical elevation, lateral sway, and forward progression. By offloading up to 120 kg of body weight with dynamic pneumatic compensation, patients can initiate early walking re-education and functional exercise without joint pain or fear of falling.

3D Unweighting

3 Degrees of Freedom

Dynamic compliance in vertical, anteroposterior, and mediolateral planes.

Dynamic Suspension

0 – 120 kg

Electronically regulated pneumatic unloading with continuous load tracking.

Fall-Proof Security

Sub-ms Arrest

Instantaneous safety catch system completely preventing patient falls.

Integration

Treadmill & Floor

Compatible with Walker View treadmill or flat clinical functional tracks.

Technology & Hardware Architecture

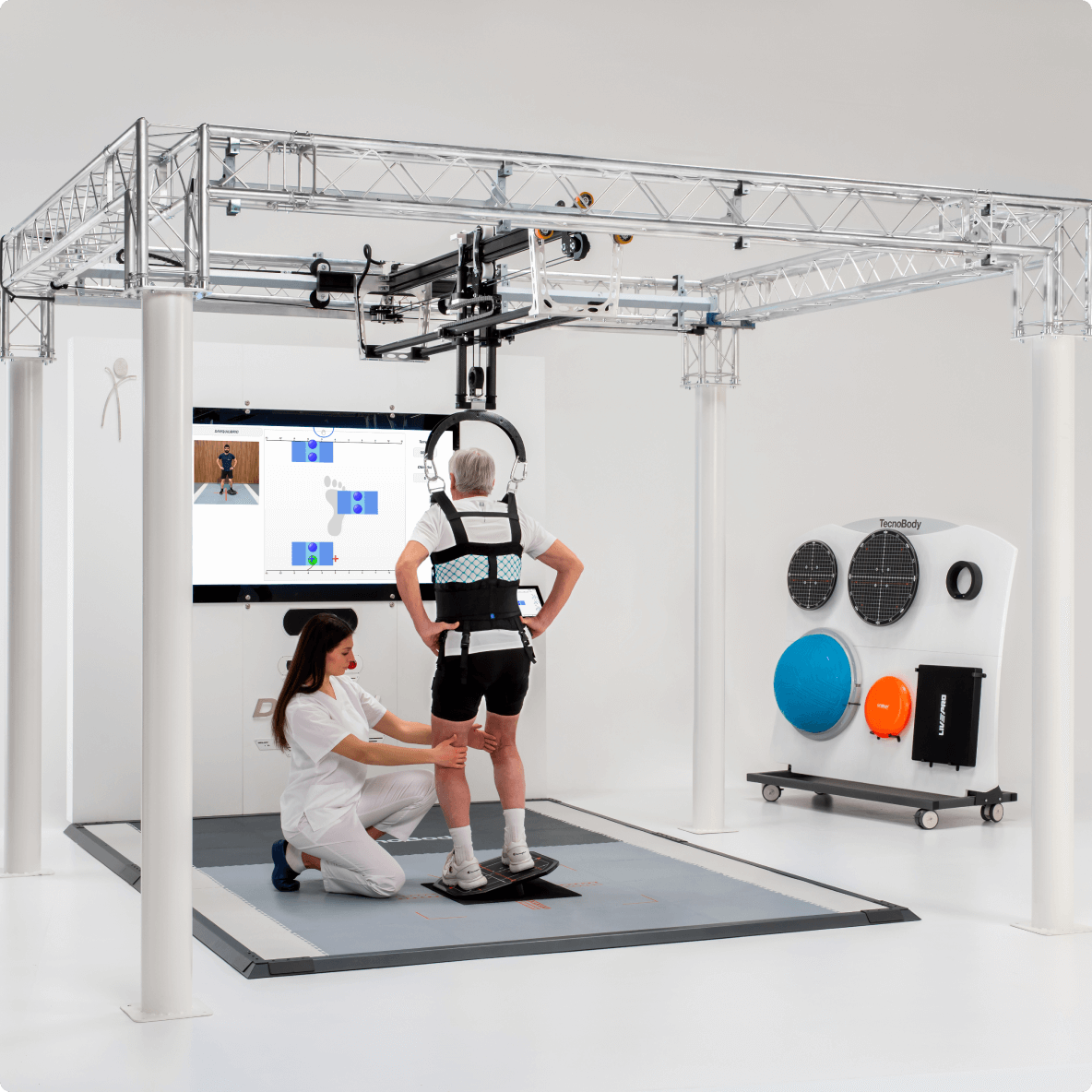

Dynamic Suspension

3D Pneumatic Unweighting System

Advanced closed-loop pneumatic cylinder actively compensates for vertical center-of-mass oscillations, maintaining constant unweighting force without spring rebounding.

✓
Constant Force Technology: Uniform support regardless of patient vertical displacement.

✓
Micro-Step Regulation: Electronically adjustable from 0 to 120 kg in 1 kg increments.

✓
True 3D Motion: Permits natural pelvic rotation, pelvic tilt, and lateral shift.

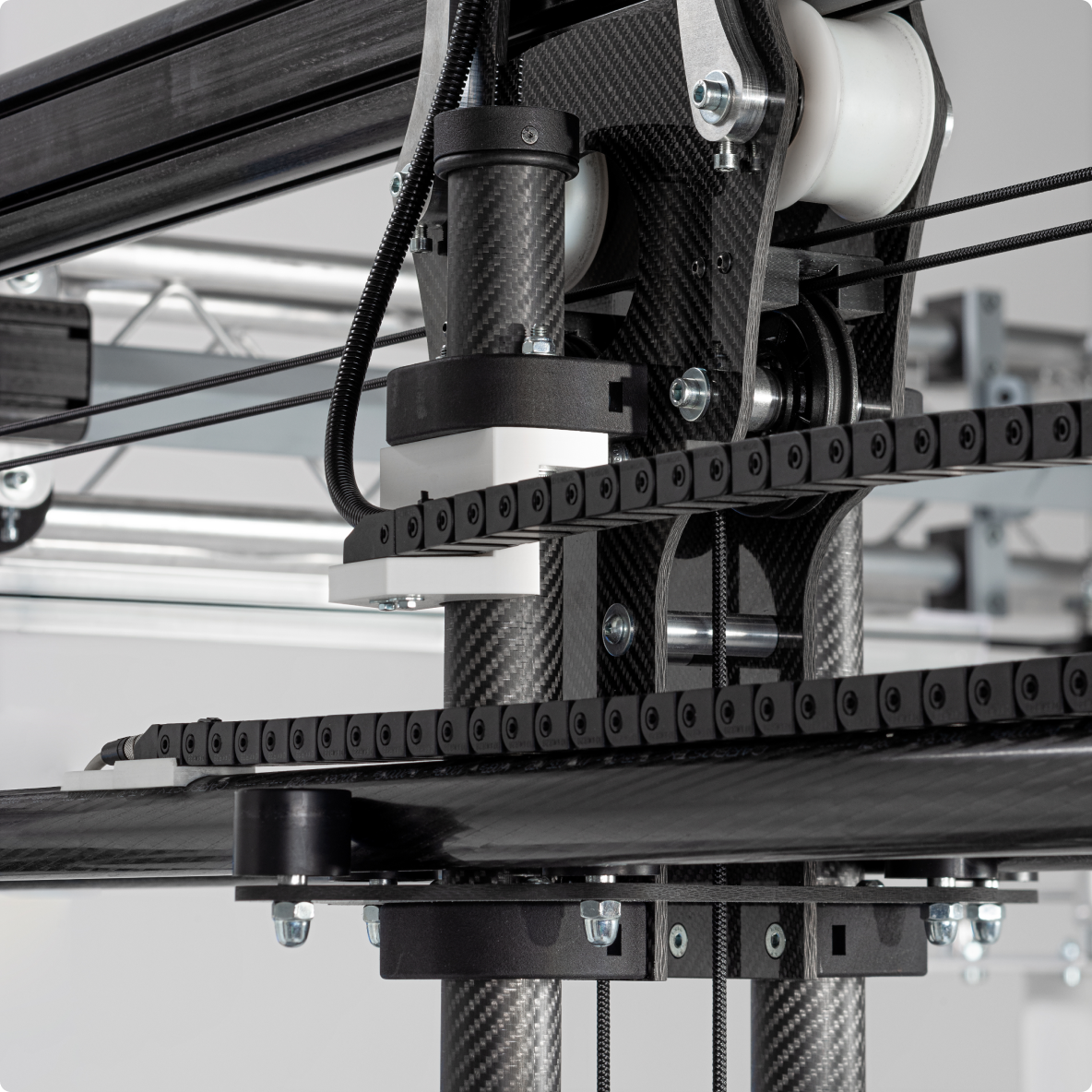

Structural Engineering

Heavy-Duty Gantry & Ergonomic Harness

Robust structural steel framework designed for intense clinical use, paired with an anatomically sculpted harness that distributes support comfortably with zero groin pressure.

✓
Fall-Proof Arrest: Instantaneous pneumatic brake arrests patient falls in sub-milliseconds.

✓
Comfort Padding: Breathable, antibacterial medical textiles with rapid carabiner release.

✓
Versatile Mounting: Spans over treadmills or open gait pathways with full 360° therapist access.

Interactive Software & Assessment Modules

Adaptive Gait Trainer with BWS

Coordinates body-weight support with treadmill speed to re-educate locomotor stepping rhythm.

Real-Time Biomechanical Telemetry

Live tracking of vertical excursion, support symmetry, and dynamic load relief during gait cycles.

Clinical Applications & Pathologies

Severe Neuromotor Impairments

Early rehabilitation for stroke survivors, incomplete spinal cord injuries, and traumatic brain injuries.

Early Orthopedic Mobilization

Protected ambulation following complex pelvic fractures, total hip revision, and osteotomies.

Balance & Vestibular Retraining

Dynamic perturbation therapy, fall risk mitigation, and confidence rebuilding in frail elderly patients.

Pediatric Neuro-Rehabilitation

Gait initiation and motor milestones therapy for children with cerebral palsy and spastic diplegia.

Technical Specifications

Unweighting Capacity	0 to 120 kg, continuously adjustable in 1 kg increments
Axial Freedom	Vertical (dynamic pneumatic), Lateral (+/- 25 cm), AP (free tracking)
Safety Braking	Automatic pneumatic fall-arrest with instant electronic lock
Frame Structure	Heavy-gauge tubular steel gantry with anti-vibration footings
Max Patient Weight	200 kg
Dimensions	240 x 180 x 260 cm (custom ceiling adaptations available)
