US-751

Multi-Frequency Ultrasound Unit with Standard Acc.

SKU: US-751 Categories: Physiotherapy Division, Physiotherapy Equipment Brand: Ito Co Ltd.

Description
Reviews (0)

Features

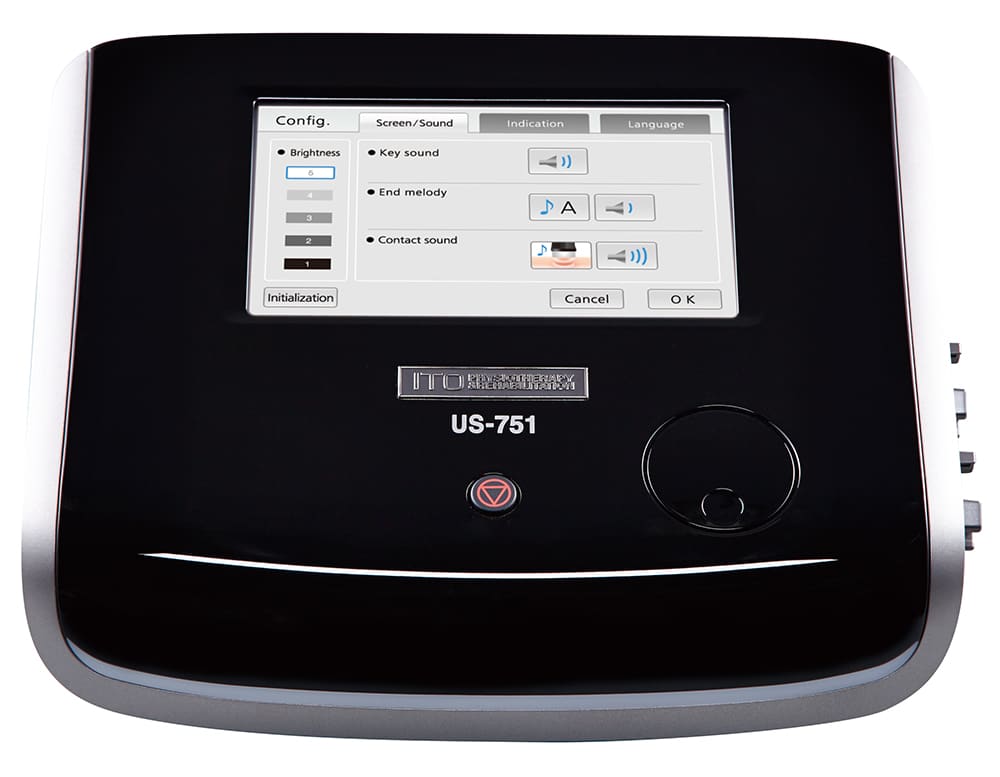

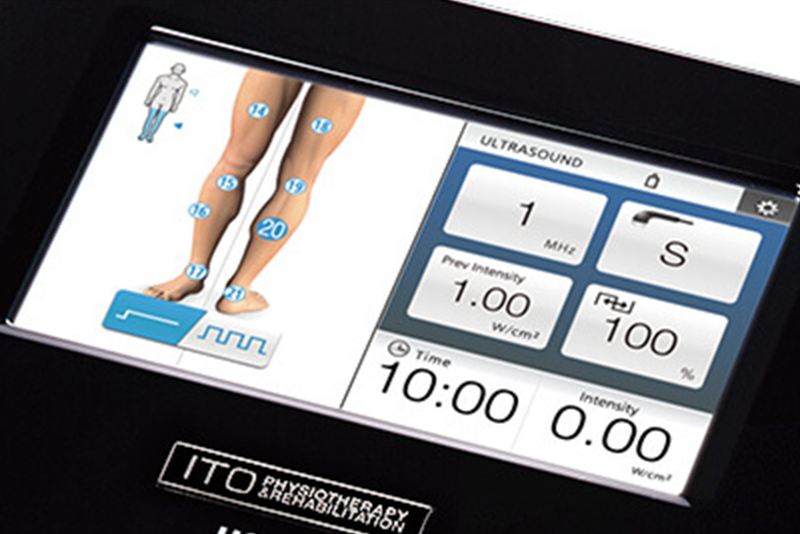

7-INCH TFT COLOR TOUCH SCREEN

The large color touch screen dramatically improves visibility and functionality. The screen is 20% larger than the screen used in previous models.

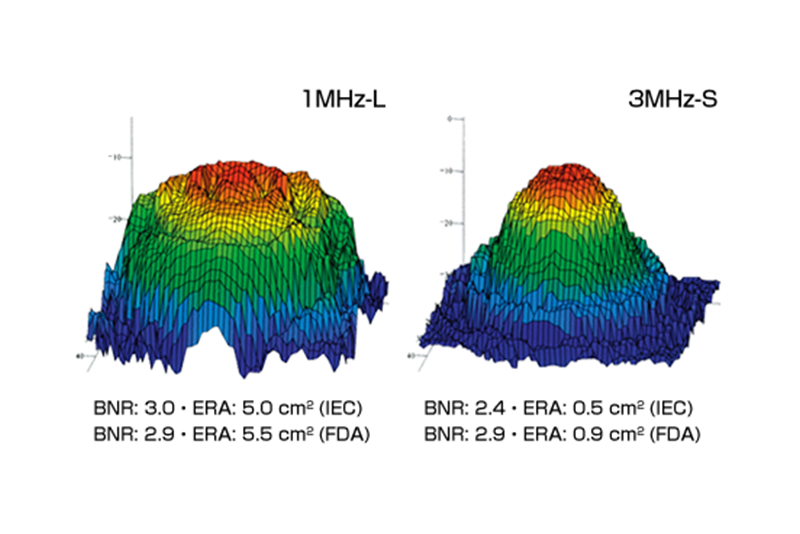

LOW BNR

BNR is one of the indications for quality of the ultrasound beam. The BNR of US-751 is 2.4 to 3.0 (IEC standards), a significantly low ratio. Low beam non-uniformity ratio prevents hot spots and tissue damages.

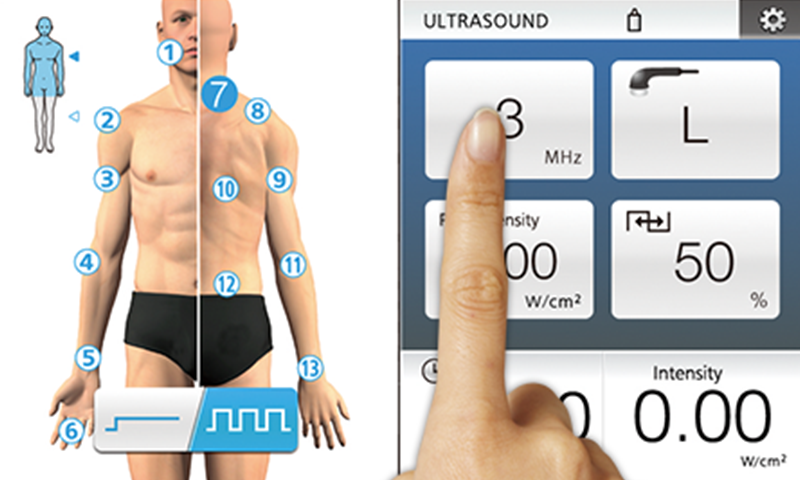

HUMAN BODY DIAGRAM

You can simply choose the area to be treated from Human Body Diagram. 42 parameters are pre-set. All the pre-set parameters can be modified to suit your particular needs.

VISUAL PROBE CONTACT STATUS

Light indications on both ultrasound probe and main unit to visually check whether the ultrasound energy is safely and effectively conducted into human body.

SELECTABLE COUPLING SENSITIVITY

You can select the appropriate coupling sensitivity between ultrasound gel and medicated gel.

MULTI LANGUAGES

You can select language from English, German, French, Spanish, Portuguese, Swedish, Turkish & Chinese.

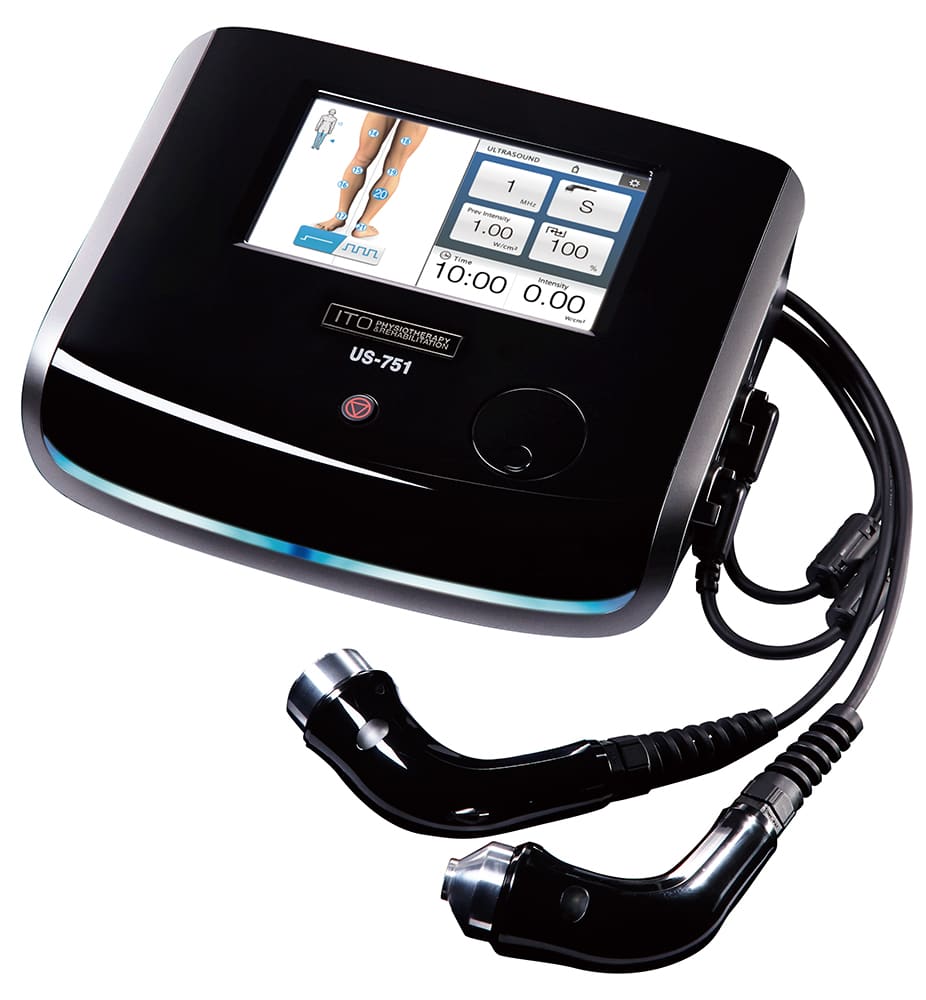

2 ULTRASOUND PROBES CONNECTABLE

You can connect both small (2 cm²) and large (11 cm²) head ultrasound probes to quickly change the treatment head.

Specifications

Power supply	AC 100–240 V, 50/60 Hz
Intensity (max.)	Continuous: 2.00 W/cm² ± 20% Pulsed: 3.00 W/cm² ± 20%
Ultrasound frequency	1.0 MHz, 3.0 MHz ± 10%
Duty cycles	5%, 10%, 20%, 30%, 40%, 50%, 100% ± 5%
Pre-set parameters (modifiable)	42
BNR US Probe head (IEC Standards)	Large 1 MHz: 3.0 ± 30% 3 MHz: 2.4 ± 30% Small 1 MHz: 2.9 ± 30% 3 MHz: 2.4 ± 30%
ERA US Probe head (IEC Standards)	Large 1 MHz: 5.0 cm² ± 20% 3 MHz: 5.0 cm² ± 20% Small 1 MHz: 0.7 cm² ± 20% 3 MHz: 0.5 cm² ± 20%
Timer	30 min. ± 1 min. at maximum
Safety class according to IEC 60601-1	Class I, Type BF
Dimensions	290 (W) x 233 (D) x 96 (H) mm
Weight	Approx. 3.0 kg
Number of probe connections	2
Probe head	Large 11 cm² Small 2 cm²
Pulse frequency	16 Hz, 48 Hz, 100 Hz ± 5%
