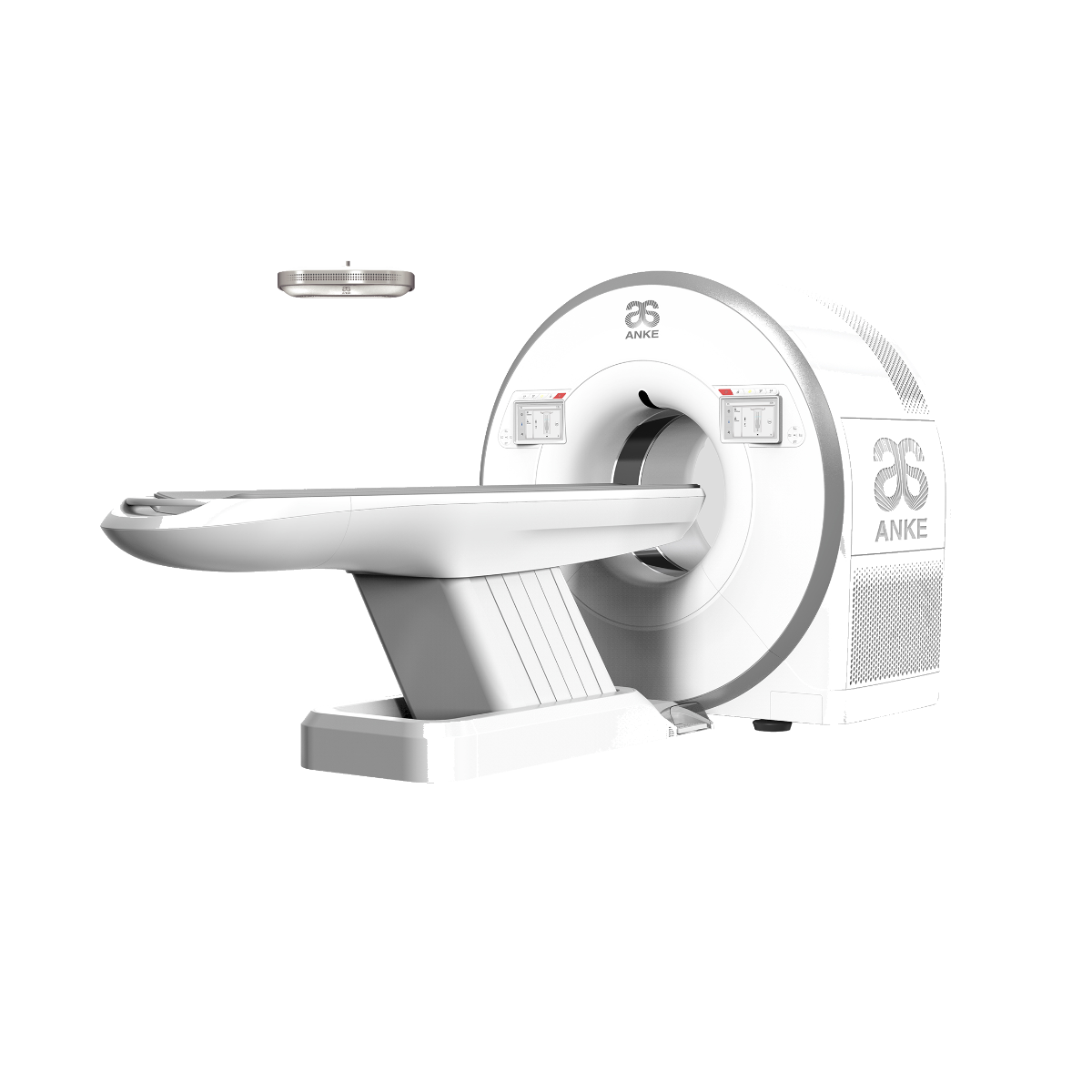

ANKE ANATOM S400 128-Slice CT Scanner

Name: ANKE ANATOM S400 128-Slice CT Scanner
Brand: ANKE
SKU: BT-PROD-69081
Availability: InStock

High-Efficiency 128-Slice Computed Tomography System with 0.286s rotation, 76cm bore, Admir 3D iterative reconstruction, AI Sky-Eye positioning, and Dual Energy spectral imaging. Supplied and serviced with full factory warranty by Beamed Trading across the GCC.

🏥 Imaging Division 🏷️ ANKE 🛡️ Direct Factory Warranty 🎓 Clinical Training & Setup 📋 24h Tender Pack Ready

🛡️

Authorized Distributor

Direct factory warranty & manufacturer support

🎓

Clinical Training

On-site doctor & biomedical certification

🚚

Hospital Logistics

Regional setup, delivery & calibration

📋

24h Tender Pack

Comprehensive quote & technical specs

Categories: CT Series, Imaging Division Brand: ANKE Brand: ANKE

Description
Reviews (0)

ANKE Medical Imaging · CT Series · 128-Slice

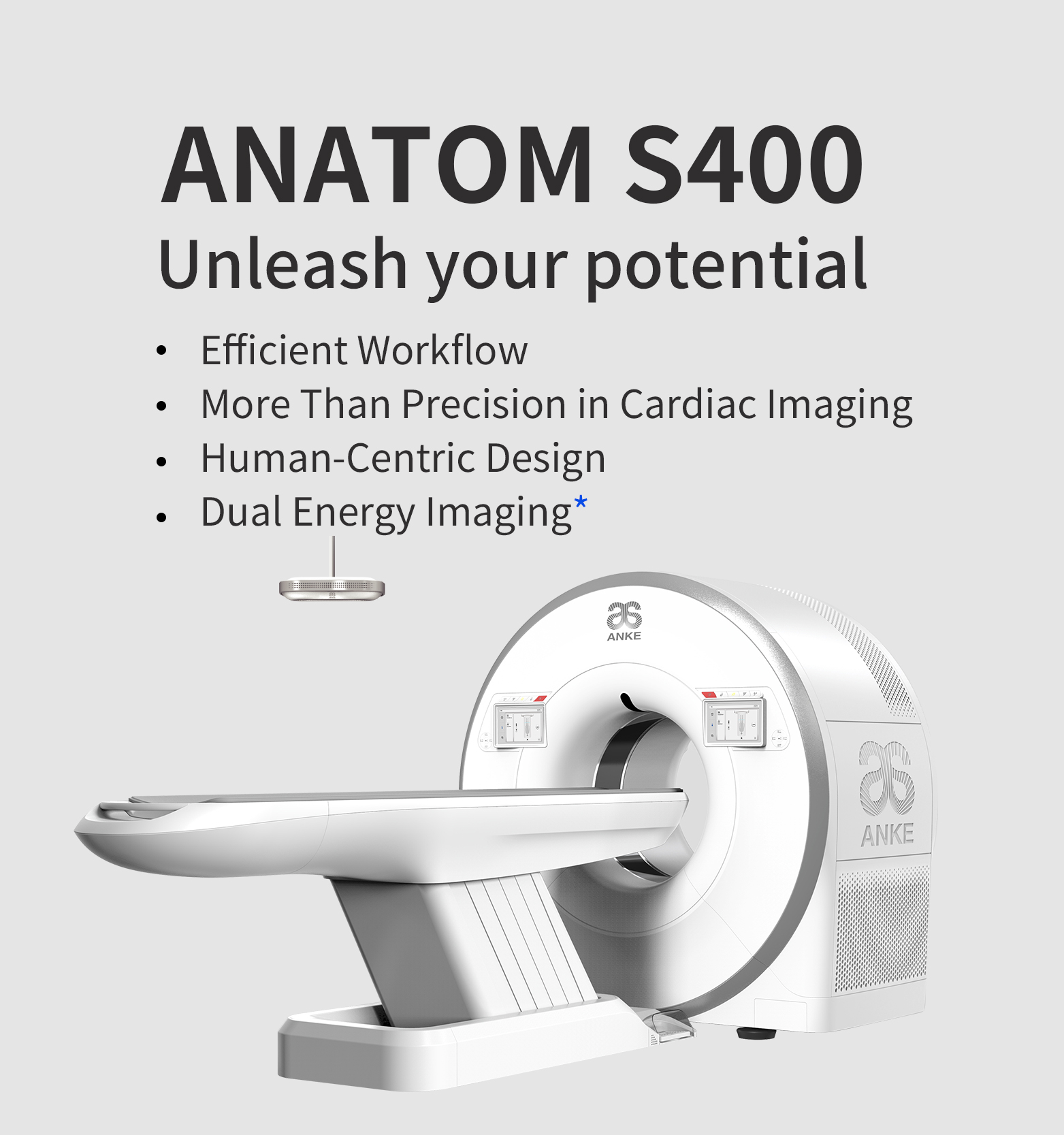

ANATOM S400: High-Efficiency 128-Slice Computed Tomography Workstation

The ANKE ANATOM S400 is an advanced 128-slice computed tomography scanner engineered to unleash the clinical potential of modern radiology departments. Featuring an ultra-fast 0.286-second gantry rotation speed, wide 76 cm patient bore, and cutting-edge Admir 3D iterative reconstruction, the S400 delivers exceptional cardiac, vascular, neurological, and whole-body diagnostic precision. Powered by dual AI cameras (Sky-Eye & Eagle-Eye) for automated one-click patient iso-centering and Dual Energy spectral imaging capabilities, it offers unmatched diagnostic confidence and workflow speed.

Slice Capacity
128 Slices / Rotation

Gantry Rotation
0.286s Ultra-Fast

Gantry Bore
76 cm Large Aperture

Spatial Resolution
21 lp/cm @ 0% MTF

Precision Radiology Engineering

Core Technological Architecture & Innovation

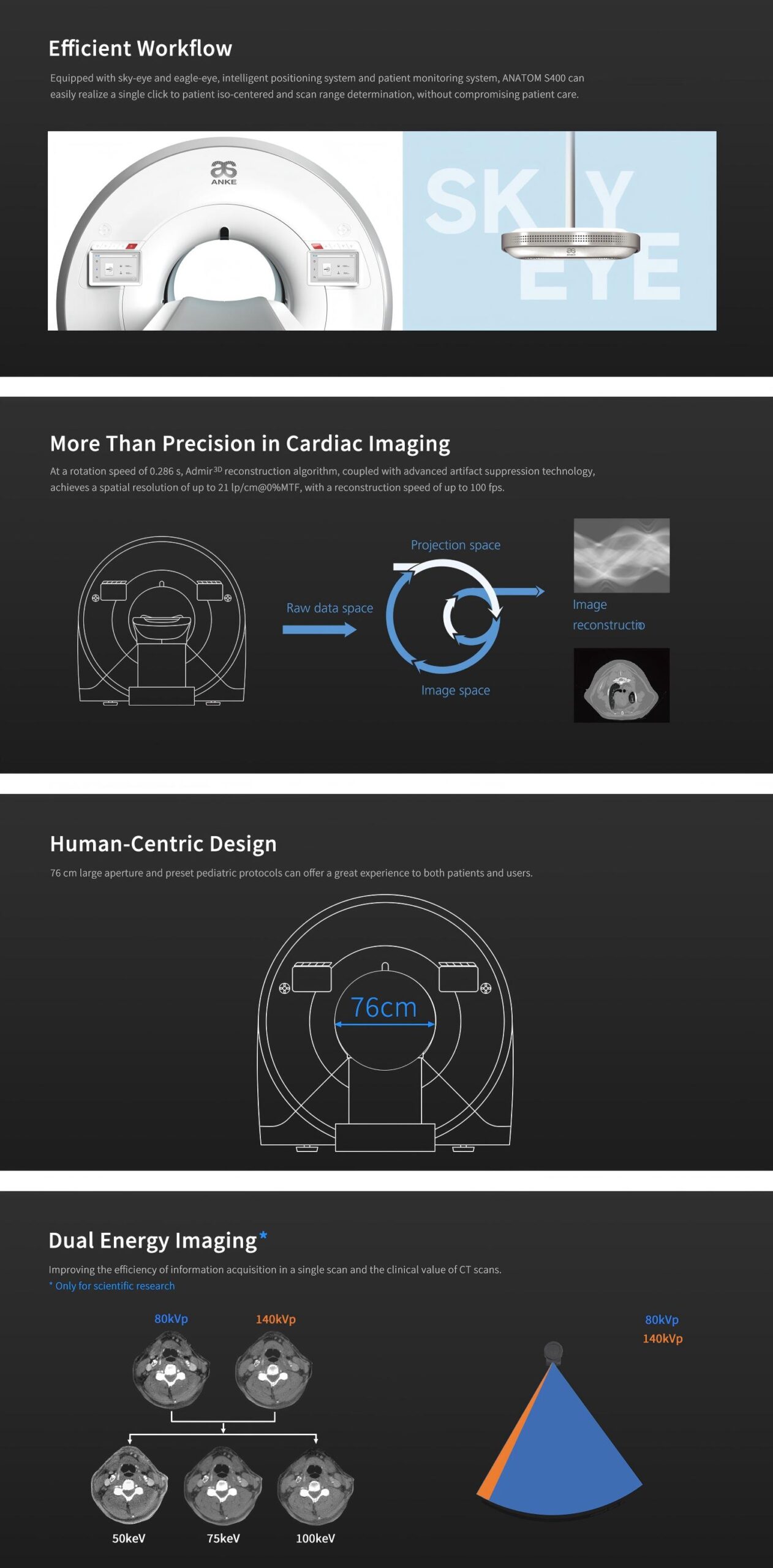

Efficient AI-Powered Workflow

Equipped with dual Sky-Eye and Eagle-Eye intelligent optical cameras and patient monitoring sensors. Realizes automatic single-click patient iso-centering and precise anatomical scan range determination, streamlining patient positioning without compromising bedside clinical attention.

Precision Cardiac & Vascular Imaging

Operating at an ultra-rapid rotation speed of 0.286 seconds per rotation. Powered by the Admir 3D iterative reconstruction algorithm coupled with advanced artifact suppression technology, the system achieves an industry-leading spatial resolution of 21 lp/cm @ 0% MTF with reconstruction speeds up to 100 fps.

Human-Centric 76 cm Wide Bore

The generous 76 cm large gantry aperture accommodates bariatric patients, trauma emergencies, and interventional CT guidance with ease. Pre-configured pediatric scan protocols drastically reduce radiation exposure while providing a calm, stress-free imaging experience for vulnerable patients.

Dual Energy Spectral CT Imaging

Enhances diagnostic yield through simultaneous dual-energy spectrum acquisition (80 kVp / 140 kVp). Generates virtual monochromatic images (50 keV, 75 keV, 100 keV) for material decomposition, effective atomic number calculation, iodine uptake mapping, and beam-hardening artifact elimination.

High-Definition Clinical Portfolio

ANATOM S400 Clinical Sample Scans

Diagnostic-grade clinical scans captured on the ANATOM S400 demonstrating ultra-high spatial resolution, isotropic 3D volumetric rendering, and advanced spectral tissue differentiation.

Abdominal Imaging

Dual-Phase Contrast Abdomen Scan

High-contrast multi-phase hepatic, pancreatic, and renal parenchymal visualization with crisp boundary definition between vascular structures and soft tissue.

Musculoskeletal

3D Bone & Joint Volumetric Rendering

Sub-millimeter isotopic voxels provide crystal-clear orthopedic rendering of micro-fractures, joint surfaces, and complex pelvic anatomy for surgical planning.

Cardiovascular

Coronary CTA & Plaque Evaluation

0.286s temporal rotation speed freezes cardiac motion, enabling razor-sharp tracking of the LAD, RCA, and circumflex arteries with plaque characterization.

Neuroradiology

Head & Neuro Parenchymal Imaging

Superb low-contrast resolution clearly differentiates gray and white brain matter, intracranial hemorrhages, acute ischemic strokes, and skull-base structures.

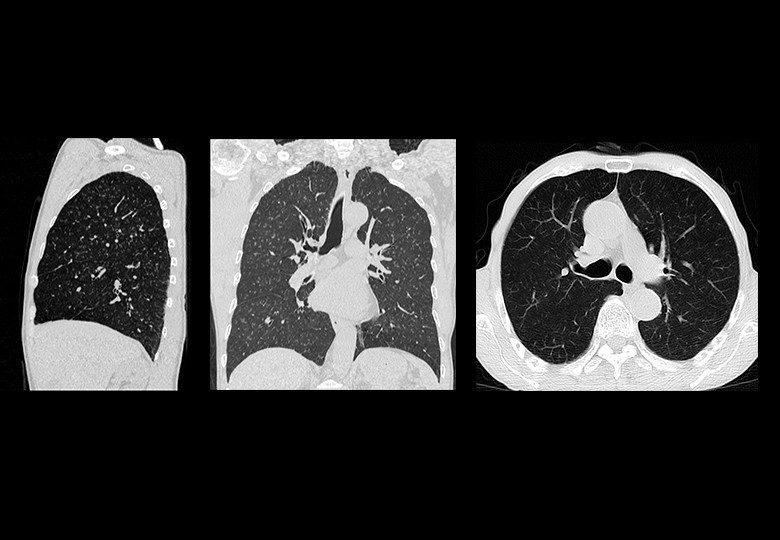

ANATOM S400 High-Resolution Lung CT Scan

Pulmonology

High-Resolution Chest & Lung Scan

Ultra-fine parenchymal lung scans with Admir 3D noise reduction clearly highlighting sub-millimeter interstitial lung disease, bronchiectasis, and pulmonary nodules.

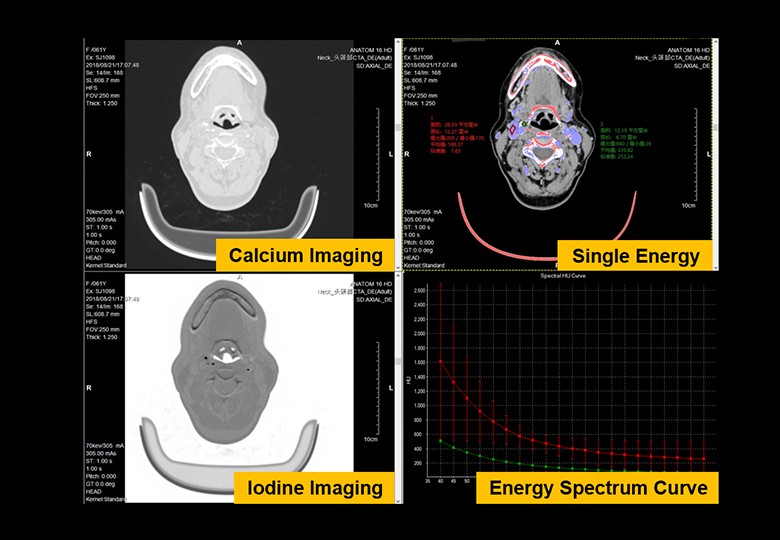

ANATOM S400 Dual Energy Spectral CT Scan

Multi-Energy

Dual-Energy Spectral Reconstruction

Multi-energy monochromatic imaging (50–100 keV) providing beam-hardening artifact reduction, iodine mapping, and virtual unenhanced CT rendering.

Radiological Engineering

Comprehensive Technical Specifications

Detector Slice Configuration	128 Slices per rotation, High-Efficiency Rare-Earth Ceramic Solid-State Detector
Gantry Rotation Speed	0.286 s / 360° rotation (Sub-second cardiac temporal resolution)
Gantry Aperture & Bore Size	76 cm Large Diameter Aperture (Accommodates bariatric & interventional procedures)
Spatial Resolution	Up to 21 lp/cm @ 0% MTF (Ultra-fine micro-vascular and bone trabecular detail)
Reconstruction Speed	Up to 100 frames per second (fps) real-time iterative reconstruction
Patient Positioning & AI Workflow	Sky-Eye & Eagle-Eye Dual Optical AI Camera Systems, Single-Click Automated Iso-Centering
Dose Modulation & Pediatric Care	Admir 3D Iterative Reconstruction, 3D Real-Time Dose Modulation, Dedicated Pediatric Presets
Spectral Imaging Capabilities	Dual-Energy Spectral CT: 80 kVp / 140 kVp multi-energy separation, monochromatic 50-100 keV
Clinical Indications	Cardiology CTA, Whole-Body Angiography, Neuro & Stroke, Oncology, Pulmonary, Trauma, Orthopedics
