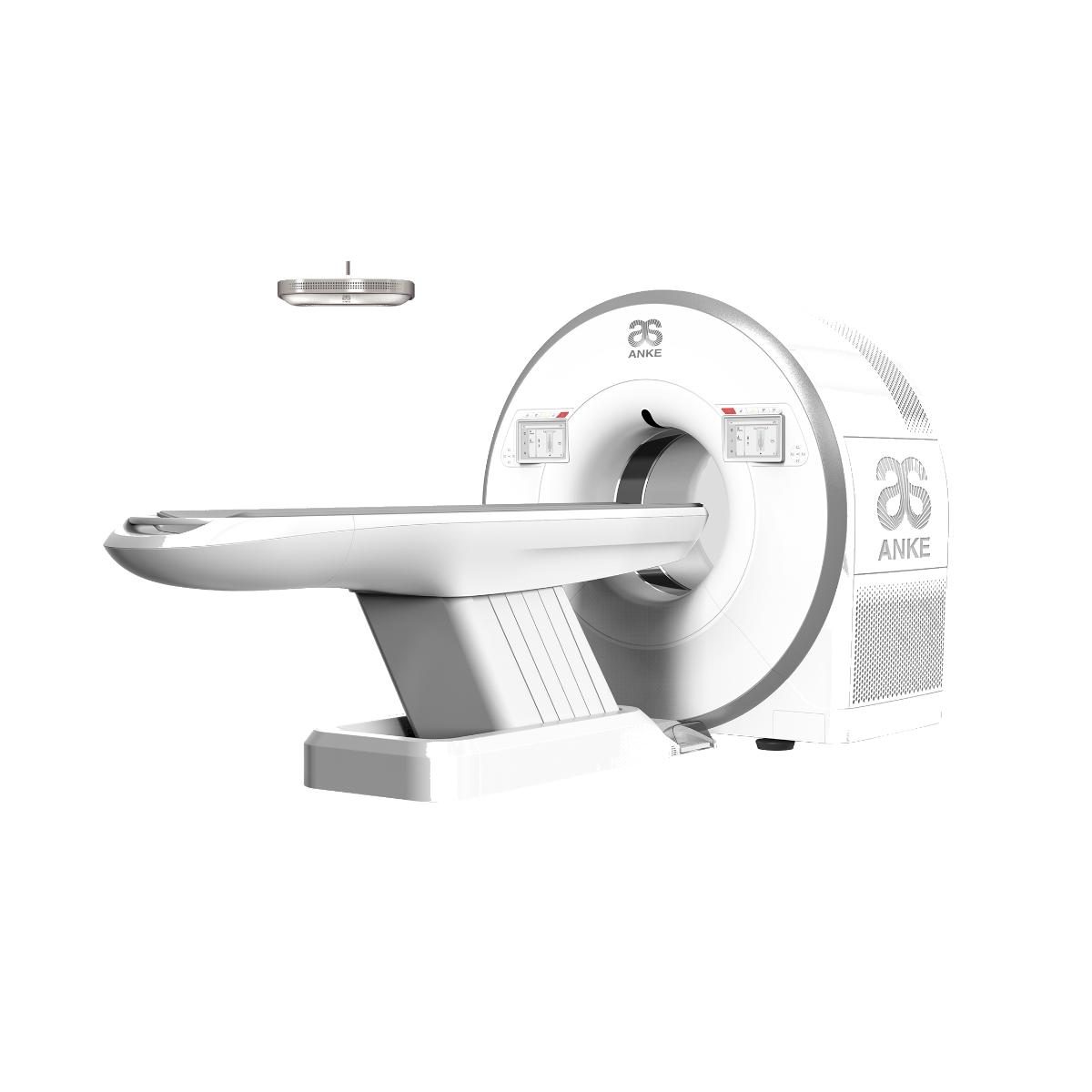

ANKE ANATOM S800 256-Slice CT Scanner

Name: ANKE ANATOM S800 256-Slice CT Scanner
Brand: ANKE
SKU: BT-PROD-69082
Availability: InStock

Flagship 256-Slice Computed Tomography System with 8cm wide detector, 0.256s ultra-fast rotation, 7.5 MHU liquid-bearing tube, Adose dose modulation, and Dual Energy spectral imaging. Supplied and serviced with full factory warranty by Beamed Trading across the GCC.

🏥 Imaging Division 🏷️ ANKE 🛡️ Direct Factory Warranty 🎓 Clinical Training & Setup 📋 24h Tender Pack Ready

🛡️

Authorized Distributor

Direct factory warranty & manufacturer support

🎓

Clinical Training

On-site doctor & biomedical certification

🚚

Hospital Logistics

Regional setup, delivery & calibration

📋

24h Tender Pack

Comprehensive quote & technical specs

Categories: CT Series, Imaging Division Brand: ANKE Brand: ANKE

Description
Reviews (0)

ANKE Medical Imaging · CT Series · Flagship 256-Slice

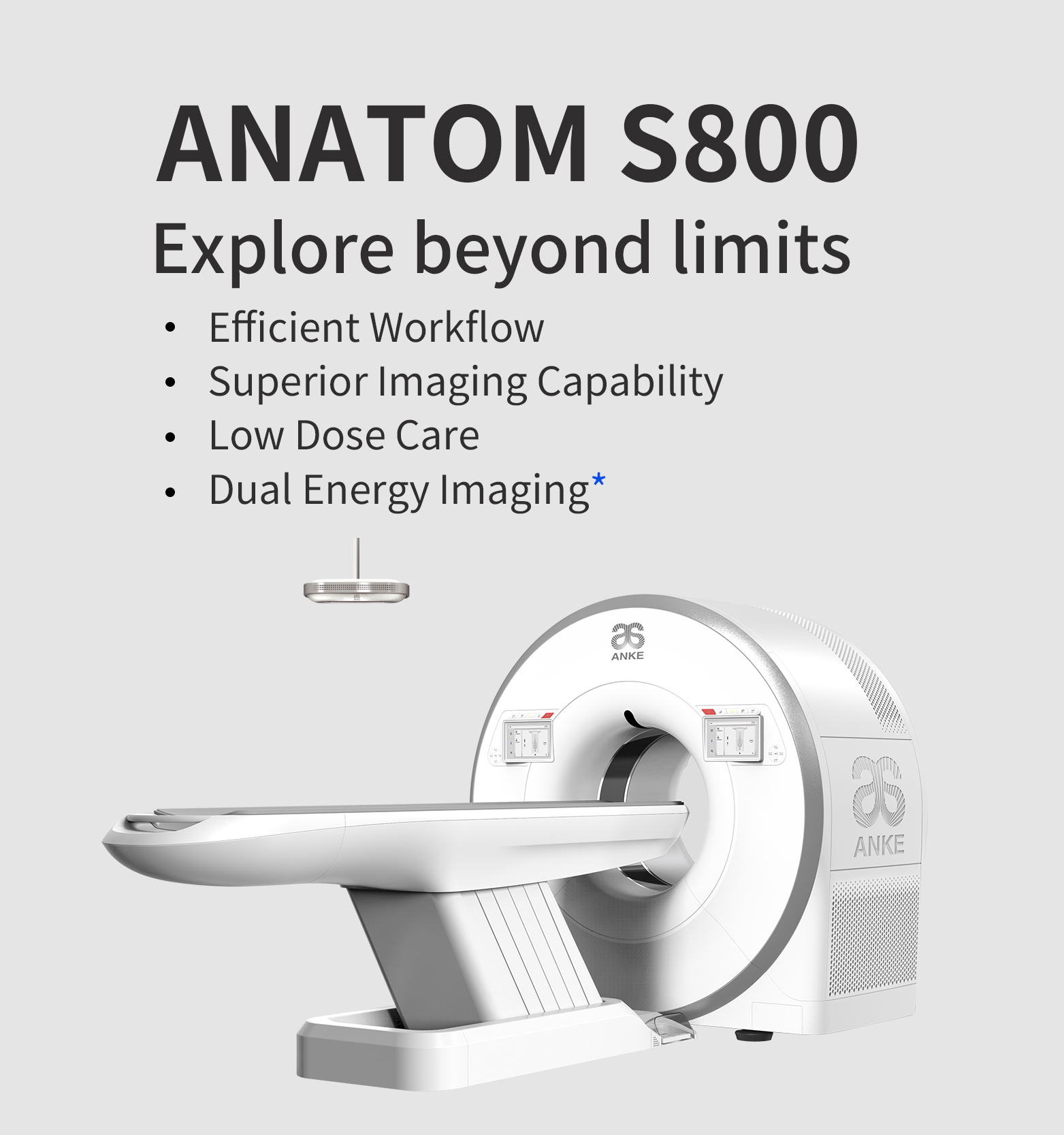

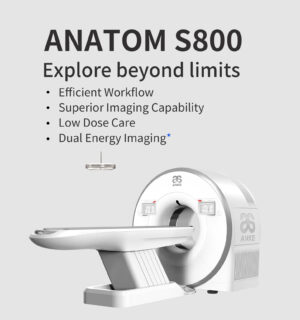

ANATOM S800: Flagship 256-Slice Wide-Detector Computed Tomography Scanner

The ANKE ANATOM S800 is a premium 256-slice diagnostic computed tomography powerhouse designed to explore beyond limits. Featuring an 8 cm wide-coverage solid-state detector, lightning-fast 0.256-second rotation speed, and a heavy-duty 7.5 MHU liquid-bearing X-ray tube with exceptional heat dissipation, the S800 achieves motion-free one-beat whole-heart coronary CTA without heart-rate pre-medication. Integrated with Adose multi-parameter intelligent dose modulation, Sky-Eye/Eagle-Eye optical AI guidance, and comprehensive Dual Energy spectral analytics, it represents the gold standard in high-throughput hospital CT imaging.

Slice Class
256 Slices Flagship

Detector Coverage
8 cm Wide Axial

Rotation Speed
0.256s One-Beat

X-Ray Tube
7.5 MHU Liquid-Bearing

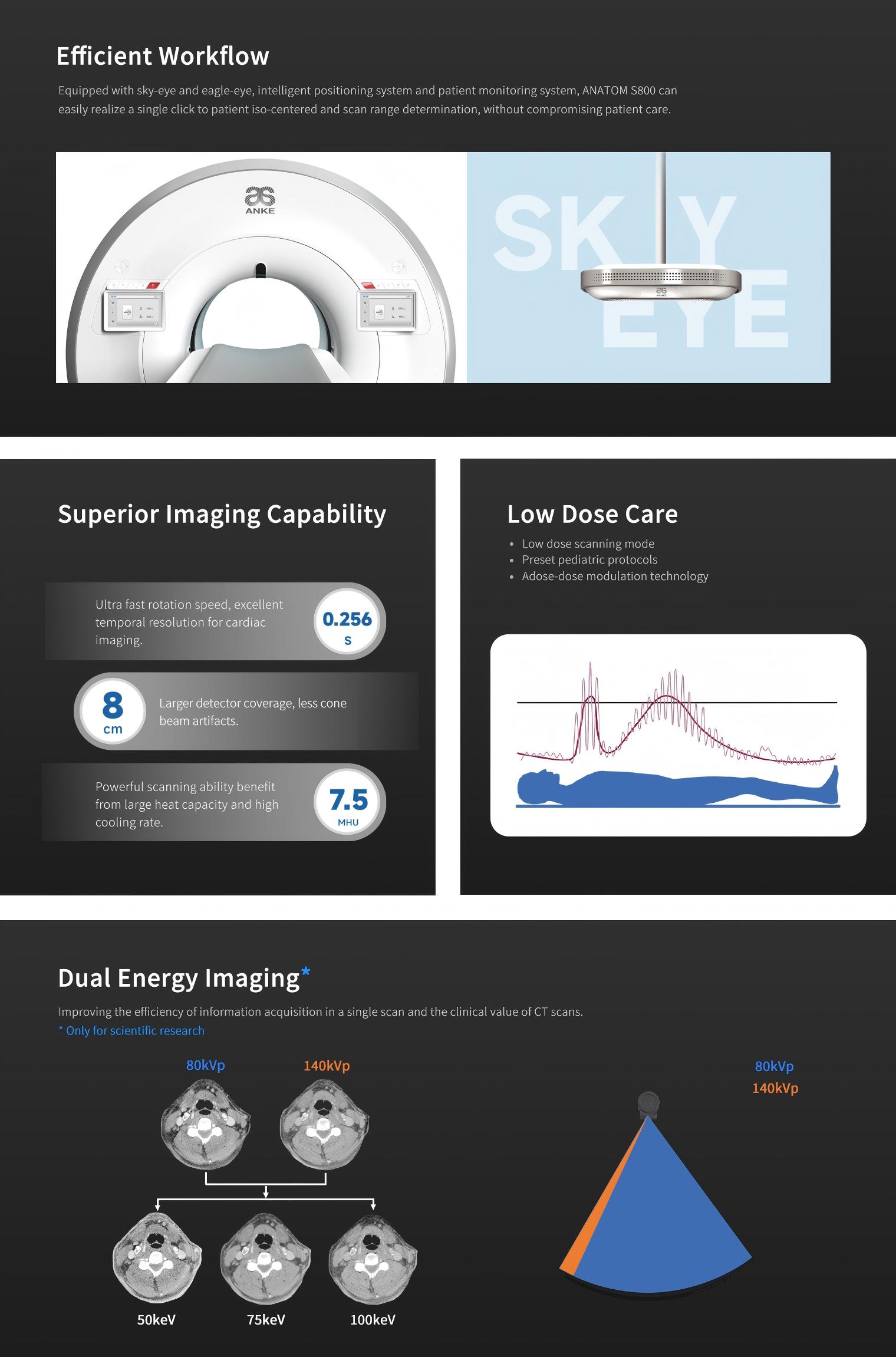

Flagship Diagnostic Engineering

Superior Imaging Capability & Innovation

8 cm Wide Detector & 0.256s Rotation

8 cm wide axial detector coverage reduces cone-beam artifacts while accelerating volumetric organ scans. Combined with an ultra-fast 0.256s rotation speed, it provides superior temporal resolution for one-beat coronary angiography, dynamic organ perfusion, and rapid trauma whole-body exams.

7.5 MHU High-Capacity Liquid Tube

Heavy-duty 7.5 MHU liquid-metal bearing X-ray tube provides exceptional heat capacity and rapid cooling rates. Enables relentless, continuous scanning cycles for high-volume tertiary hospitals, trauma emergency units, and complex long-range multi-phase vascular protocols without overheating pauses.

Adose Advanced Low-Dose Care

Integrated Adose multi-parameter dose modulation dynamically regulates tube current in real time along X, Y, and Z anatomical axes. Includes low-dose chest screening modes and dedicated pediatric protocols that protect radiosensitive organs while safeguarding crystal-clear diagnostic contrast.

Quantitative Dual Energy Spectral CT

Dual energy spectral technology captures simultaneous high and low energy projections (80 kVp / 140 kVp). Unlocks quantitative material decomposition, iodine maps, effective atomic number (Effective Z) calculations, and monochromatic reconstruction across 50, 75, and 100 keV bands.

Comprehensive 256-Slice Clinical Gallery

ANATOM S800 Clinical Sample Scans

Clinical scans acquired on the flagship ANATOM S800 showcasing 8 cm detector whole-organ coverage, freeze-motion coronary tree imaging, and full-body continuous vascular runoffs.

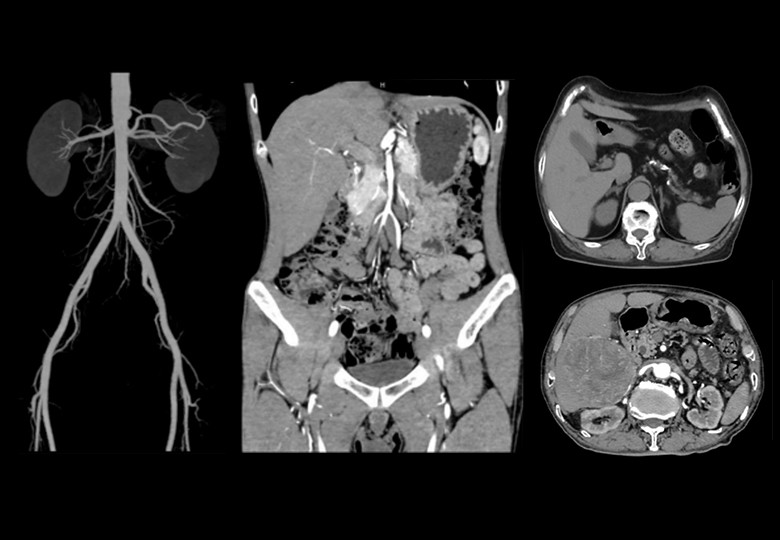

Abdominal Angiography

Abdominal CTA & Renal Vasculature

High-contrast coronal MIP and axial slices demonstrating pristine delineation of the abdominal aorta, renal arterial branches, and parenchymal organ perfusion.

3D Orthopedics

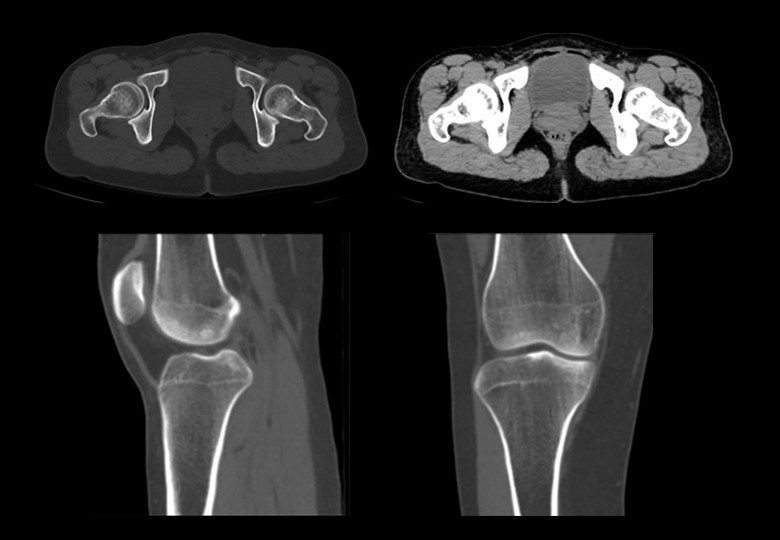

Pelvic & Femoral 3D Volumetric Scan

Intricate bone trabecular matrix and cortical bone interfaces rendered with true isotropic voxel fidelity for orthopedic implant planning and complex trauma evaluation.

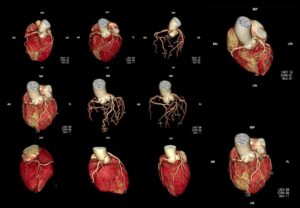

Advanced Cardiac

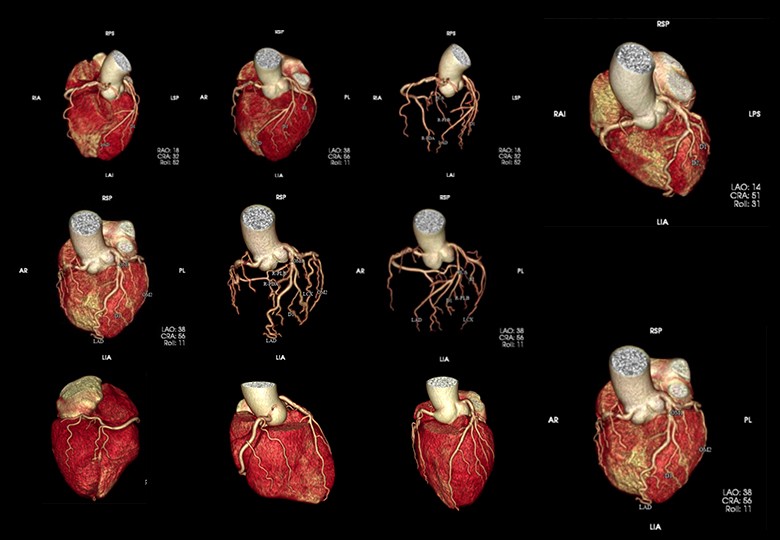

One-Beat Freeze-Motion Coronary CTA

0.256s rotation coupled with 8 cm detector delivers complete whole-heart volume coverage within a single cardiac cycle, free of respiratory or arrhythmia motion artifacts.

Neuro & Stroke

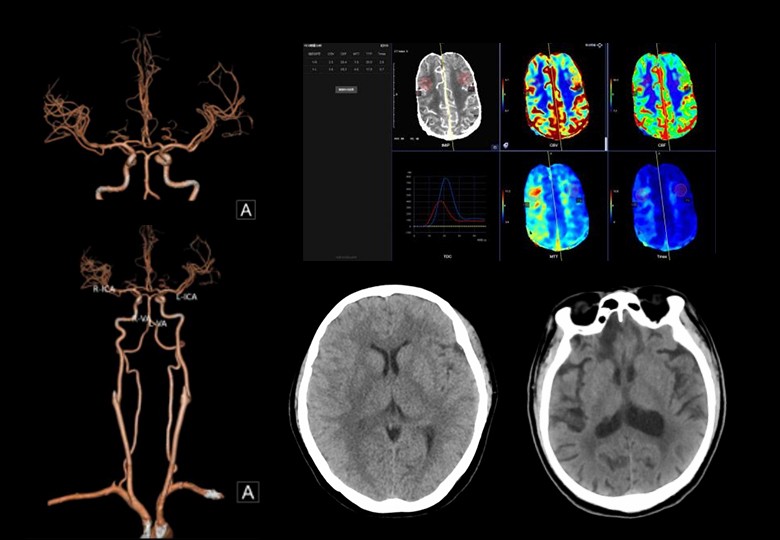

High-Definition Neuro & Brain Imaging

Exceptional low-contrast resolution for rapid stroke triage, cerebral perfusion analysis, micro-bleeds, and circle of Willis vascular mapping.

Low-Dose Chest

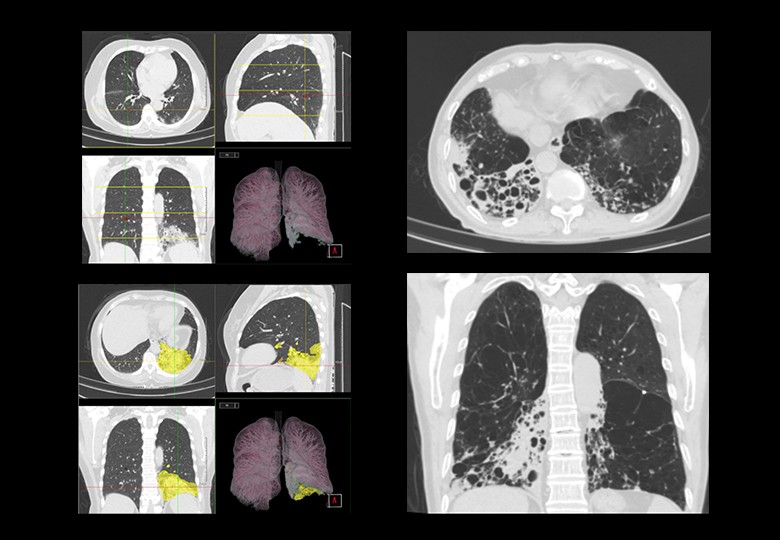

Ultra-Low-Dose Pulmonary Screening

Sub-millisievert chest screening with Adose iterative algorithms, preserving microscopic bronchial tree and sub-pleural nodular clarity.

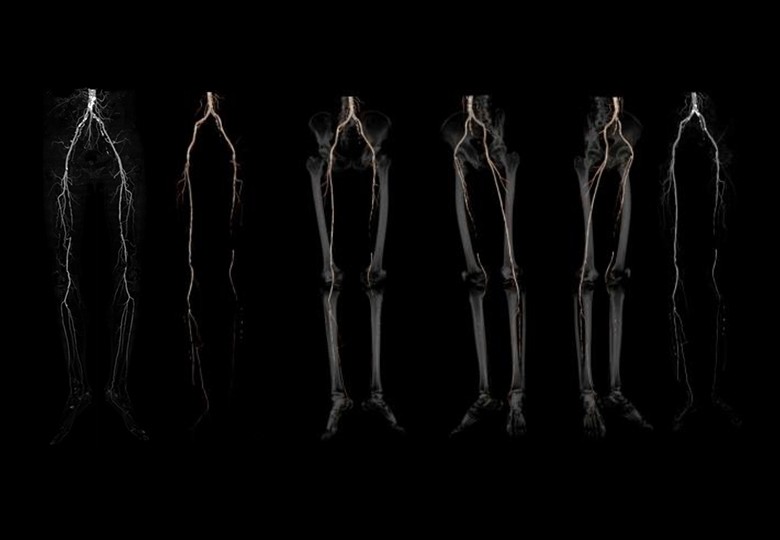

ANATOM S800 Full-Body Vessel Runoff Scan

Vascular Surgery

Full-Body Peripheral Vascular Runoff

Seamless long-range helical runoff scanning from the aortic bifurcation down to distal tibial and plantar arteries with uniform intravascular contrast enhancement.

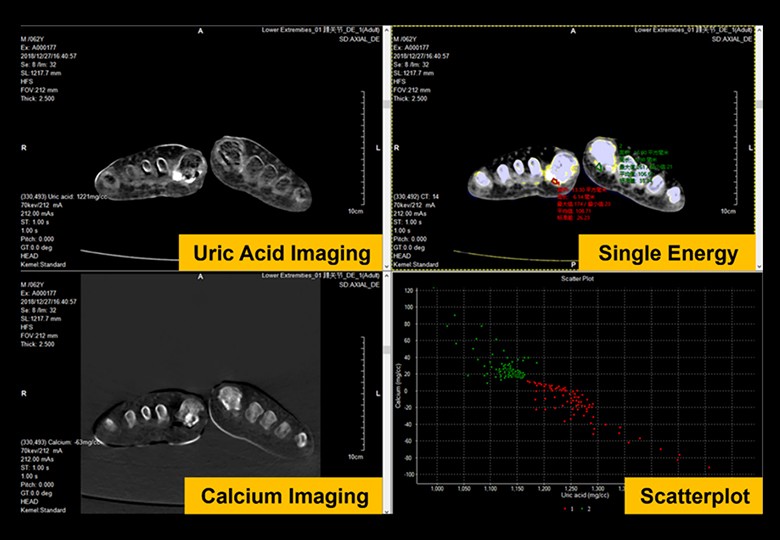

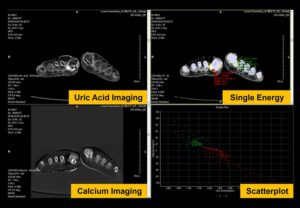

ANATOM S800 Dual Energy Spectral Analysis

Quantitative Spectral

Dual-Energy Spectral Analytics & Maps

Quantitative iodine density measurement, uric acid vs. calcium differentiation, effective atomic Z numbering, and streak artifact suppression around metal implants.

Flagship Engineering

Comprehensive Technical Specifications

Slice Classification	256 Slices per rotation, High-Resolution Solid-State Ceramic Detector
Z-Axis Detector Coverage	8 cm Wide Axial Coverage (Whole-organ single-gantry volume)
Gantry Rotation Speed	0.256 s / 360° rotation (Sub-second one-beat cardiac acquisition)
X-Ray Tube Heat Capacity	7.5 MHU High-Capacity Liquid-Bearing Tube with ultra-fast continuous cooling
AI Positioning & Workflow	Sky-Eye & Eagle-Eye Dual Optical AI Camera Systems with 1-click patient centering
Dose Modulation Technology	Adose 3D Real-Time Dose Modulation, Pediatric Protocols, Low-Dose Chest Mode
Spectral CT Imaging	Dual-Energy Spectral CT: 80 kVp / 140 kVp multi-energy, 50-100 keV virtual mono-energetic
Clinical Indications	One-Beat Cardiac CTA, Whole-Body Runoff CTA, Dynamic Perfusion, Neuro, Oncology, Emergency Trauma
