ANKE ASA-300 Dual-Head High Pressure Contrast Injector
Dual-Head High Pressure Contrast Delivery System featuring simultaneous Dual Flow injection, 325 psi pressure limit, 10-phase protocols, 2,000 protocol memory, and remote touchscreen console. Supplied and serviced with full factory warranty by Beamed Trading across the GCC.
ASA-300: Dual-Head High Pressure Contrast Delivery System

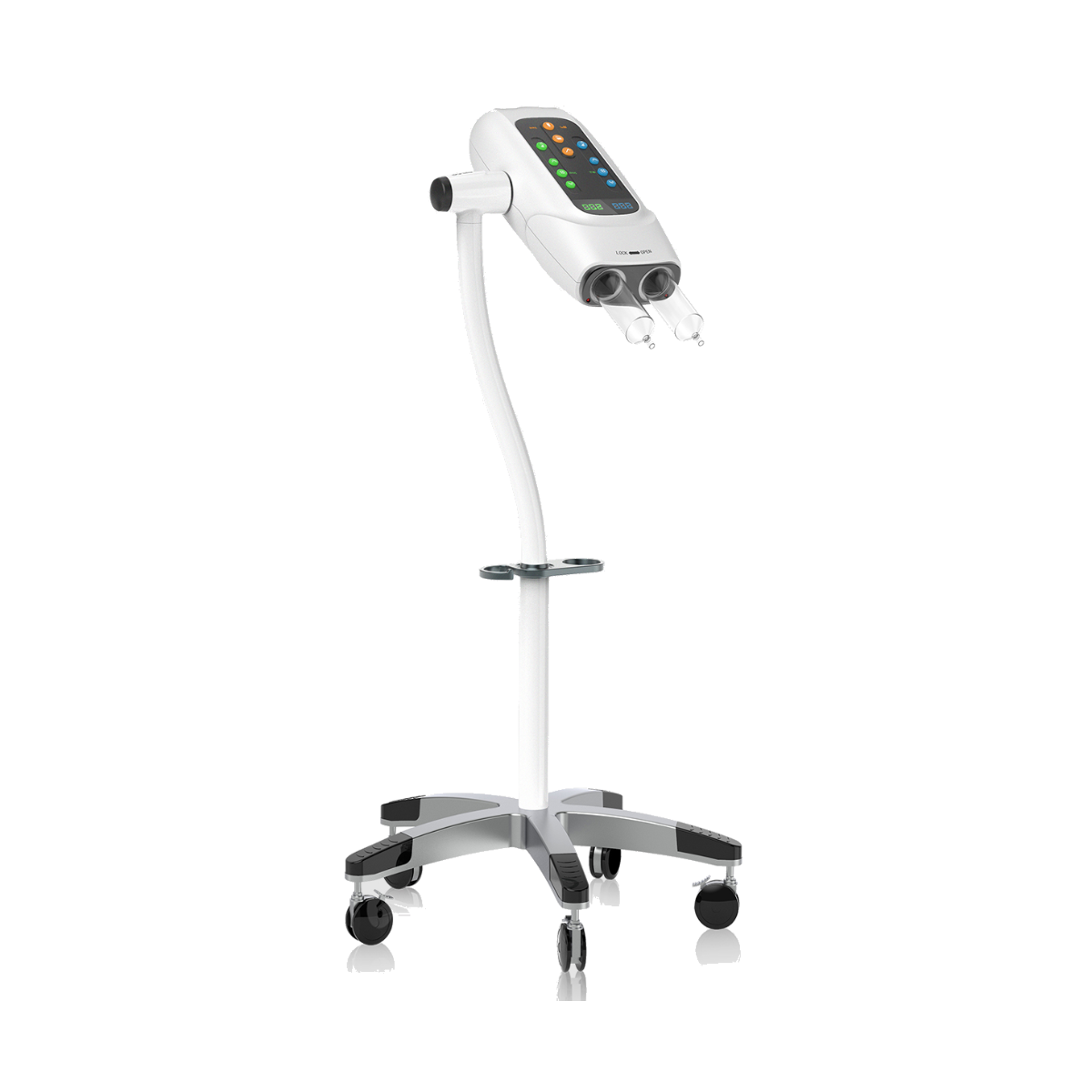

The ANKE ASA-300 is a state-of-the-art dual-head high pressure contrast injector engineered to expand clinical imaging beyond routine protocols. Designed for modern multi-detector CT suites and interventional suites, the ASA-300 features revolutionary simultaneous Dual Flow technology, allowing precise simultaneous delivery of contrast media and saline flush in programmable ratios. With a high-resolution remote touchscreen console, 10-phase programmable protocols, 2,000 protocol memory slots, and real-time pressure curve monitoring up to 325 psi, the ASA-300 ensures exceptional diagnostic contrast enhancement and patient safety.
Simultaneous Dual Flow
Up to 325 psi (2240 kPa)
200 ml (A) + 200 ml (B)
Up to 2,000 Protocols
Core System Technologies & Innovations
Simultaneous Dual Flow Technology
Dual flow delivers simultaneous injection of contrast medium and saline in precise, user-selected ratios. This prevents streak beam-hardening artifacts in the superior vena cava and provides uniform, simultaneous opacification of both right and left ventricles during cardiac CT angiography.
Patient-Centric Safety Architecture
Features one-click activation of KVO (Keep Vein Open) saline pulsing to prevent needle occlusion during long setup delays. Dedicated illuminated visual indicator ensures complete air expulsion before connection, accompanied by real-time graphic pressure curve tracking for total injection safety.
Intuitive Remote Touchscreen Console
High-definition color touchscreen control console located safely in the CT operator suite. Supports multi-phase programming up to 10 distinct phases, automatic protocol numbering, and storage for up to 2,000 customized protocols, synchronizing smoothly with the bedside injector head.
User-Friendly Ergonomics & Docking
Streamlined frame on smooth multidirectional lockable casters. Quick-action rotating syringe docking allows rapid installation and auto-filling of 200 ml syringes. Equipped with 15 sets of customized professional delivery profiles for rapid selection during emergency cases.
Contrast Dynamics & Clinical Scans

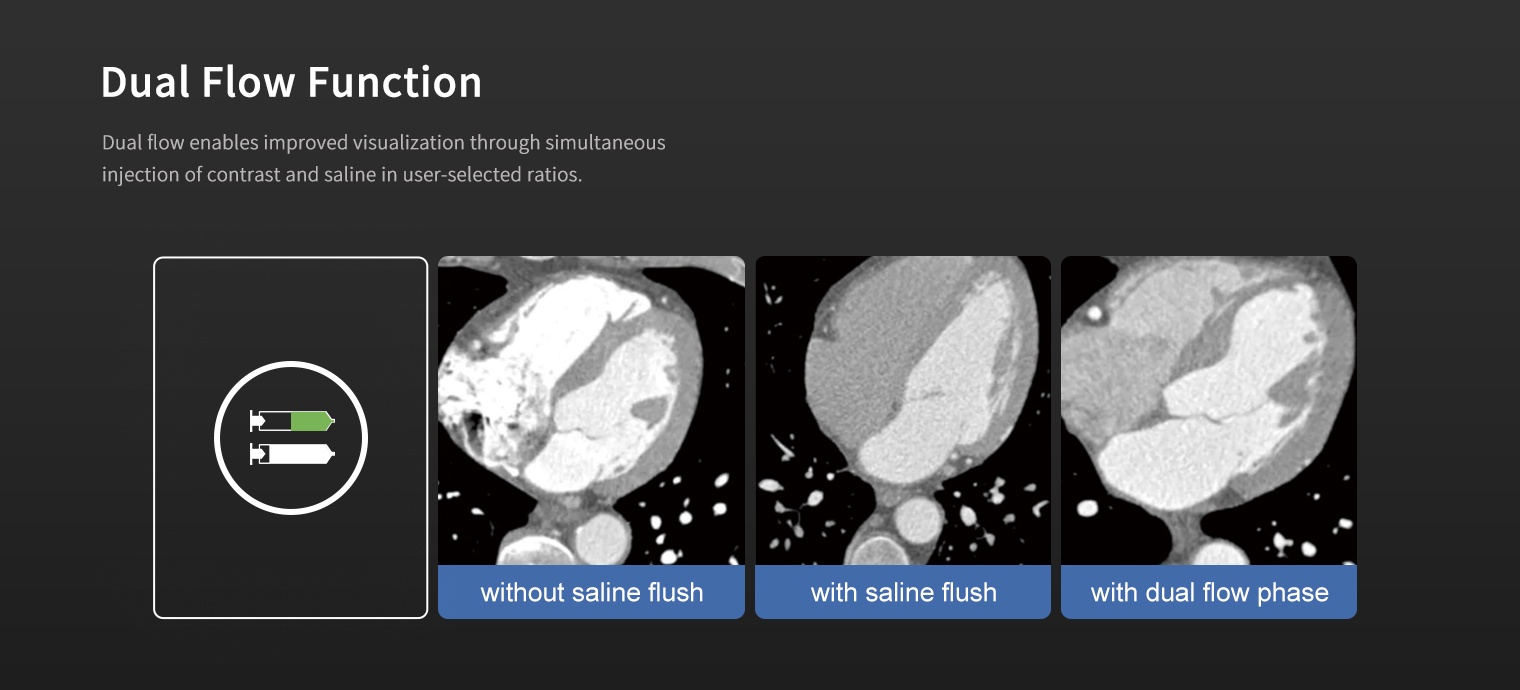

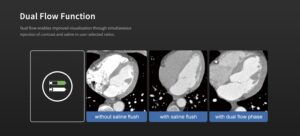

ASA-300 Dual Flow Cardiac CT Enhancement Comparison
Diagnostic comparison proving the clinical superiority of simultaneous Dual Flow contrast and saline injection: eliminating SVC beam-hardening artifacts and delivering balanced right-to-left heart visualization.
Clinical Analysis of Sample Scans:
- Without Saline Flush: Dense contrast pooling in the right heart creates severe streak artifacts that obscure the right coronary artery (RCA) origin and adjacent myocardium.
- With Saline Flush: Clears dense pooling in the SVC, but rapid dilution leaves the right ventricular cavity under-enhanced compared to the left ventricle.
- With ASA-300 Dual Flow Phase: Simultaneous co-injection of contrast and saline maintains uniform attenuation across both right and left ventricles, providing ideal contrast density with zero beam-hardening streaks.

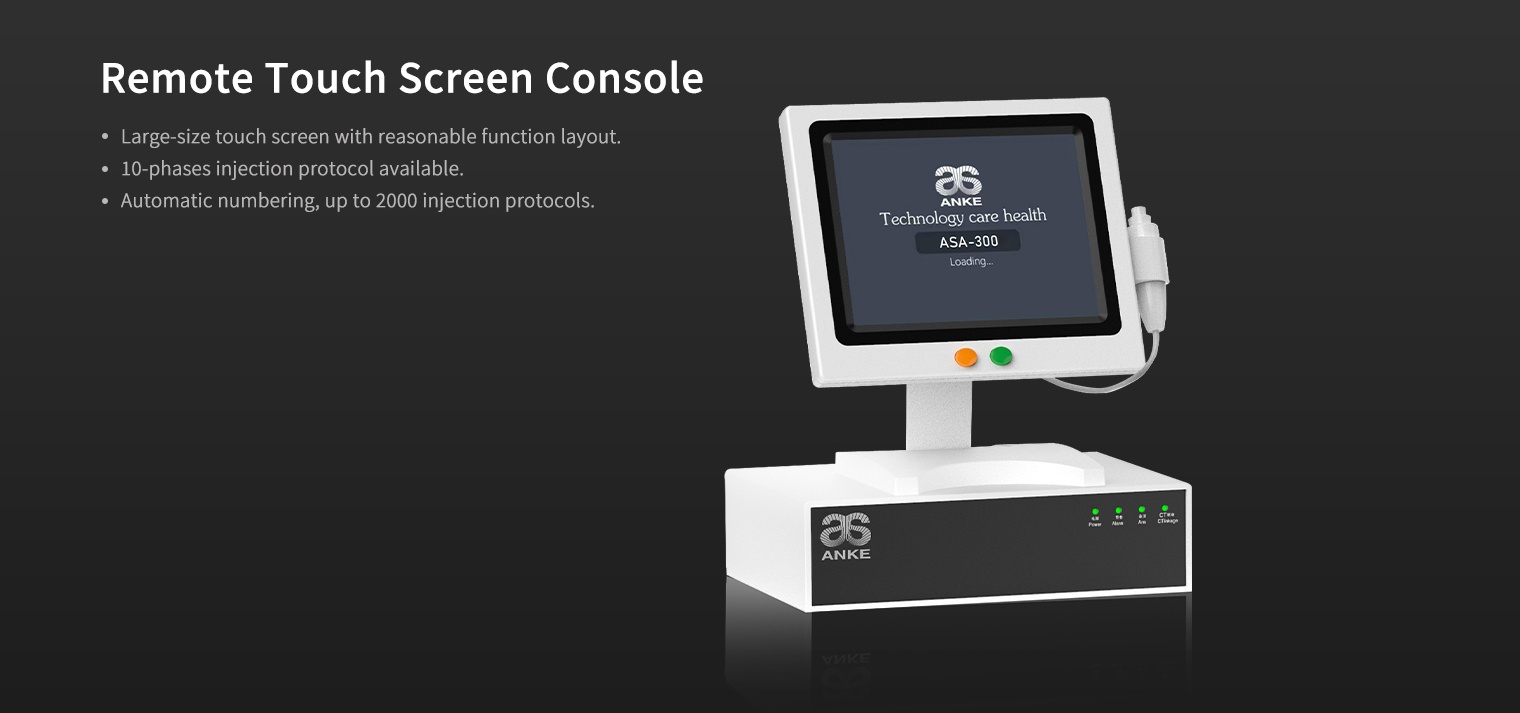

Full-Featured Remote Touchscreen Console
Positioned inside the radiation-shielded control room, the ASA-300 dedicated remote console replicates the bedside injector display in real time. Technologists can adjust injection parameters, review pressure curves, and initiate protocols without entering the scanner gantry room.
- 10 programmable injection phases with custom delay intervals
- Automatic numbering system with storage for up to 2,000 protocols
- Real-time dynamic pressure curve visualization
Comprehensive Technical Specifications
