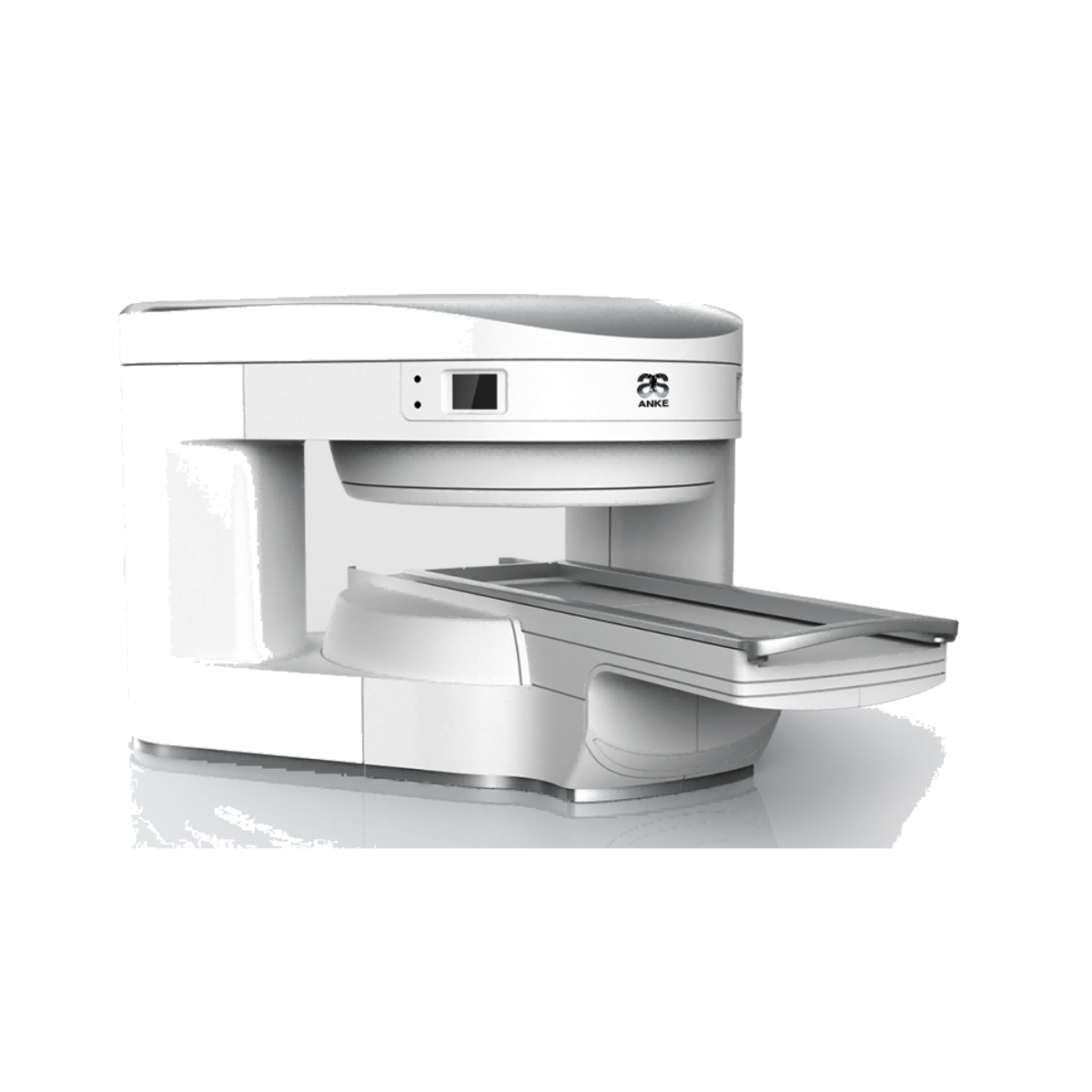

ANKE OPENMARK 5000 Midfield Open MRI System
High-performance 0.51T Midfield Open MRI System engineered with a 43 cm vertical opening, panoramic 320-degree opening angle, Fast Recovery FSE, and 3D TOF non-contrast MR angiography. Combining the patient comfort of open MRI with the diagnostic contrast of midfield scanning, with zero liquid helium requirements. Supplied and serviced across the GCC with factory-backed warranty by Beamed Trading.
OPENMARK 5000: Next-Generation Midfield Open MRI System
The ANKE OPENMARK 5000 represents the pinnacle of open permanent MRI engineering, delivering an industry-leading 0.51 Tesla magnetic field strength coupled with an expansive 43 cm vertical opening and 320-degree panoramic viewing. By bridging the gap between open-architecture patient comfort and high signal-to-noise ratio diagnostic imaging, the OPENMARK 5000 enables high-definition neuro, musculoskeletal, spine, and non-contrast 3D Time-of-Flight angiography. Engineered with Fast Recovery FSE, diffusion-weighted imaging, and zero liquid helium requirements, it provides unmatched clinical precision and sustainable operating efficiency.
0.51T Midfield Open
43 cm Ultra-Spacious
320° Wide Panorama
100 T/m/s High Speed
Core Technological Architecture & Innovation
0.51T Advanced Magnetic Circuit
Setting a benchmark for permanent magnet technology with 0.51 Tesla field strength. Delivers over 25% higher signal-to-noise ratio compared to standard 0.35T/0.4T scanners, empowering clinicians with crisp anatomical differentiation and thin-slice volumetric acquisition.
Spacious 43 cm Vertical Clearance
Generous 43 cm vertical opening with a panoramic 320-degree opening angle creates a calm, non-constricting atmosphere. Ideal for claustrophobic, bariatric, and pediatric examinations while allowing wide degrees of musculoskeletal joint flexion and extension during scanning.
Fast Recovery FSE & High Slew Gradient
Supported by a 25 mT/m gradient system operating at 100 T/m/s slew rate. Fast Recovery Fast Spin Echo (FR-FSE) significantly shortens repetition times (TR) without sacrificing T2 weighting, accelerating patient throughput and reducing motion artifacts.

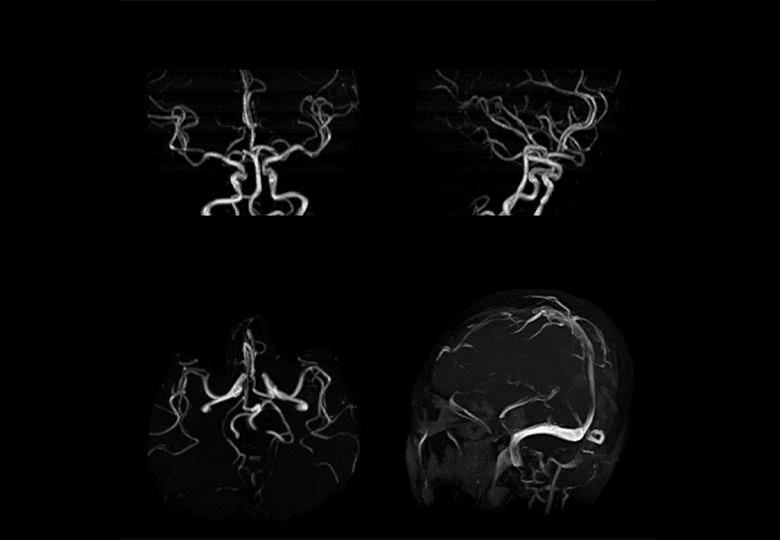

Non-Contrast 3D TOF Angiography & DWI
Dedicated intracranial vascular imaging through high-definition 3D Time-of-Flight (3D TOF) and 2D TOF MRV sequences. Features diffusion-weighted imaging (DWI) for rapid acute ischemic stroke identification and oncological lesion evaluation.

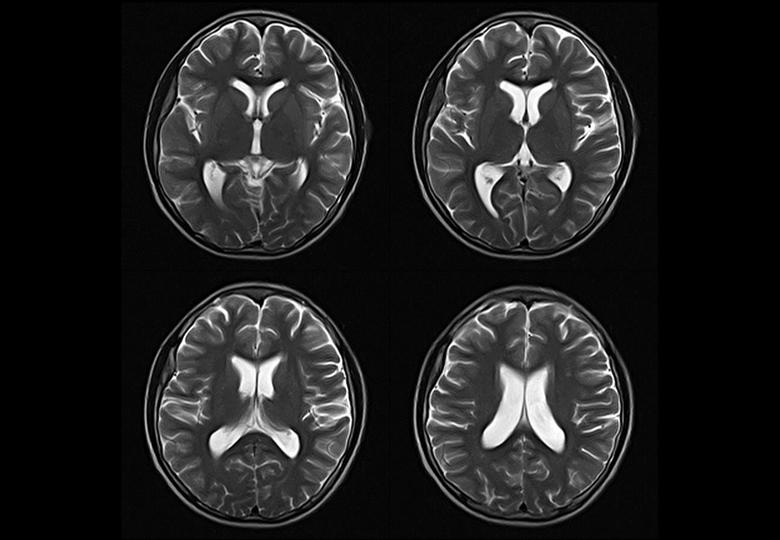

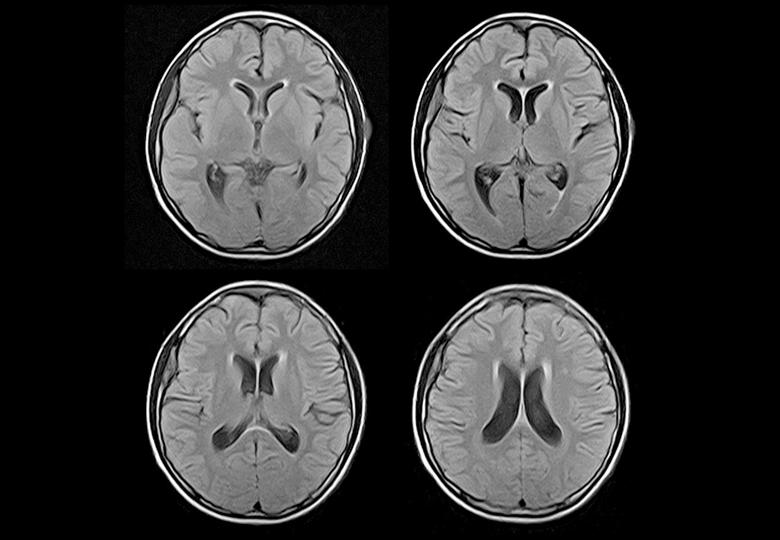

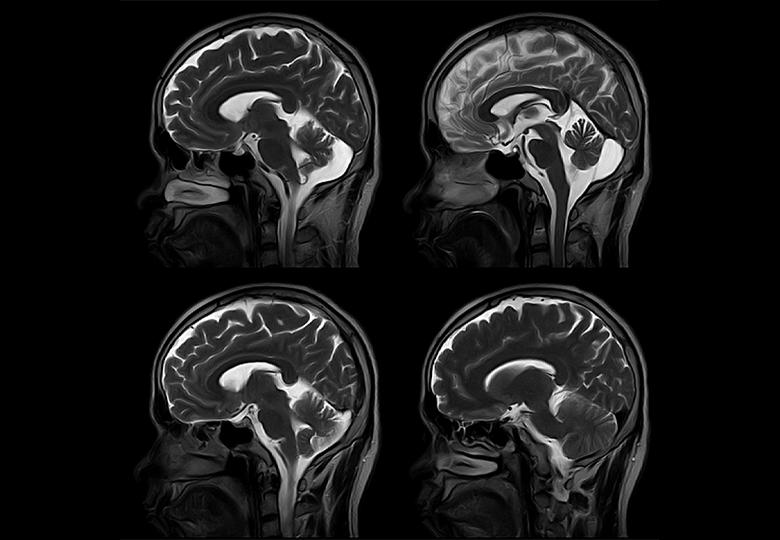

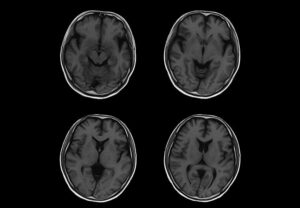

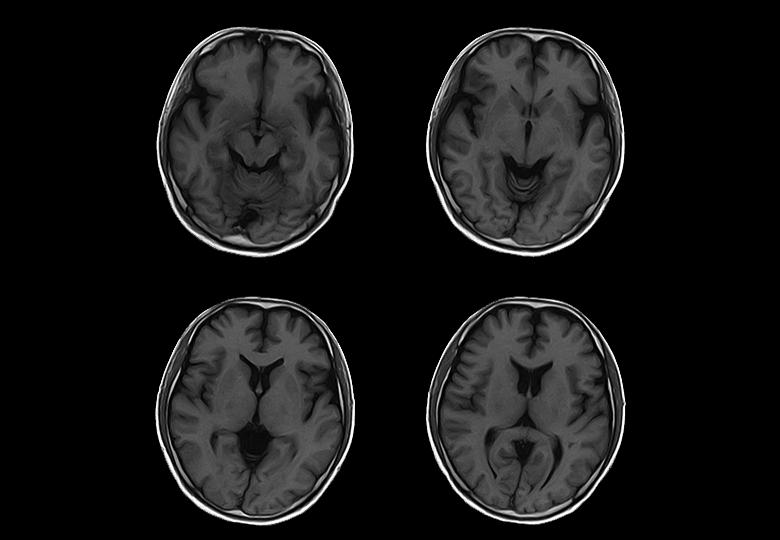

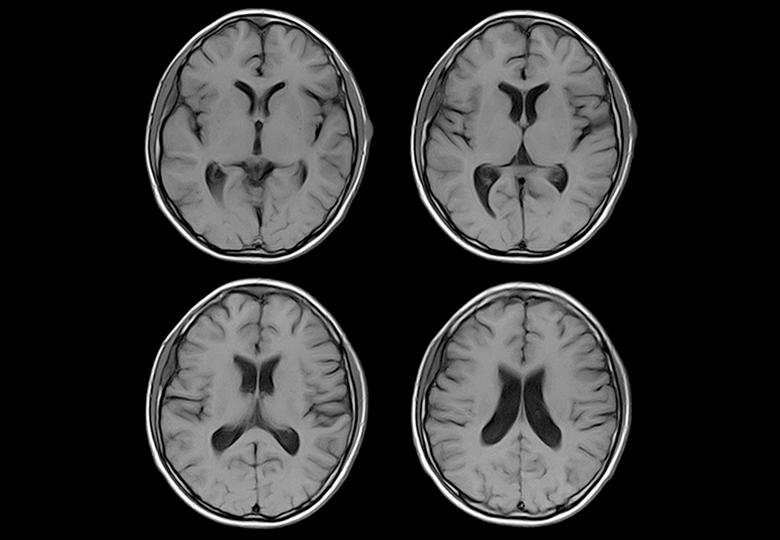

Clinical Scan Showcase: High-Definition MR Imaging
Technical Specifications
