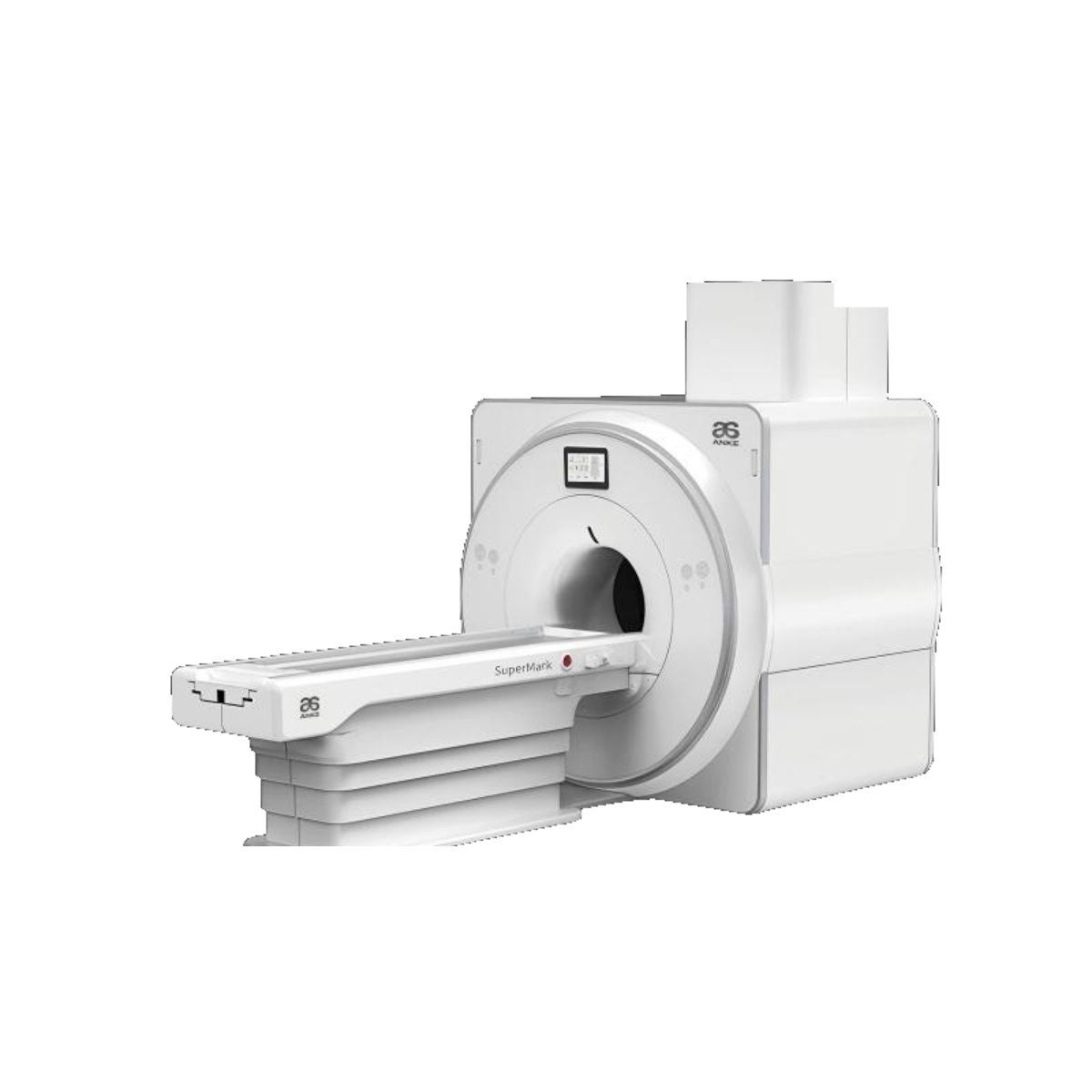

ANKE SuperMark 1.5T Superconducting MRI System
4th-Generation 1.5T Superconducting MRI System equipped with zero helium boil-off technology, 50 cm large field-of-view, ADS automatic dynamic shimming, up to 16 RF channels, and advanced molecular APT / DTI imaging. Delivers clinical excellence for high-throughput hospitals and advanced imaging centers. Supplied and serviced across the GCC with factory-backed warranty by Beamed Trading.
SuperMark 1.5T: 4th-Generation Superconducting Magnetic Resonance System
The ANKE SuperMark 1.5T is the culmination of more than three decades of MRI research and clinical innovation. Powered by a high-stability short-bore superconducting magnet with zero helium boil-off technology and a massive 50 cm spherical field of view (DSV), SuperMark 1.5T achieves outstanding diagnostic clarity for tertiary hospitals and high-volume diagnostic centers. Featuring ADS 3D Automatic Dynamic Shimming, up to 16 RF channels, and advanced molecular APT and DTI tractography capabilities, it establishes a new standard in whole-body neurological, cardiac, abdominal, and musculoskeletal precision.
1.5 Tesla Superconducting
50 cm Large DSV
Up to 16 Channels
0.00 L/yr (Zero Boil-off)
Core Technological Architecture & Innovation
Zero Boil-Off Superconducting Magnet
Short-bore superconducting magnet engineered with a high-efficiency 4K cryocooler cold-head. Achieves zero liquid helium boil-off under continuous clinical operation, drastically reducing annual helium maintenance expenses and ensuring maximum uptime.
ADS 3D Automatic Dynamic Shimming
Breakthrough 3D Automatic Dynamic Shimming (ADS) technology continuously compensates for patient-induced magnetic susceptibility distortions. Guarantees exceptional magnetic field homogeneity across a full 50 cm DSV for crisp fat saturation and artifact-free off-center joint imaging.
16-Channel RF Architecture & Super.Sense
Up to 16 independent RF channels with high-density phased array coils and digital receiver front-end. Powered by Super.Sense multi-engine acceleration, combining compressed sensing and parallel imaging to reduce routine scan times by up to 50% without SNR loss.
Advanced Molecular APT & Neuro Tractography

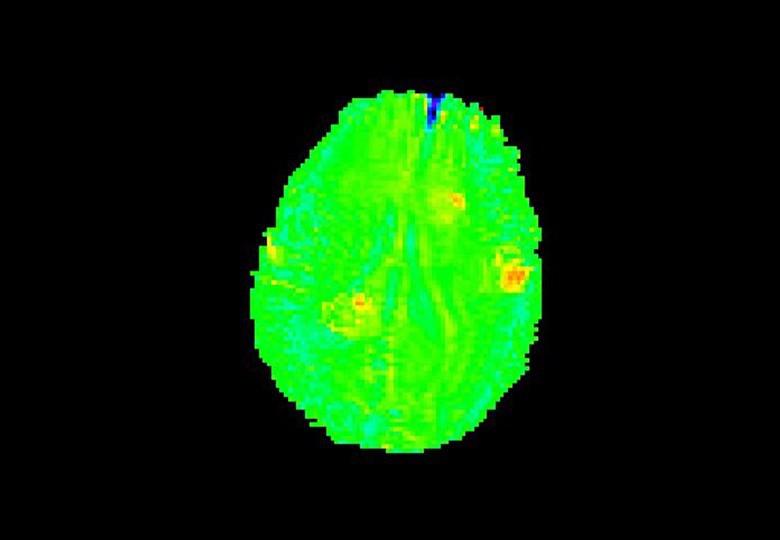

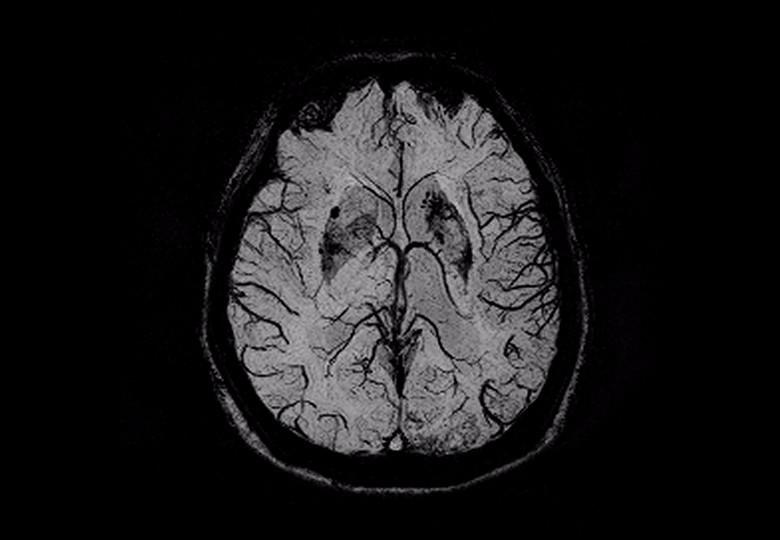

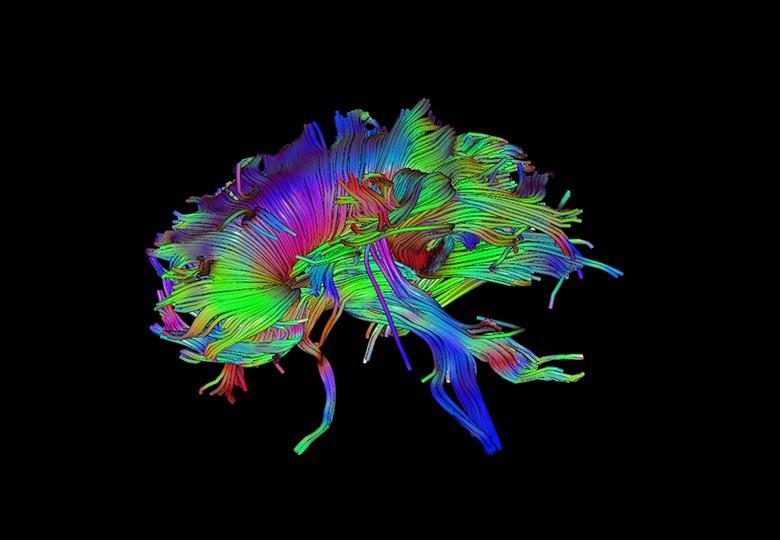

Supports state-of-the-art Amide Proton Transfer (APT) molecular MRI for non-invasive metabolic tumor grading, Susceptibility Weighted Imaging (SWI MinIP) for microbleed detection, and Diffusion Tensor Imaging (DTI) with 3D white matter fiber tractography.

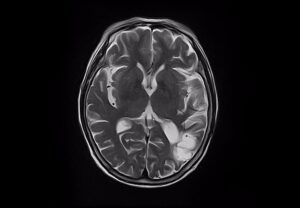

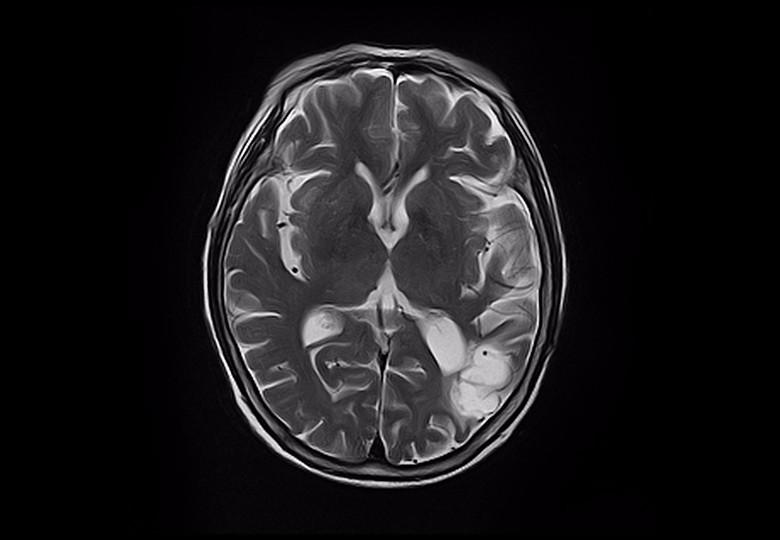

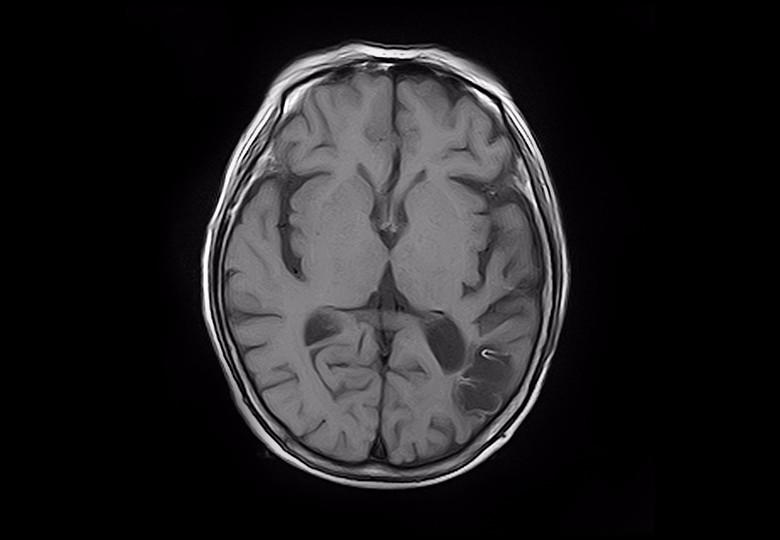

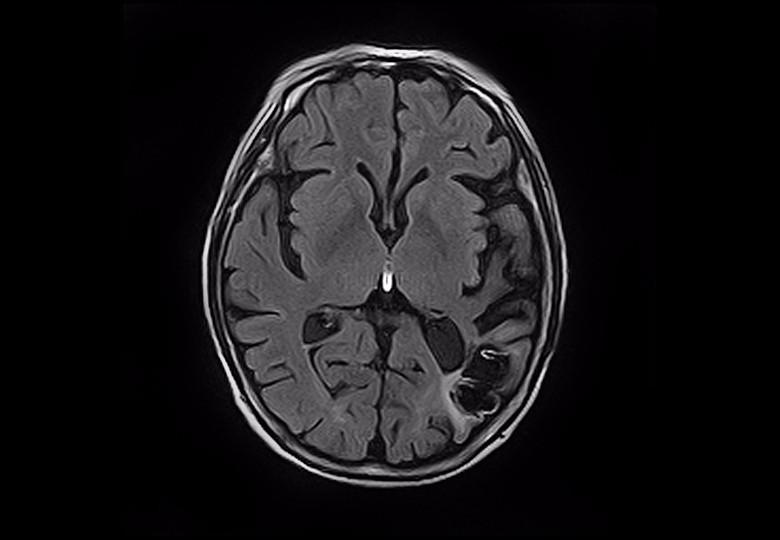

Clinical Scan Showcase: High-Field 1.5T Imaging Suite
Technical Specifications
