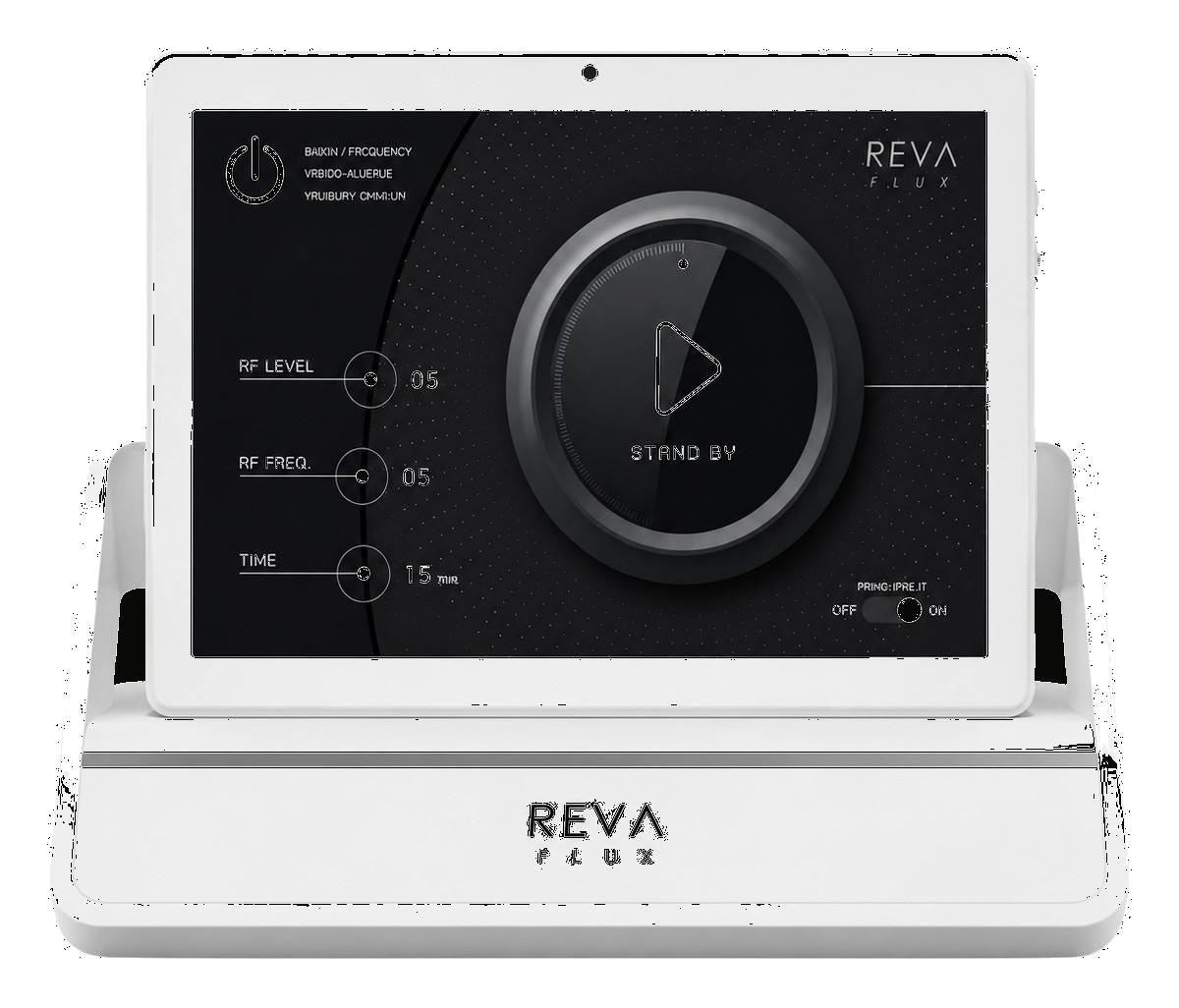

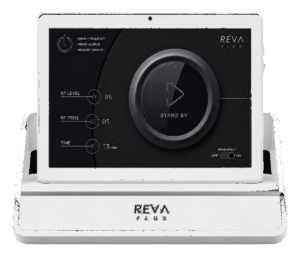

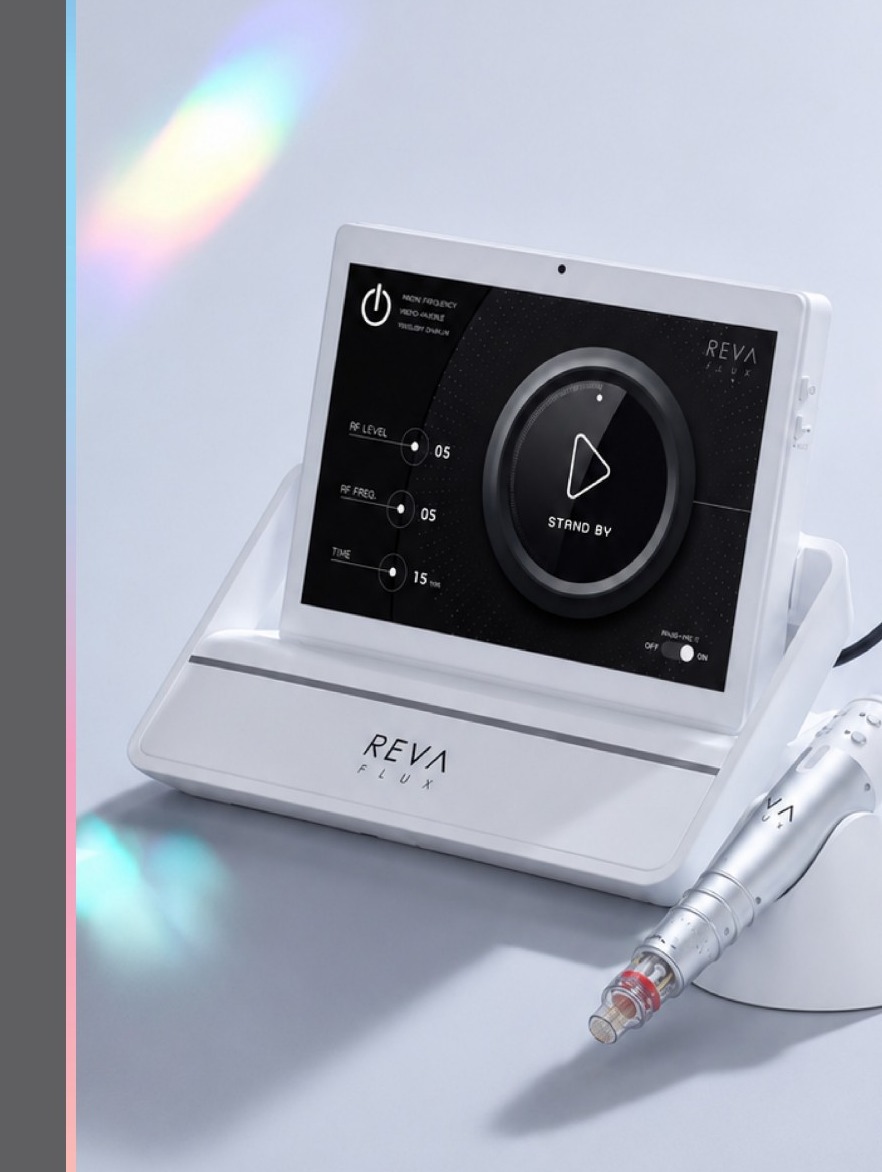

IDS REVAFLUX™ FDA-Cleared 2 MHz Bipolar RF Microneedling Platform
The IDS REVAFLUX™ is an FDA-cleared 2-in-1 medical radiofrequency microneedling pen platform combining high-frequency 2 MHz bipolar energy with ultra-fine 33G 24K gold-plated needles. Featuring dual operating modes (RF-engaged thermal coagulation vs. mechanical microneedling alone), continuous micro-depth adjustment from 0.0 to 2.0 mm, and an ergonomic circular handpiece head, REVAFLUX safely addresses deep acne scars, skin laxity, and periorbital rhytids.
IDS REVAFLUX™ FDA-Cleared 2 MHz Bipolar RF Microneedling Platform
Engineered and manufactured in South Korea for demanding dermatological protocols, the REVAFLUX™ bridges the gap between precision mechanical micro-channeling and therapeutic RF electro-thermal coagulation. Operating at 2 MHz bipolar radiofrequency across 5 clinical energy levels, REVAFLUX delivers targeted thermal coagulation at the precise needle depth (+4.5°C coagulative heating) while preserving the stratum corneum (+0.7°C surface rise). With FDA 510(k) clearance, twist-lock single-use 13-pin gold cartridges, and customizable pulse durations, REVAFLUX offers unmatched control across facial contours, delicate periorbital regions, and body zones.
Bipolar Dermal Coagulation & Fractional Collagen Induction Therapy
Mechanical micro-punctures initiate the body’s natural wound-healing cascade, stimulating platelet-derived growth factors and angiogenesis. Simultaneously, 2 MHz bipolar radiofrequency current flows between adjacent needle tips, generating controlled thermal coagulation zones within the reticular dermis. This induces immediate contraction of existing collagen fibrils and initiates long-term neocollagenesis and neoelastogenesis without damaging the overlying epidermal barrier.
Dual Operating Modality (RF On / RF Off)
Allows instant toggling between RF electro-thermal RF coagulation for lifting/tightening and purely mechanical micro-channeling for sensitive protocols and mesotherapy infusion.

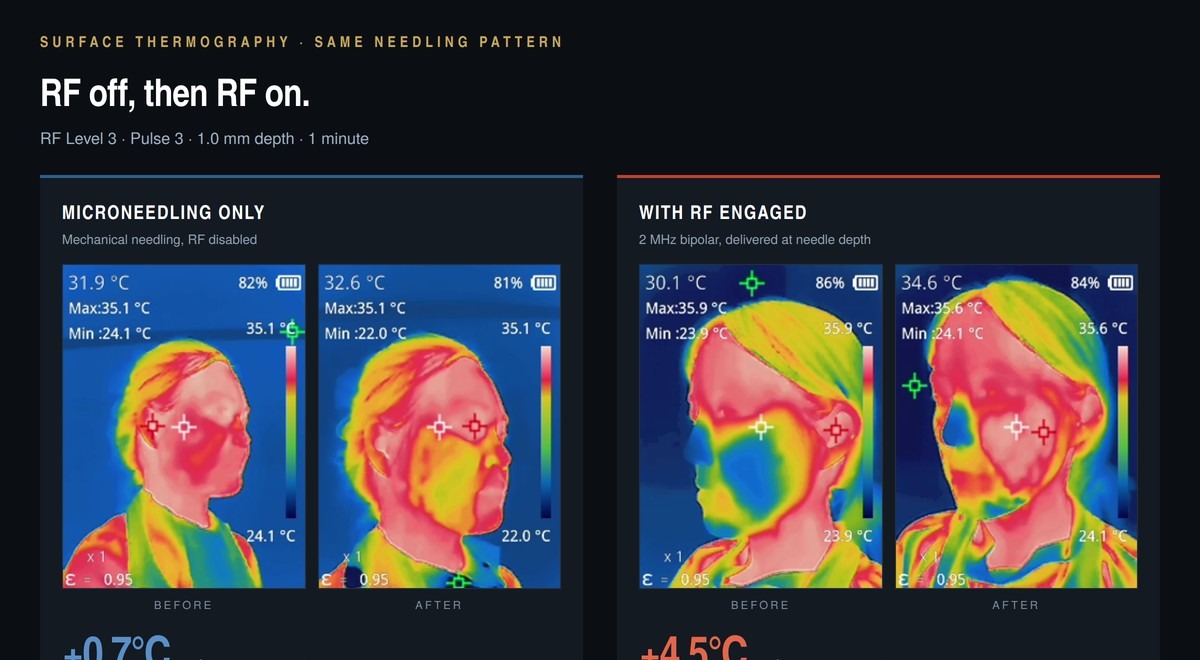

Precision Dermal Thermography
Clinical infrared thermography confirms deep thermal coagulation (+4.5°C) concentrated at the needle depth while surface epidermal heating is restricted to a gentle +0.7°C.
24K Gold-Plated 33G Needles
13-pin circular array crafted from medical stainless steel electroplated with pure 24K gold for maximum conductivity, biocompatibility, and smooth penetration with minimal drag.
Key System Capabilities & Workflow Advantages
FDA 510(k) Cleared Platform
Validated under rigorous medical device standards for dermatological procedures and prescription clinical use.

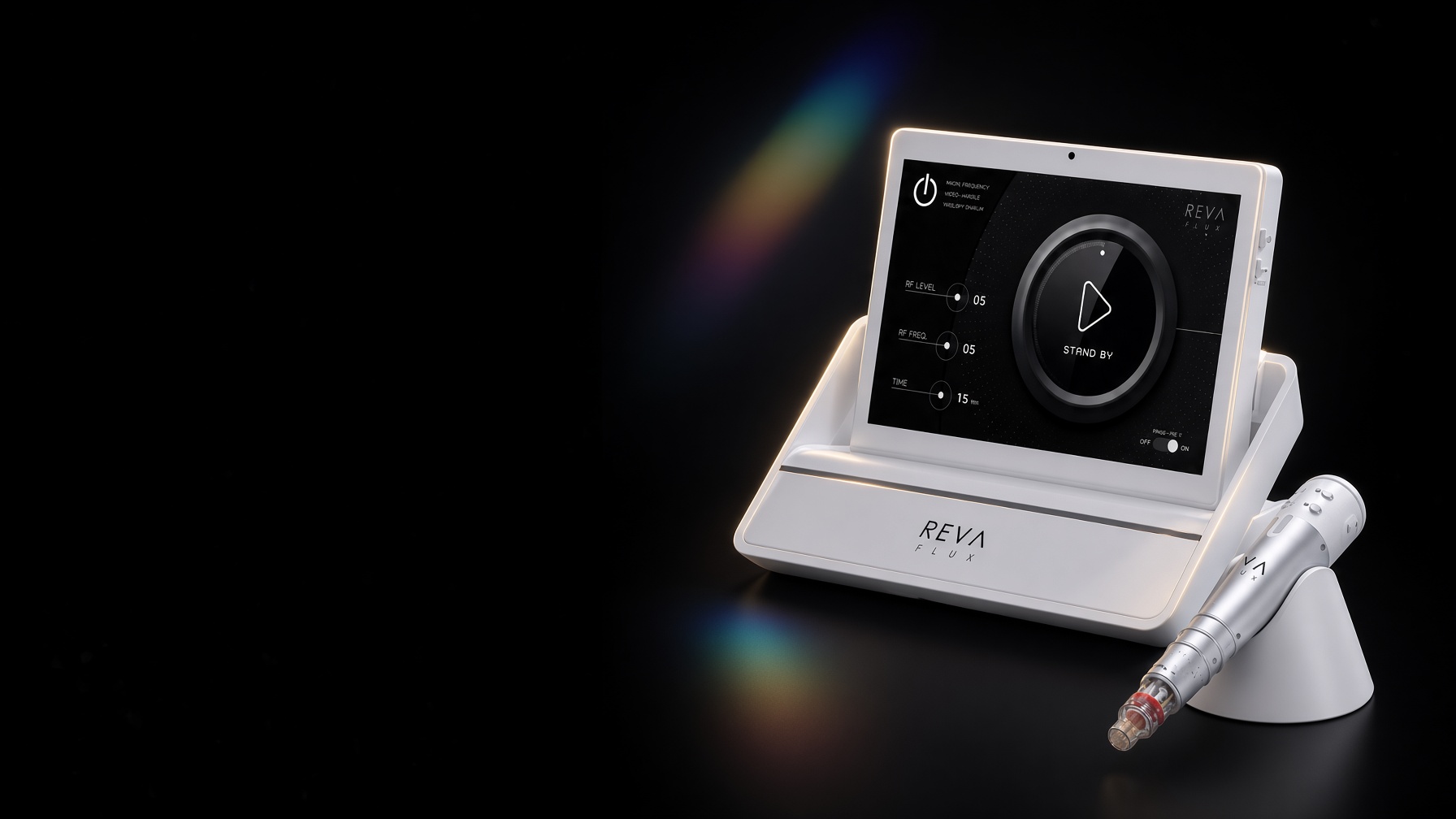

Circular Ergonomic Pen Head
Circular tip profile conforms smoothly to curved facial planes, periorbital rims, nasal alae, and perioral zones where bulky square tips fail.
5-Level RF Energy Calibration
Levels 1–4 deliver discrete pulsed RF bursts for fine rhytids and thin skin; Level 5 provides continuous coagulative RF for dense fibrotic scars.

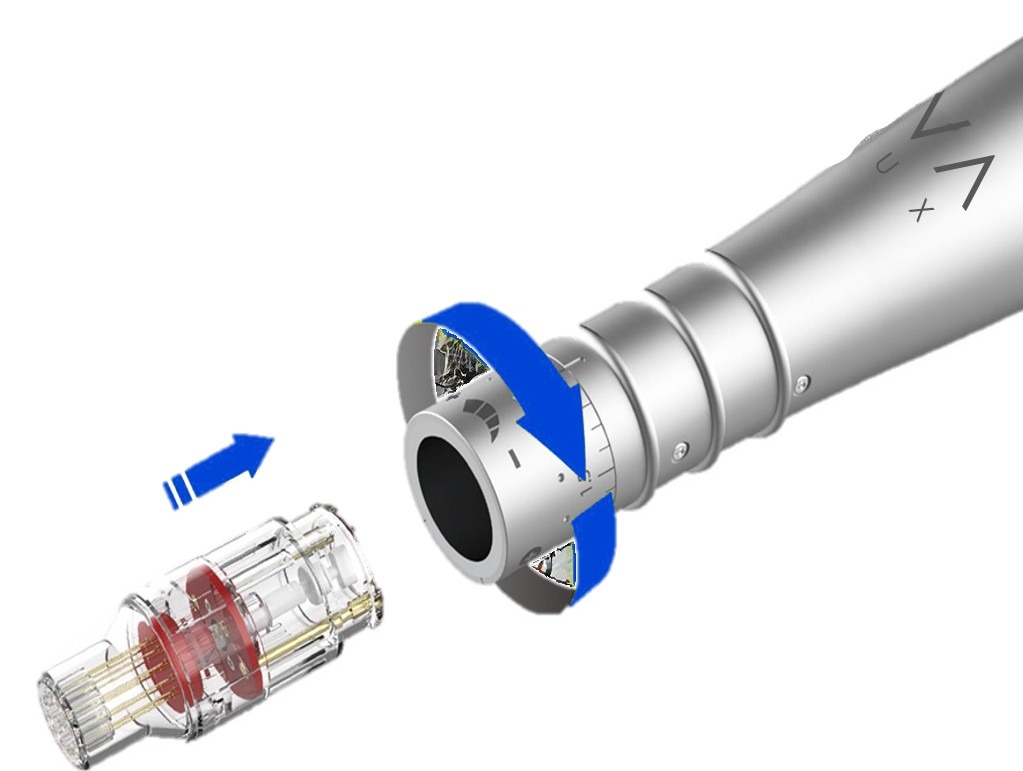

Hygienic Twist-Lock Cartridges
Single-use, individually sterilized cartridges install in seconds with a secure twist-lock mechanism to prevent needle vibration and cross-contamination.
Adjustable Clinical Timer
Integrated timer from 5 to 40 minutes assists practitioners with structured session pacing and standardized protocol adherence.
Versatile Application Technique
Supports precise vertical stamping as well as shallow gliding passes in experienced hands for rapid textural conditioning.
Clinical Indications & Institutional Environments
Scar Revision
- Atrophic Acne Scars (Rolling, Boxcar)
- Post-Surgical & Traumatic Scars
- Chickenpox & Post-Infection Marks
- Fibrotic Tissue Softening
- Depressed Facial Scars
Skin Tightening & Anti-Aging
- Mild-to-Moderate Skin Laxity
- Periorbital Fine Lines & Crow’s Feet
- Perioral Rhytids (Smoker’s Lines)
- Submental & Jawline Definition
- Neck Laxity & Horizontal Bands
Texture & Pores
- Enlarged Pores & Excessive Sebum
- Rough Coarse Skin Texture
- Striae Distensae (Stretch Marks)
- Dull Dehydrated Epidermis
- Transdermal Active Serum Infusion
Practice Environments
- Dermatology Clinics
- Plastic & Cosmetic Surgery Practices
- Medical Spas & Aesthetic Centers
- Anti-Aging & Regenerative Clinics
- Specialized Scar Treatment Centers
Engineering Specifications & Compliance Standards
| Device Classification | FDA 510(k) Cleared Prescription Medical Device |
| Technology Architecture | 2-in-1 Bipolar Radiofrequency Microneedling Pen |
| Radiofrequency Frequency | 2 MHz Bipolar RF |
| RF Energy Levels | Levels 0 – 5 (0 = Mechanical Only · 1–4 = Pulsed RF · 5 = Continuous RF) |
| Needle Configuration | 13-Pin Circular Configuration, 33G Ultra-Fine |
| Needle Coating | 24K Gold-Plated (Superior Conductivity & Biocompatibility) |
| Adjustable Depth Range | 0.0 mm – 2.0 mm (Continuous Micro-Adjustment) |
| Cartridge Type | Disposable Sterile Twist-Lock (8 ea / Box) |
| Session Timer Range | 5 – 40 Minutes |
| Control Interface | Digital Touch Controller Console with Lightweight Handpiece |
| Surface vs Dermal Heat | +0.7°C Epidermal Rise / +4.5°C Dermal Coagulative Rise |
| Electrical Power | AC 100–240 V, 50/60 Hz |
| Origin | IDS (Innovative Device Solutions), South Korea |
Official Regional Distribution & Technical Support
Authorized IDS Lasers Partner • Beamed Trading
All IDS aesthetic and medical laser platforms distributed by Beamed Trading include certified manufacturer warranty, factory-trained biomedical engineering maintenance, protocol certification, and direct regional spare-parts supply across the GCC.
