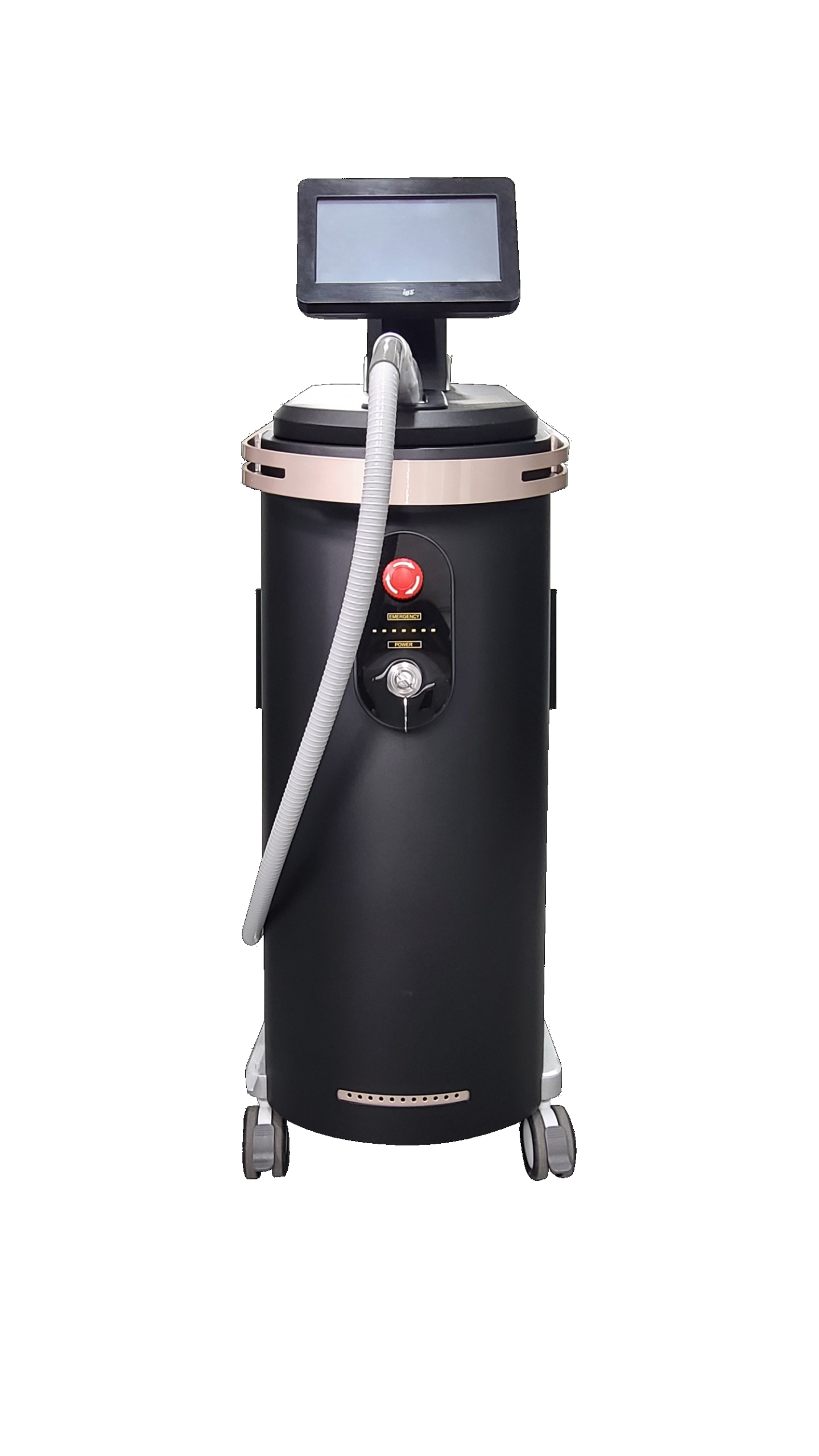

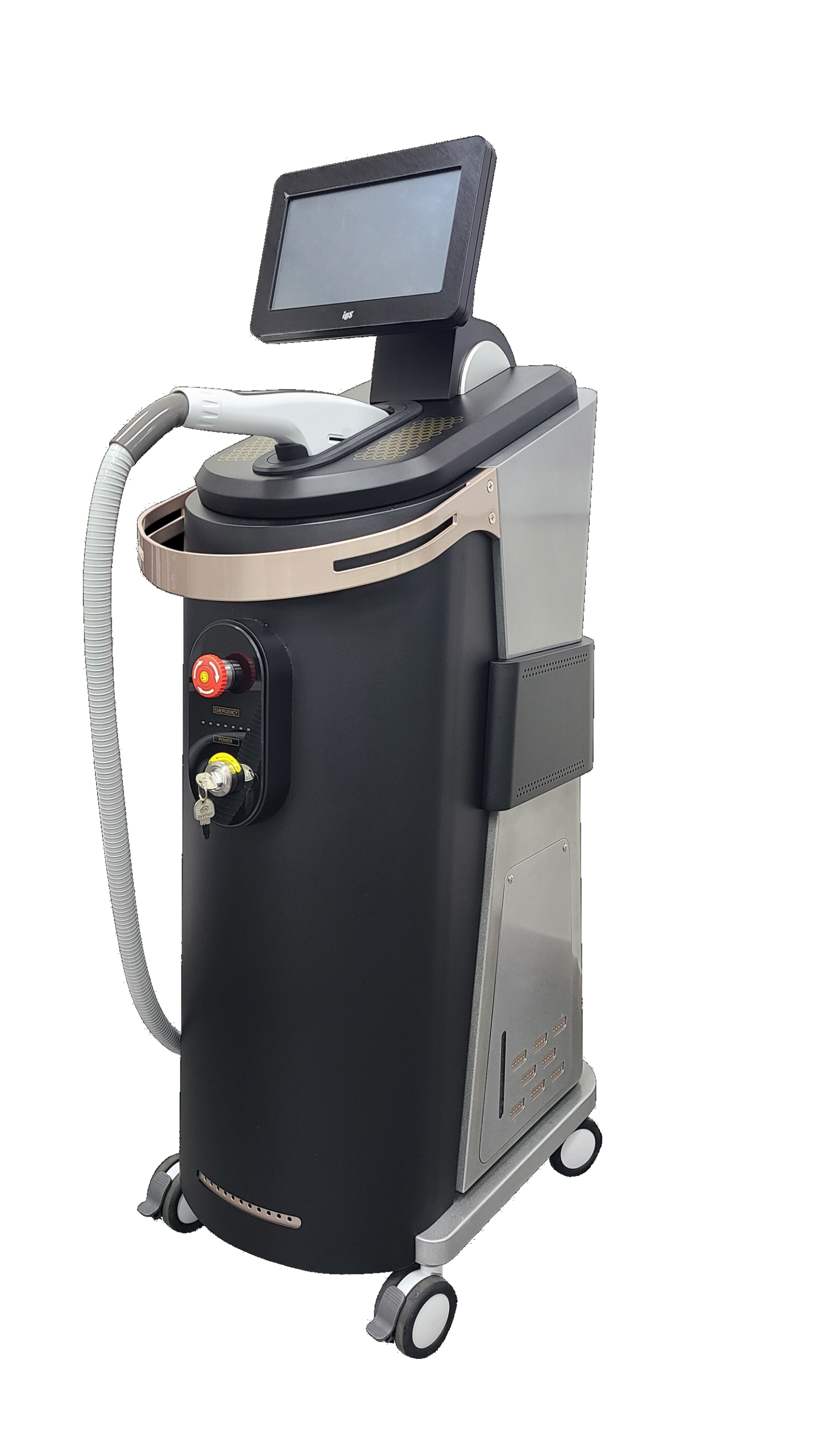

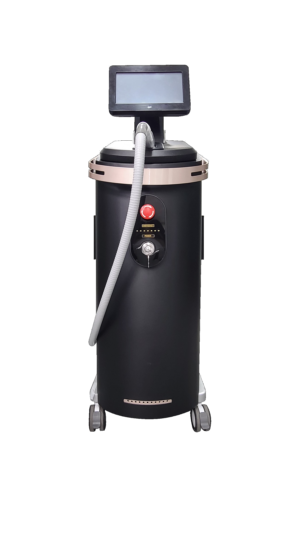

IDS SHINY PLUS™ Micro Pulsed Light (IPL) Platform
The IDS SHINY PLUS™ is a multi-application Micro Pulsed Light (IPL) platform equipped with a 42.6 × 14.3 mm sapphire light guide partitioned into 140 micro-cells. Delivering seven interchangeable optical cut-off filters from 415 to 755 nm with integrated contact cooling to 5°C, SHINY PLUS prevents peripheral hot spots and tiger-striping for safe, effective photorejuvenation, vascular clearing, and high-speed hair removal across all skin types.
IDS SHINY PLUS™ Micro Pulsed Light System with 140 Multi-Cell Sapphire
Engineered to solve the common pitfalls of legacy IPL devices, SHINY PLUS™ features an optical breakthrough: a large 42.6 × 14.3 mm sapphire treatment window segmented into 140 individual optical micro-cells. This patented distribution equalizes energy density across the entire pulse footprint, preventing edge concentration that causes burns, tiger-striping, or post-inflammatory hyperpigmentation. Supported by seven precision cut-off filters, continuous 5°C sapphire contact cooling, and rapid gliding SHR modes up to 10 Hz, SHINY PLUS provides gold-standard outcomes for vascular, pigmented, and hair removal indications.
140 Multi-Cell Homogenization & Selective Photothermolysis
Traditional monolithic IPL crystals suffer from edge scatter and hot-center light refraction, resulting in irregular energy absorption and uneven thermal injury. SHINY PLUS’s 140-cell sapphire crystal segments the light wavefront into distinct collimated beams. This prevents bulk heat spikes while maintaining peak fluence across the full optical aperture, allowing practitioners to safely treat sensitive vascular targets, melanin clumping, and hair follicles on Fitzpatrick types I through V.

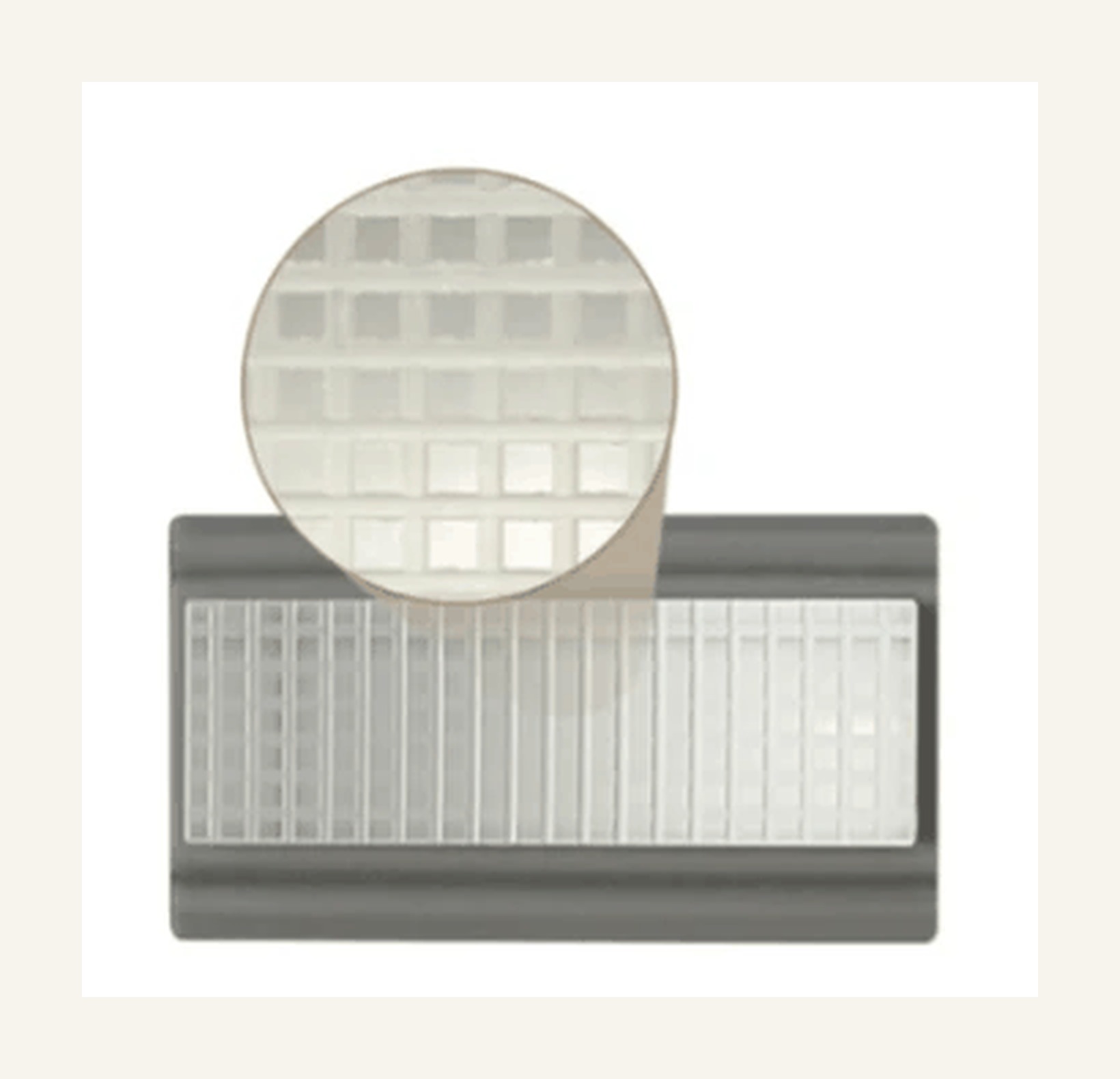

140 Multi-Cell Light Distribution
Eliminates hot spots, tiger-striping, and surface blisters by balancing light transmission uniformly across 140 micro-apertures in the sapphire guide.

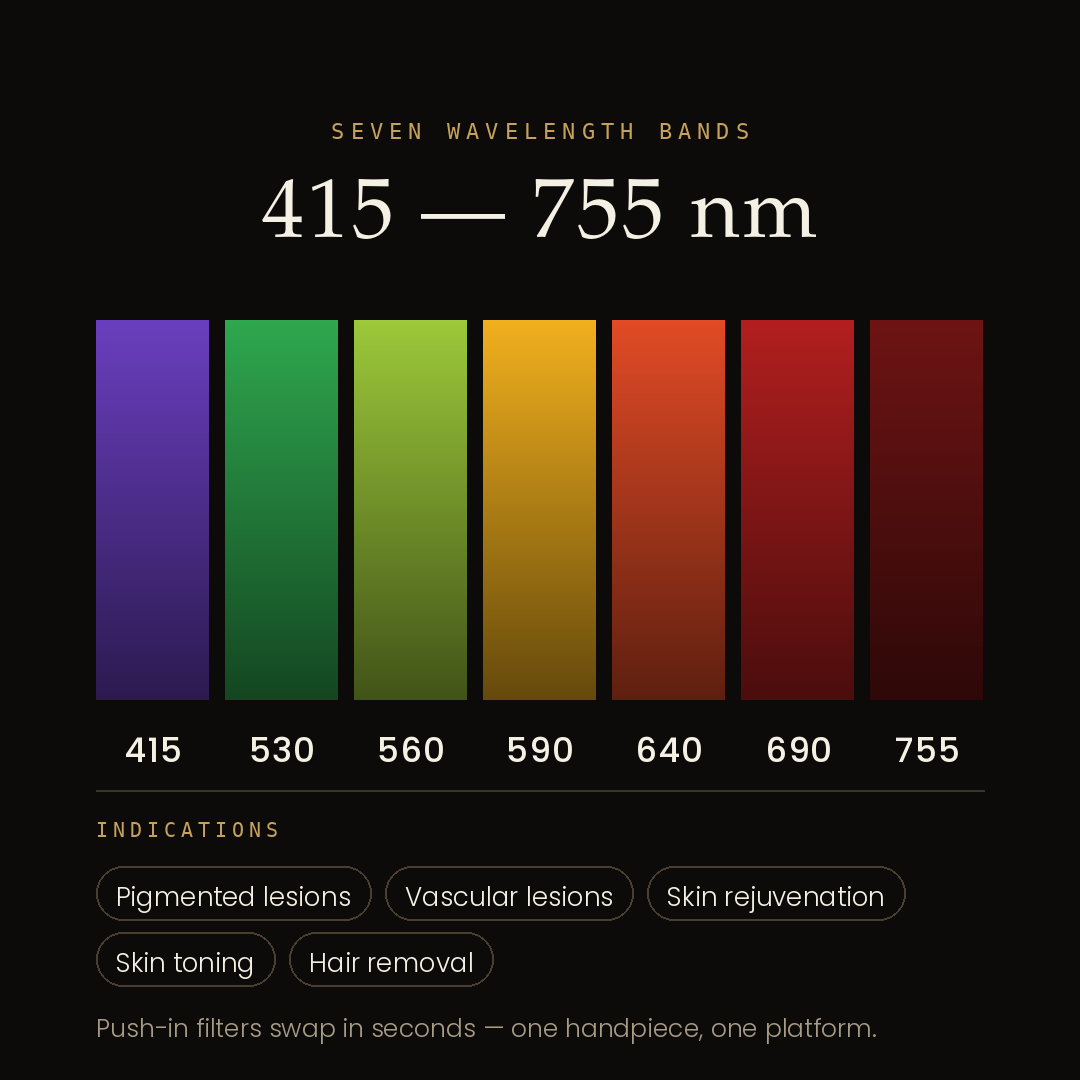

7 Precision Optical Cut-Off Filters
Interchangeable filters target specific chromophores: 415 nm for P. acnes porphyrins; 530/560/590 nm for vascular and epidermal pigment; 640/690/755 nm for deep melanin and hair follicles.
Active 5°C Sapphire Contact Cooling
High-capacity Peltier cooling continuously preserves the epidermis at 5°C throughout treatment, ensuring maximal patient comfort and enabling higher therapeutic fluences.
Key System Capabilities & Workflow Advantages
Large 42.6 × 14.3 mm Treatment Aperture
Substantially speeds up full-face, chest, and body sessions, delivering rapid patient turnaround and boosting clinic productivity.
Multi-Pulse Sequence Customization
Select from Single, Double, Triple, Stamp, Dynamic, and continuous Super Hair Removal (SHR) modes tailored to individual lesion depth.
Variable Pulse & Delay Control
Pulse durations from 0.2 to 16 ms and thermal relaxation delays from 1.0 to 90 ms ensure gentle thermal transfer into surrounding dermis.
High Repetition Gliding Speed
Operates up to 10 Hz (clinical gliding up to 5 Hz), transforming full-leg and full-back hair removal into fast, virtually painless treatments.
Safe on Darker & Tanned Skin
Even energy diffusion and long cut-off filters allow confident treatment of Fitzpatrick phototypes III–V without post-inflammatory rebound.
Medical Grade Xenon Arc Lamp
High-output xenon flashlamp engineered for exceptional pulse-to-pulse consistency and long operating life.
Clinical Indications & Institutional Environments
Vascular & Redness
- Facial Telangiectasia & Broken Capillaries
- Rosacea & Chronic Erythema
- Spider Angiomas & Hemangiomas
- Port Wine Stains (Superficial)
- Poikiloderma of Civatte
Pigment & Photo-Damage
- Solar Lentigines & Liver Spots
- Ephelides (Freckles)
- Sun Damage & Dyschromia
- Diffuse Mottled Pigmentation
- Dull Tone & Uneven Complexion
Hair Removal & Acne
- Fast Painless Hair Reduction (All Body Zones)
- SHR In-Motion Gliding Mode
- Active Inflammatory Acne (415 nm Filter)
- Folliculitis & Pseudofolliculitis
- Sebum Regulation & Porphyrin Reduction
Practice Environments
- Aesthetic Dermatology Clinics
- Medical Spas & Laser Lounges
- Multi-Specialty Cosmetic Practices
- Plastic Surgery Day Centers
- Laser Hair Removal Clinics
Engineering Specifications & Compliance Standards
| Light Source Technology | Intense Pulsed Light (Medical Xenon Lamp) |
| Wavelength Filters | 7 Cut-Off Filters: 415 · 530 · 560 · 590 · 640 · 690 · 755 nm |
| Spot Size Dimension | 42.6 × 14.3 mm (Multi-Cell Sapphire Guide) |
| Sapphire Crystal Design | 140 Individual Optical Cells (Anti-Tiger Striping) |
| Energy Fluence Range | 1.0 – 32.0 J/cm² |
| Pulse Sequences | Single · Double · Triple · SHR · Dynamic · Stamp |
| Pulse Duration Range | 0.2 – 16.0 ms |
| Pulse Delay Range | 1.0 – 90.0 ms |
| Repetition Frequency | 1 – 10 Hz (Clinical Use up to 5 Hz in SHR) |
| Optical Conduction | Quartz / Sapphire Direct Coupling |
| Contact Skin Cooling | Continuous Thermoelectric Sapphire Chill to 5°C |
| Platform Dimensions | 360 × 520 × 1,230 mm |
| Net Weight | 49 kg |
| Electrical Power | AC 230 V, 6 A, 50/60 Hz |
Official Regional Distribution & Technical Support
Authorized IDS Lasers Partner • Beamed Trading
All IDS aesthetic and medical laser platforms distributed by Beamed Trading include certified manufacturer warranty, factory-trained biomedical engineering maintenance, protocol certification, and direct regional spare-parts supply across the GCC.
Related products
Dermatology Division
Genefill Contour Pioneering Dedicated Body Filler · Hand Rejuvenation & Silhouette Contouring. BioScience GmbH (Germany) certifi...
Dermatology Division
Dermatology Division

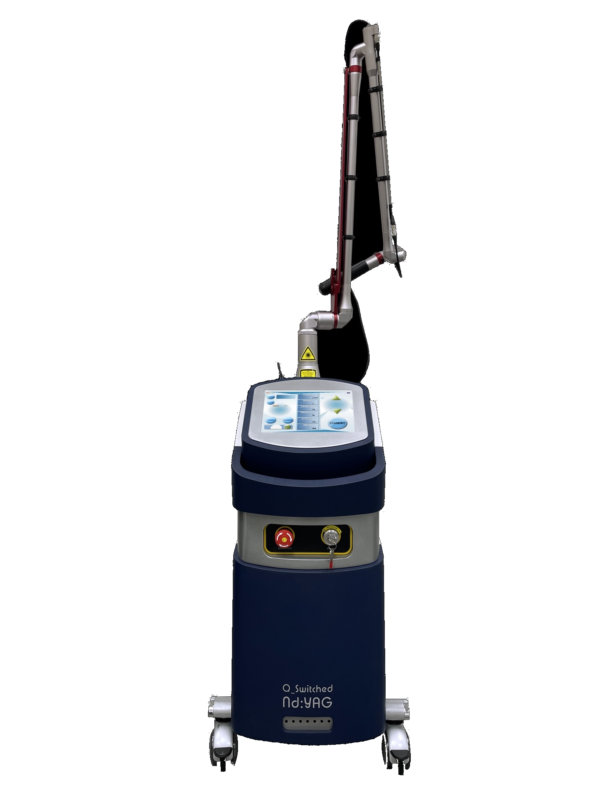

IDS Q10 PREMIUM™ Dual-Pulse Q-Switched & Long-Pulse Nd:YAG Laser Platform
The IDS Q10 PREMIUM™ combines high-energy Q-switched Nd:YAG laser engineering with Photoacoustic Twin Pulse (PTP) technology deliver...
Dermatology Division

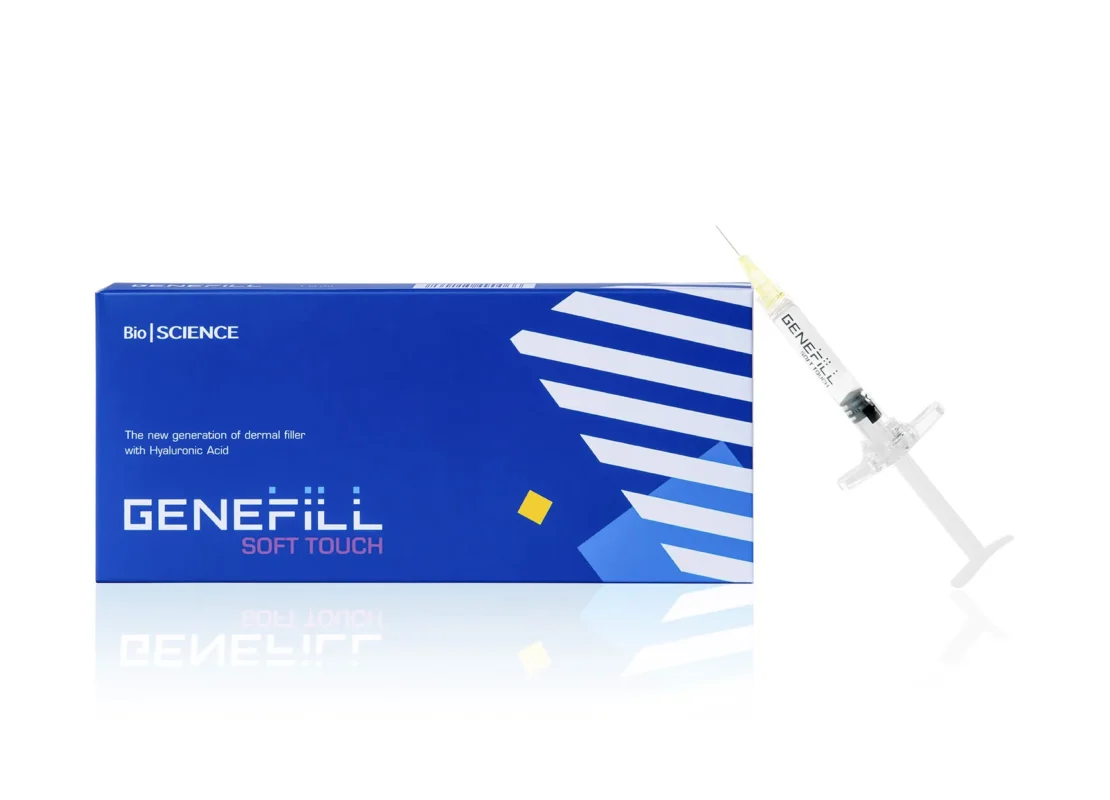

Genefill Soft Touch Texture Restoration · Natural Glow · Superficial Fold Correction. BioScience GmbH (Germany) certified premium de...
