MiS | MLS High Peak Pulse
MLS® High Peak Pulse
Action on the pain and its causes.
MiS is a device with never-before-seen performance, capable of combining the synchronized action of MLS® Laser Therapy with Hilterapia® distinctive pulsed power.
The very high, instantaneous peak power and a controlled average power are consistent with the choice of pursuing efficacy while safeguarding patients’ safety. The modulation in short pulses allows in fact to “tame” the peak power, taking advantage of its therapeutic benefits in complete safety, avoiding damaging thermal effects.
In addition to the therapeutic characteristics typical of the MLS® family, MiS finds an application in peripheral neuropathies, as demonstrated by ASAcampus scientific research.
The application of MiS in a recognized model of chronic neuropathic pain shows a clear and lasting reduction in pain symptomatology, accompanied by functional recovery. From the biological point of view, the treatment with MiS promotes the recovery of the nerve fibres that have been damaged in the lesion area, as confirmed by histological and immunohistochemical evaluations. Specifically, sheath reorganization is important both for nerve trophism and conduction.
Thus, MiS is particularly indicated for the treatment of neuropathic pain.
Boosted MLS®
It inherits the demonstrated efficacy and therapeutic superiority of the synchronised emission of MLS® (continuous and pulsed wavelengths, 808nm + 905nm) and it enhances the peak power of the pulsed component.
Homogeneity of treatment
The spatial overlap between the different wavelengths ensures the diffusion of the MiS energy mix on the irradiated area. The adopted optical technology allows a uniform beam profile and a homogeneous energy distribution on the target area.
Game-changing Technology
It has gone beyond the technological state of the art by optimizing the fibre coupling of 7 diode laser sources, pulsed and continuous, reaching peak powers of 1kW and an emission quality of very high level.
Safety
The very high instantaneous power is modulated through very short pulses that allow the stimulation of the therapeutic biological processes while maintaining control of the thermal effect and therefore the safety of the treatment, which has always been an essential requirement for ASA.
Ergonomics and practicality
Light, compact, and multifunctional handpiece. The mechanical connection system of the optical terminals has been designed to allow immediate interchangeability and is equipped with a recognition sensor to adjust the emission parameters automatically.
Optic fibre
It combines in a single bundle the multisource power, maximizing the therapeutic performance. Flexible, handy, and durable thanks to the internal steel sheath.
Technical characteristics
- 6 pulsed laser diodes (PW) @905nm
- 1 Continuous/Frequency-modulated laser diode (CW/FW) @808nm
- Average power (max): 6W ± 20%
- Peak power (max): 1kW
- 4 emission methods:
Synchronized Continuous/Frequency-modulated and Pulsed at maximum peak power (MLS HPP 808+905nm)
Synchronized Continuous/Frequency-modulated and Pulsed (MLS® 808+905nm)
Single Continuous/Frequency-modulated (808nm)
Single Pulsed (905nm) - Frequency: variable according to modulation
- Intensity: from 1% to 100%
- Time: from 1 sec to 30 min
- Over 25 control sensors for very high levels of performance and safety
- Intelligent battery that keeps the device in stand-by when not connected to the mains

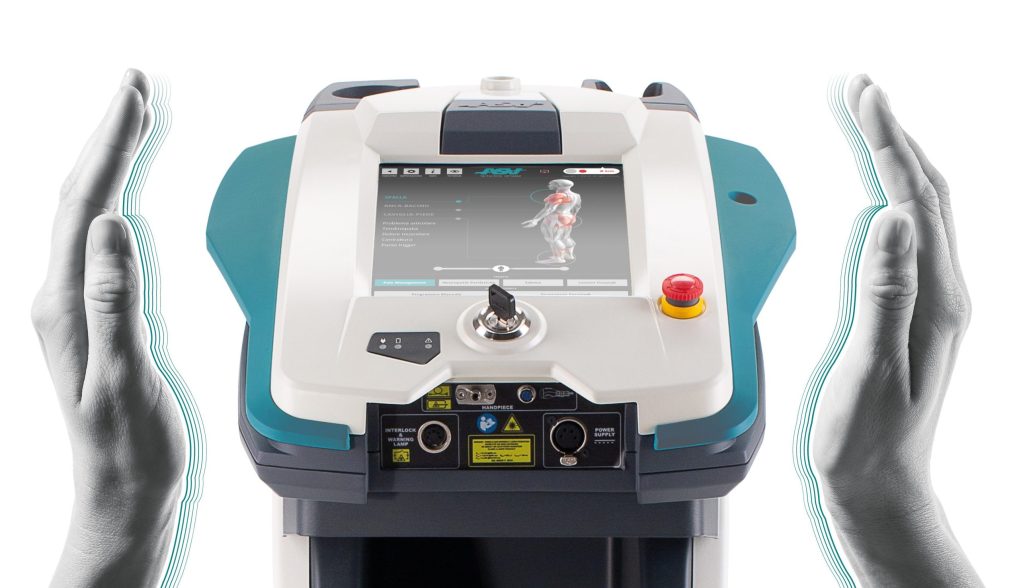

- High resolution 10” LCD touchscreen
- Integrated handpiece holder and optical terminals holder
- Laser applicator:
1500 μm optical fibre
Patent pending mechanical system for rapid connection between handpiece and optical terminal, with integrated recognition system
Ergonomic handpiece with a button to control the emission and multicolour LED to indicate the status of the machine at any time
- Handpiece with 2 cm optical terminal
2 cm diameter homogeneous target area
Collimated beam for maintaining the spot size both at contact and at a distance
Ideal for treating trigger points, intra-articular areas, muscle bands - Handpiece with 5 cm optical terminal
5cm diameter homogeneous target area
Automatic adjustment of the parameters to optimize the intensity on the tissue

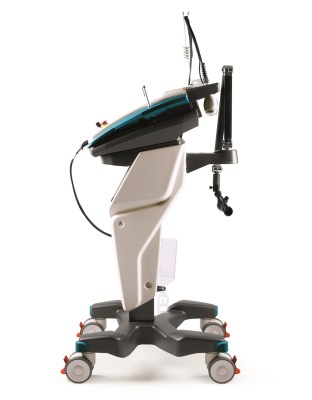

Ideal for the treatment of large anatomical areas homogeneously, reducing treatment times - Trolley
Tool-carrying trolley with magnetic fixing system
4 swivel wheels with self-locking system suitable for all floors
Glasses compartment - Jointed arm

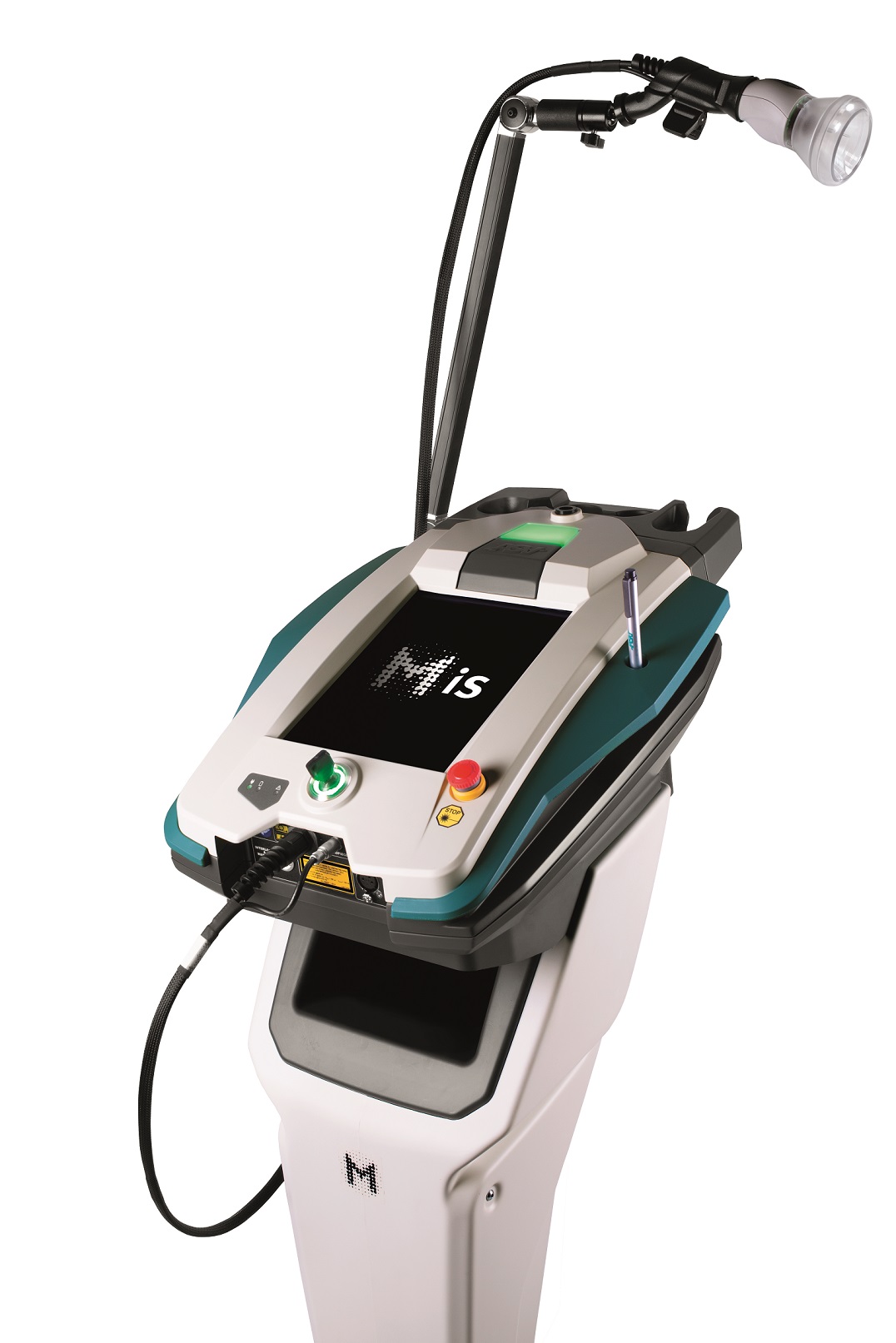

Handpiece holder arm for fixed point use equipped with sphere and joints
SIZE AND WEIGHT
- 56 x 47,4 x 147 cm
- 25 kg
POWER SUPPLY
- 100-240V 50-60Hz

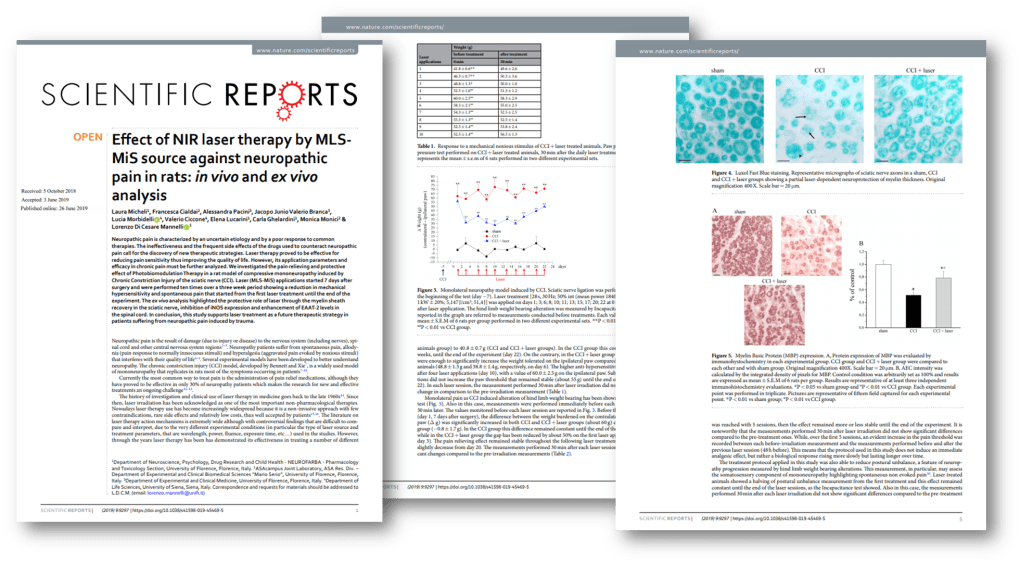

Effective against neuropathic pain
Studies in animal models show a reduction in pain and the protective role on the myelin sheath.
MLS® Laser Therapy
MLS® Laser Therapy comes from ASA’s scientific research to overcome the limits of traditional laser therapy and at the same time to exploit the advantages of low and high power through a patented quality impulse.
