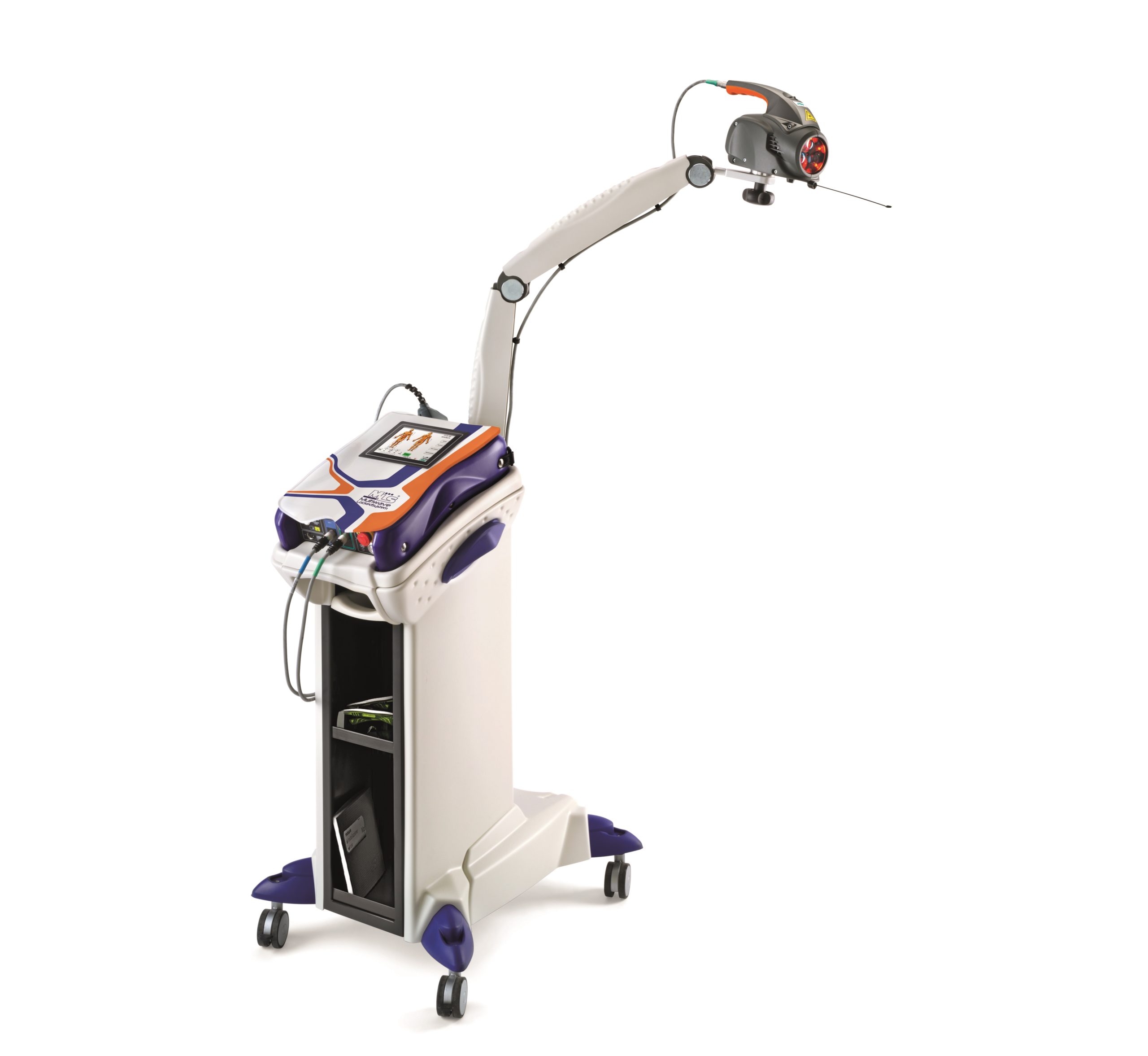

Mphi 75.5

The 2 in 1 solution. With 75W peak power.

Categories: Laser Therapy, Physiotherapy Division Brand: ASA Laser Brand: ASA Laser

Description
Reviews (0)

Twice as effective and hands-free.
In total safety.

Mphi 75.5 is a further evolution of the MLS^® family: the therapeutic effects and application options of the MLS^® family are increased thanks to the 75W peak power handpieces and a number of highly specialised distinctive features, such as the conical light guide for laser acupuncture treatments.

The enhanced MLS^® pulse results in faster improvement of symptoms with reduced treatment times also in “hands-free” mode thanks to the fixed pointer of the Charlie Orange multidiodic applicator.

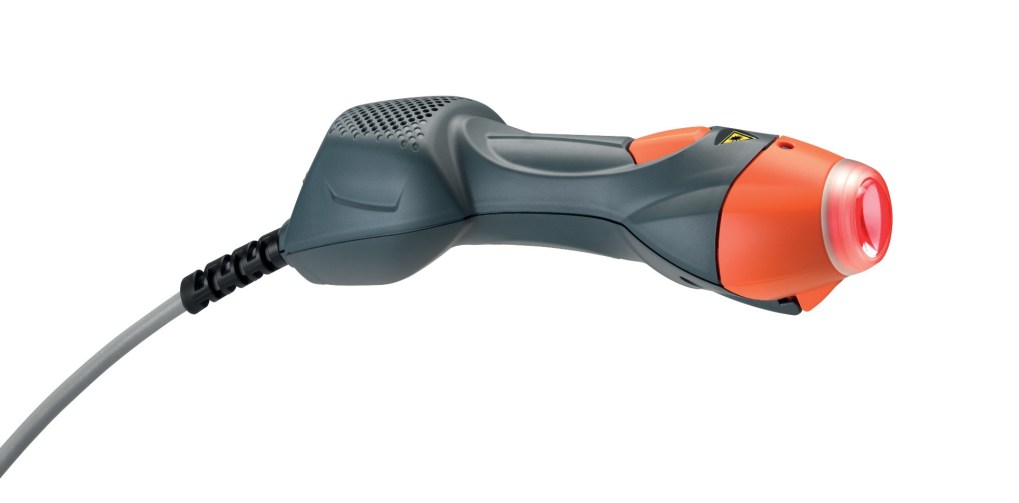

Handpiece

1 MLS^® source – 75 W Peak Power
Ø2 cm Target Area

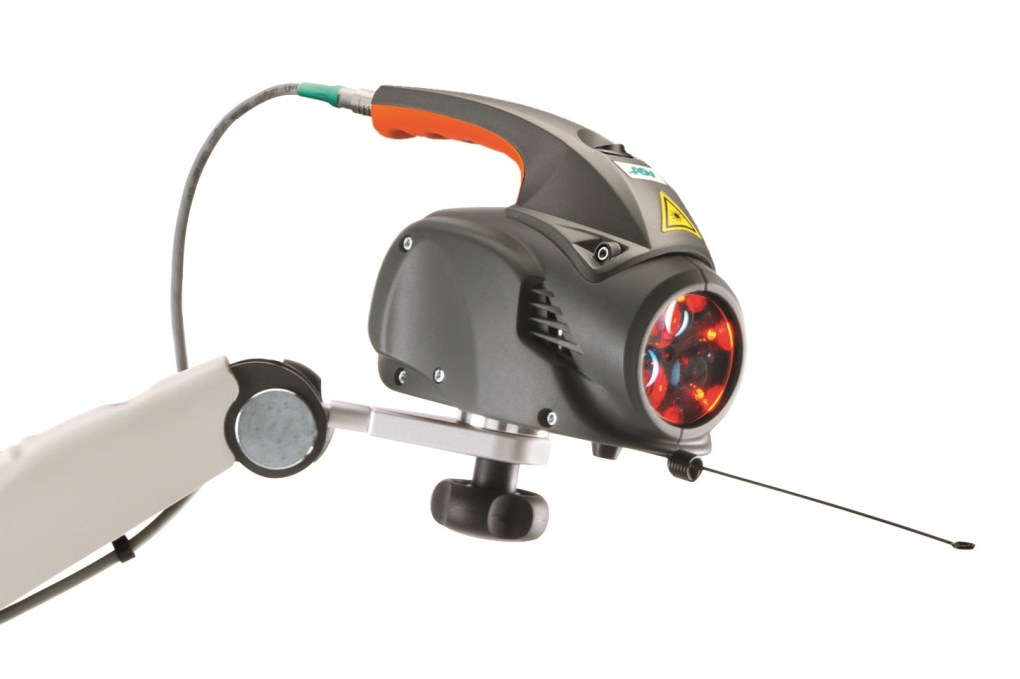

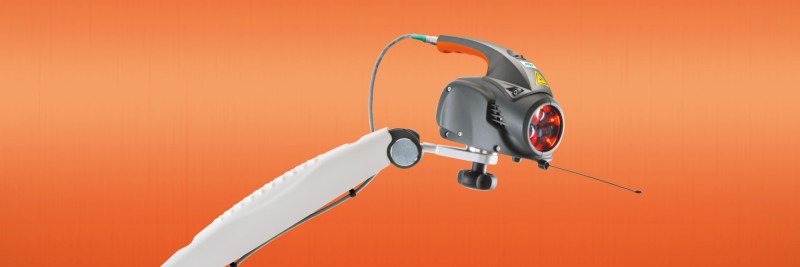

Multidiodic applicator Charlie Orange

3 MLS^® sources – 3 x 75 W Peak Power
Ø5 cm Target Area

Technical characteristics

- Simultaneous management of two independent channels
- Multidiodic applicator Charlie Orange with optical group composed of 3 MLS^® sources power up to 3.6 W – Peak Power 3 x 75 W
  Target Area ø 5 cm highlighted by highefficiency red light LEDs
- Handpiece with optical group composed of MLS^® source power up to 1.2 W – Peak Power 75 W
  Target Area ø 2 cm highlighted by high-efficiency red lights LEDs

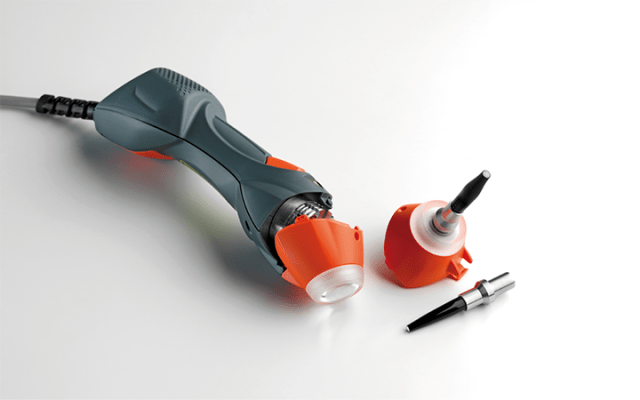

- Laserpuncture terminal
  Target Area of ø 4 mm highlighted by high-efficiency red LED light
- High resolution LCD color touch screen user interface
- Possibility to customize every treatment parameters
- 4 treatment modalities:
  A) specific pathologies
  B) pain management
  C) anti-edema
  D) biostimulation
- MLS^® modulation in CPW and FPW mode (Synchronized emission of Continuous Pulsed Waves and Frequenced Pulsed Waves)
- Modulation frequency from 1 to 2000 Hz with 1 Hz steps
- Power level 25%, 50%, 75% and 100%
- Fixed duty cycle at 50% or variable
- Treatment duration from 1” to 44’59” with 1” steps
- Automatic calculation of the emitted energy according to the settled parameters

Laser emission warning light
Interlock
Acoustic signal selectable by operator
Date and time
Password to operate the device
Language option
Ready to be connected to the remote laser emission signaling device

ACCESSORIES INCLUDED

Nº 2 Light Guide for Laserpuncture
Nº 2 Laser Safety goggles
Unit carrying case
Shoulder strap for portable use
Table handpiece holder
Trolley-Ergonomic trolley designed for holding Mphi, with bumper-protected wheels, a built-in handpiece holder and two storage compartments
Arm for Charlie Orange

SIZE AND WEIGHT

63 x 54 x 85 cm
25 Kg

POWER SUPPLY

Lithium polymer battery
External power supply 18Vdc

MLS^® Laser Therapy

MLS^® Laser Therapy comes from ASA’s scientific research to overcome the limits of traditional laser therapy and at the same time to exploit the advantages of low and high power through a patented quality impulse.
