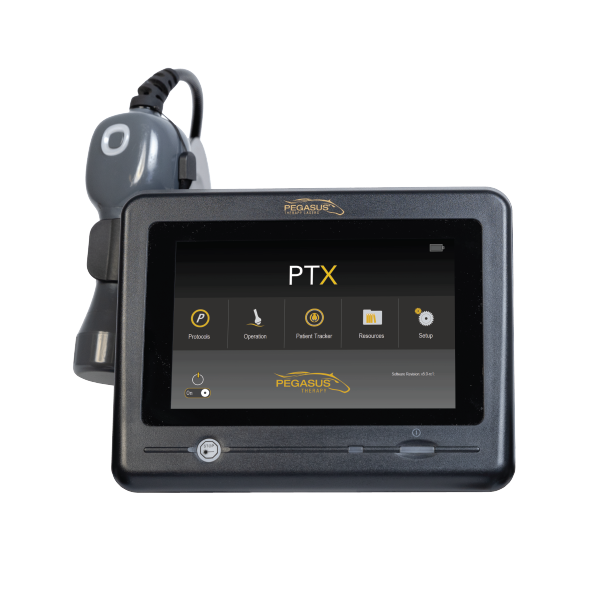

PTX-IQ Therapy Laser
High-power 25W Class IV equine therapy laser engineered with the Empower-IQ™ dynamic feedback delivery system and specialized equine protocols for deep tendon, joint, and spinal rehabilitation.
High photon density penetrates deep through thick equine coat, heavy fascia, and dense flexor tendons to deliver therapeutic thresholds.
Evidence-based clinical presets engineered specifically for equine sports medicine, racehorses, and athletic performance recovery.
Dynamic haptic vibration and visual LED speed feedback guides the practitioner, preventing localized heat buildup across large muscle sweeps.
Heavy-duty shockproof field case and long-life rechargeable lithium battery built for demanding ambulatory equine practices.
High-Power Laser Medicine Engineered Specifically for the Equine Athlete
The PTX-IQ Therapy Laser is the premier high-power Class IV laser therapy system designed exclusively for equine veterinary specialists, equine hospitals, and competitive sports barns. Delivering up to 25 Watts of therapeutic multi-wavelength laser energy, the PTX-IQ provides the optical power necessary to achieve clinically proven photobiomodulation dosing in dense equine anatomy.
Whether treating bowed tendons, suspensory desmitis, sacroiliac strains, or post-surgical arthroscopy recovery, the PTX-IQ delivers deep biostimulation without sedation or invasive interventions. The system’s patented Empower-IQ™ handpiece tracks operator speed in real-time, providing immediate visual and haptic coaching so the clinician can treat large muscle groups along the back and croup safely, uniformly, and with maximum therapeutic efficacy.
Primary Equine Clinical Indications
Equine Tendon & Ligament Injuries
Superficial digital flexor tendonitis (bowed tendon), deep digital flexor tendonitis, suspensory branch desmitis, and inferior check ligament sprains.
Spinal Pathologies & Back Pain
Kissing spines syndrome (impinging dorsal spinous processes), sacroiliac joint strain, thoracolumbar muscle spasm, and dorsal hypertonia.
Joint Disease & Synovitis
Bog spavin, bone spavin, fetlock synovitis, ringbone, carpal osteoarthritis, and degenerative hock joint disease.
Wounds & Post-Surgical Healing
Traumatic distal limb lacerations, overreach injuries, post-arthroscopic joint recovery, and prevention of exuberant granulation tissue (proud flesh).
Technical Specifications
| Laser Classification | Class IV Laser (Equine Veterinary Standard) |
| Peak Output Power | 0.5 W to 25 W (Continuous Wave & Pulsed) |
| Operating Wavelengths | Synchronized 980 nm & 810 nm |
| Aiming Diode | 650 nm red aiming beam (< 5 mW) |
| Handpiece Delivery | Empower-IQ™ Equine handpiece with motion-sensing haptic & LED speed guidance |

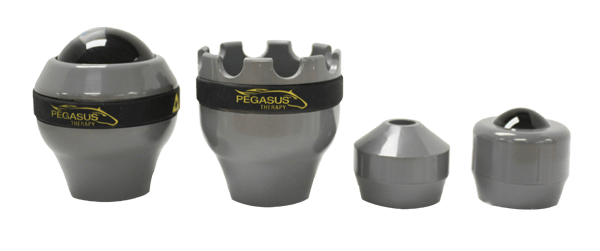

| Optics & Applicators | Heavy-duty equine deep-tissue massage ball applicator & large-spot non-contact cone |
| Pulse Frequency | Continuous Wave (CW), Pulsed (1 Hz to 20,000 Hz) |
| Clinical Software | Pegasus Equine Protocol Suite with anatomical pathology navigation |
| Display | 10.1″ high-contrast capacitive color touchscreen |
| Field Mobility | High-capacity rechargeable Lithium-ion battery + reinforced shockproof transport case |
| Dimensions & Weight | 38 cm (W) x 30 cm (D) x 28 cm (H) | 8.8 kg |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Equine Practice & Hospital Procurement Package
Complete turnkey ambulatory package delivered by Beamed Trading, including PTX-IQ console, Empower-IQ handpiece, deep-tissue massage optics, protective eyewear sets, reinforced flight travel case, 2-year warranty, and certified clinical application training.
