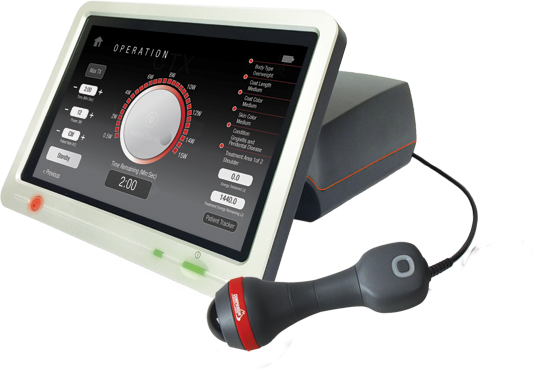

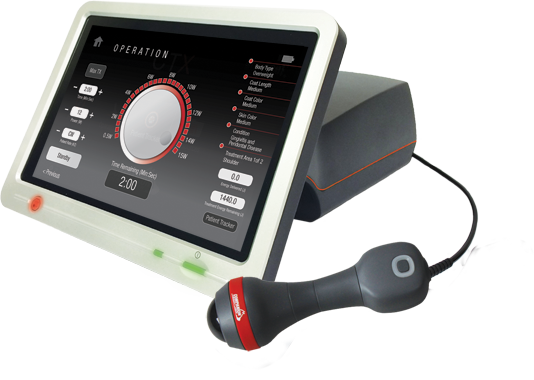

CTX-IQ Laser Therapy Device
Advanced Class IV veterinary laser therapy system featuring Smart Dosage Technology, the intelligent Empower-IQ™ haptic feedback handpiece, and patient-specific dosing for canine and feline rehabilitation.
Patented intelligent handpiece with real-time visual LED and haptic vibration feedback coaching staff on ideal application speed.
Synchronized 980 nm (rapid pain analgesia & local circulation) and 810 nm (mitochondrial ATP biostimulation and cellular repair).
Perfect Protocol software automatically calculates exact joules based on species, weight, coat color, hair length, and chronicity.
Compact, lightweight design with integrated lithium-ion battery enables seamless therapy across exam rooms, cages, and surgery suites.
The Gold Standard in Class IV Veterinary Photobiomodulation
The CTX-IQ Laser Therapy Device is Companion Animal Health’s premier multi-wavelength Class IV therapy laser, engineered to provide veterinary hospitals and specialty rehabilitation clinics with the most intuitive, safe, and clinically effective laser solution available. Delivering adjustable power up to 15 Watts, the CTX-IQ achieves deep tissue penetration for superior pain management, inflammation control, and accelerated tissue healing in dogs, cats, and exotic companion species.

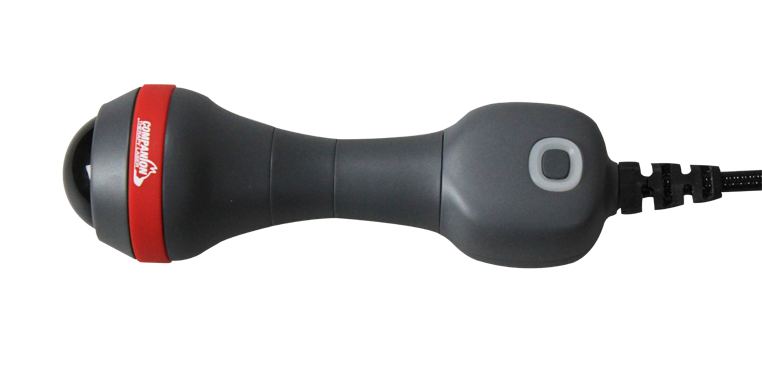

At the core of the CTX-IQ is the groundbreaking Empower-IQ™ handpiece. By measuring real-time handpiece movement and delivering instant visual and haptic feedback to the operator, Empower-IQ ensures consistent, uniform energy delivery while eliminating the risk of overtreatment or thermal discomfort. The software’s intuitive interface eliminates guesswork, allowing both seasoned veterinarians and veterinary technicians to deliver reproducible, evidence-based treatments.
Primary Veterinary Clinical Indications
Canine Osteoarthritis & Joint Dysplasia
Hip dysplasia, elbow dysplasia, stifle osteoarthritis, shoulder osteochondritis, and chronic geriatric lameness.
Spinal & Neurological Disorders
Intervertebral disc disease (IVDD Stages I–IV), lumbosacral stenosis (cauda equina syndrome), spondylosis, and fibrocartilaginous embolism (FCE).
Post-Surgical Healing & Traumatology
TPLO / TTA recovery, fracture repair, post-amputation recovery, soft tissue lacerations, and surgical incision dehiscence prevention.
Dermatological & Dental Conditions
Refractory lick granulomas, feline chronic gingivostomatitis (FCGS), acute moist dermatitis (hot spots), and chronic otitis externa.
Technical Specifications
| Laser Classification | Class IV Laser (FDA Cleared Medical Device) |
| Output Power | 0.5 W to 15 W (Continuous Wave & Pulsed) |
| Therapeutic Wavelengths | Synchronized 980 nm & 810 nm |
| Aiming Beam | 650 nm red aiming diode (< 5 mW) |
| Handpiece System | Empower-IQ™ intelligent handpiece with motion-sensing haptic & LED speed guidance |
| Optical Applicators | Deep-tissue contact massage ball, non-contact cone, small treatment adapter |
| Operating Modes | Continuous Wave (CW), Single Pulse, Repeat Pulse (1 Hz to 20,000 Hz) |
| Smart Dosing Software | Species-specific parameters (Canine, Feline, Exotic) based on weight, coat color, and condition |
| User Interface | 10.1″ high-resolution capacitive color touchscreen with 3D anatomical library |
| Battery Operation | Integrated high-density Lithium-ion battery (up to 4 hours active runtime) |
| Dimensions & Weight | 35 cm (W) x 28 cm (D) x 25 cm (H) | 7.5 kg |
| Power Supply | 100–240 VAC, 50/60 Hz |
Veterinary Hospital Turnkey Procurement Package
Beamed Trading is the authorized regional distributor for Companion Animal Health. Every CTX-IQ package includes on-site clinic installation, certified doctor and technician laser training, complete protective eyewear sets (including canine Doggles!), 2-year factory warranty, and client educational marketing materials.
