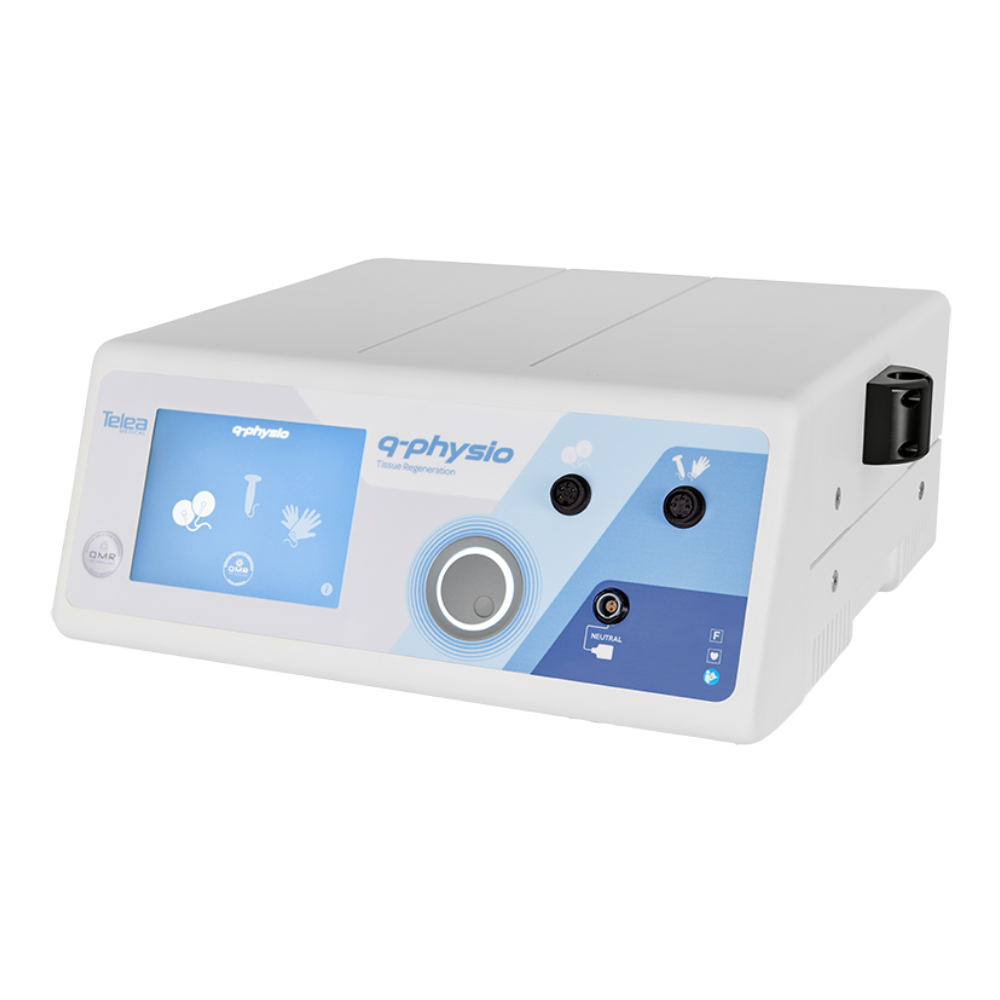

Q-Physio Quantum Molecular Resonance (QMR) Cellular Regeneration System
Telea Medical Q-Physio is an innovative, patented medical device powered by Quantum Molecular Resonance (QMR) technology. Operating with 16 simultaneous non-thermal harmonic frequencies (4–64 MHz), Q-Physio depolarizes cell membranes and stimulates cellular regeneration and tissue repair without hyperthermic injury. Includes active Q-Touch conductive gloves, multi-spheroid handpieces, and sequential adhesive plates for elite sports medicine, orthopedics, and acute rehabilitation.
CE 0051 Medical Device Class IIa
Clinical Overview: Biological Regeneration via Quantum Molecular Resonance
The Q-Physio cellular regeneration system, engineered in Italy by Telea Electronic Engineering S.r.l., represents a revolutionary paradigm shift in advanced physical therapy. Unlike conventional diathermy or hyperthermia devices that rely on thermal tissue heating to induce vasodilation, Q-Physio harnesses patented Quantum Molecular Resonance (QMR) technology. By delivering an ultra-precise, non-thermal multi-frequency spectrum, Q-Physio stimulates biological molecular bonds at the cellular level, initiating real cellular repair, physiological tissue regeneration, and rapid pain alleviation without thermal trauma or collateral tissue damage.
Zero Hyperthermia • Non-Destructive
Q-Touch Active Conductive Gloves
Safe in Acute Traumatic Phase
Biological Mechanism & Non-Hyperthermic Advantage
Traditional physical therapy electromagnetic devices (e.g., standard tecar therapy or microwave diathermy) operate primarily by generating endogenous friction heat (41°C – 44°C). While thermal therapy increases local blood flow, it triggers inflammatory cascades and risks cellular apoptosis, making it strictly contraindicated during the acute trauma phase. QMR operates on a completely different quantum principle:
Cell Membrane Depolarization
Transfers quantum energy quanta matching biological chemical bonds, transiently depolarizing quiescent cellular membranes and restoring homeostatic ionic flux across trans-membrane pump systems.
Calcium Ion Release & Mitosis
Stimulates rapid intracellular Ca²• mobilization from the sarcoplasmic reticulum, triggering DNA transcription, cellular mitosis, and accelerating stem cell differentiation into healthy tissue rather than fibrous scar tissue.
Immediate Acute-Phase Safety
Because QMR transfers energy non-thermally without raising core tissue temperature, it can be safely administered within minutes of acute trauma, accelerating hematoma and edema resorption immediately.
Key Technological Innovations & Clinical Applicators
16 Simultaneous Harmonic Frequencies
Unlike single-frequency generators, Q-Physio generates 16 simultaneous discrete harmonic frequencies between 4 MHz and 64 MHz (4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56, 60, 64 MHz) with high-efficiency energy transfer to diverse biological tissues simultaneously.

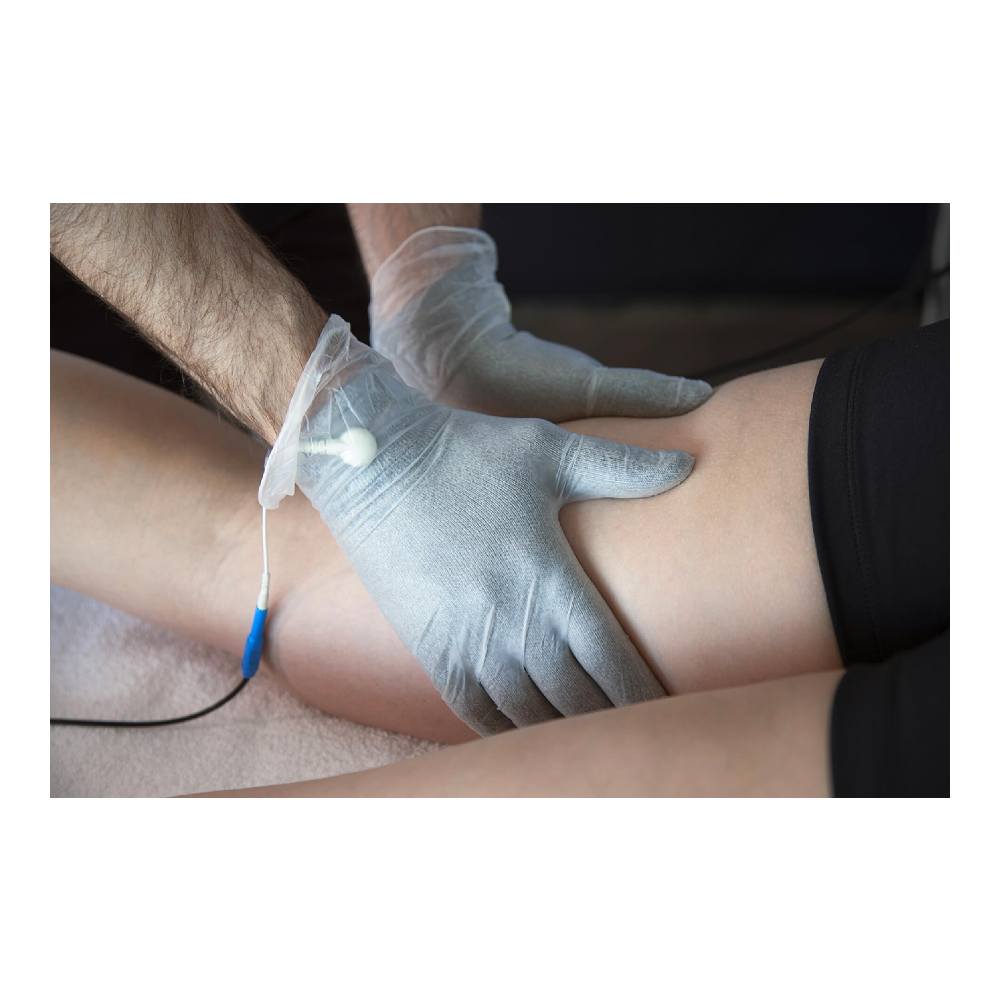

Q-Touch Active Conductive Gloves
Patented silver-microfiber conductive therapy gloves enable the clinician to deliver QMR resonance seamlessly while executing manual therapy, myofascial release, joint mobilization, and trigger-point maneuvers with complete tactile feedback.

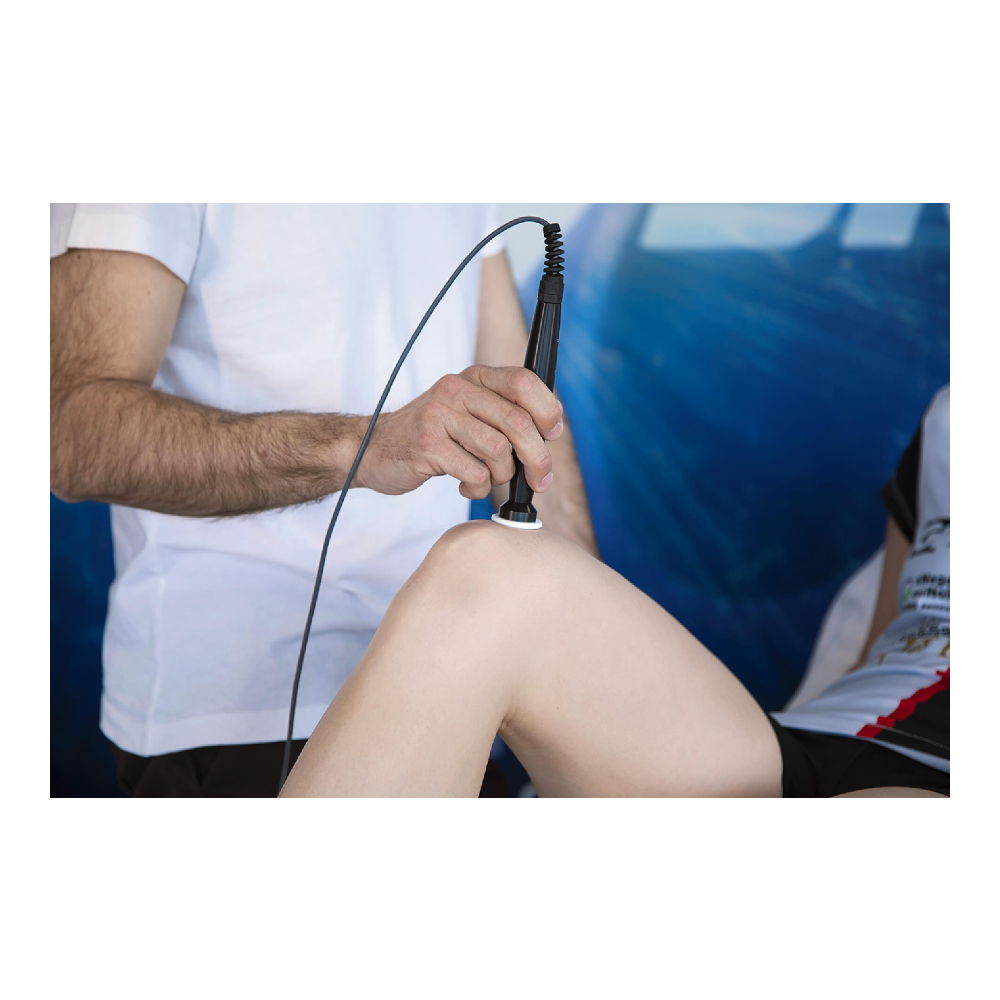

Monopolar Spheroid Handpieces
Ergonomic dynamic treatment handpiece equipped with quick-swap spherical electrodes (Ø 10 mm, 35 mm, 50 mm) for targeted tendon, ligament, and deep muscle belly treatments with optimal contact impedance.

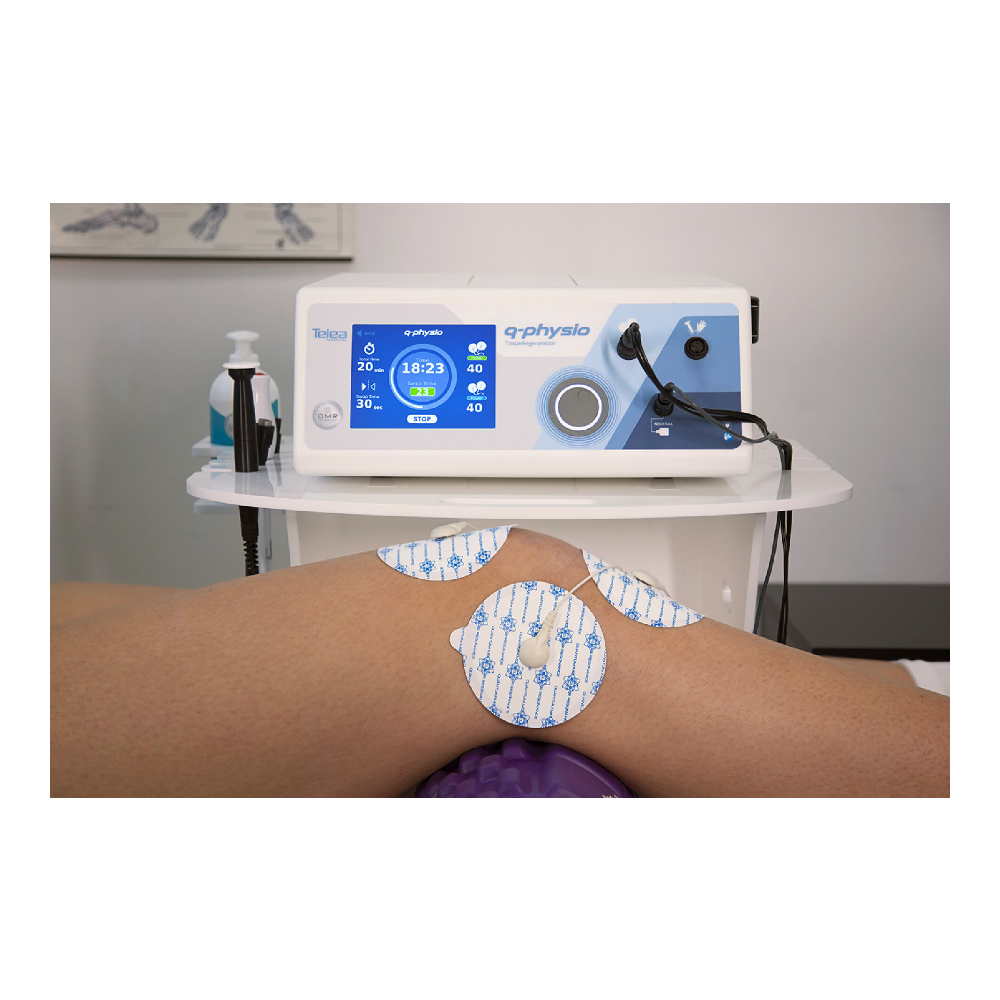

Hands-Free Multi-Zone Static Plates
Self-adhesive multi-electrode system for automated, sequential treatment cycles. Allows hands-free clinical operation for extensive anatomical zones such as spine, lower back, and bilateral quadriceps.
Clinical Indications & Medical Fields
Muscle tears & strains (Grades I, II, III), acute contusions, ligament sprains, post-injury edema, tendon ruptures.
Osteoarthritis, gonarthrosis, coxarthrosis, patellofemoral syndrome, frozen shoulder (adhesive capsulitis), epicondylitis.
Cervicalgia, lumbago, disc herniations, facet joint arthropathy, myofascial pain syndrome, piriformis syndrome.
ACL/PCL ligament reconstruction, arthroscopic repairs, total knee/hip joint arthroplasty, rotator cuff repair.
Technical Specifications & Engineering Standards
| Parameter / Engineering Metric | Technical Specification |
|---|---|
| Manufacturer & Origin | Telea Electronic Engineering S.r.l. • Sandrigo (Vicenza), Italy |
| Core Patented Technology | Quantum Molecular Resonance (QMR) / Rexon-Age Non-Thermal Resonance |
| Operating Frequency Spectrum | 4 MHz – 64 MHz (16 Simultaneous Harmonic Frequencies) |
| Maximum Output Power | Electrodes: 60 W / 200 Ω • Handpiece & Gloves: 50 W / 200 Ω |
| Electrical Power Supply | 100 – 230 V~ • 50 / 60 Hz • Max 200 VA |
| Medical & Electrical Safety Classification | Class IIa Medical Device (MDD 93/42/EEC & MDR 2017/745) • Class I Type CF Applied Parts (Defibrillator-Proof) |
| Physical Dimensions (W × D × H) | 410 × 400 × 180 mm (Compact Tabletop • Mobile Clinic Ready) |
| Device Net Weight | 11.0 kg (Ultra-portable for field & sports team deployment) |
| Clinical Applicators Included | Ergonomic Handpiece with 10mm, 35mm, 50mm electrodes, Q-Touch Silver Conductive Gloves, Sequential Adhesive Plates, Magnetic Neutral Return Plate |
| Notified Body Certification | CE 0051 (IMQ Italy) • ISO 13485:2016 Certified Medical Manufacturer |
Official Technical Documentation & Clinical Brochures
Download certified manufacturer specifications, clinical dossiers, and therapy manuals.
Official 2024 PDF Assets
Q-Physio 2024 Clinical & Technical Catalog
Comprehensive 9-page clinical dossier detailing QMR scientific principles, scientific bibliography, indications, and full system configuration (PDF, 1.6 MB).
Q-Touch 2024 Active Gloves Brochure
Technical specifications and clinical application guidelines for patented conductive silver-fiber gloves in active manual physical therapy (PDF, 1.1 MB).
