Synchronized Dual-Wavelength Photobiomodulation: The Clinical Science Behind ASA Laser MiS® and MLS® Technology
Sep
PHOTOBIOMODULATION · MLS® & MiS®
Synchronous 808 nm (continuous) and 905 nm (pulsed) laser synergy
Ultra-short nanosecond pulses delivering deep energy without thermal damage
Homogeneous treatment field covering large muscular and joint regions
Significant VAS pain reduction recorded after the very first treatment session
1. The Science of Synchronized Dual-Wavelengths: MLS® Principle
Traditional therapeutic lasers emit single wavelengths either in continuous wave (CW) or pulsed mode (PW). Continuous wave is primarily effective for reducing inflammatory edema and stimulating microcirculation, but carries high risk of cutaneous burns if power is raised. Pulsed wave provides instantaneous analgesia by hyperpolarizing nerve endings, but lacks sustained biochemical stimulus.
MLS® (Multiwave Locked System) overcomes this limitation by simultaneously delivering two distinct, synchronized wavelengths:
- 808 nm (Continuous & Frequency-Modulated): Directly targets the vascular and lymphatic beds, stimulating capillary neoangiogenesis, reducing interstitial exudates, and promoting rapid drainage of inflammatory swelling.
- 905 nm (Pulsed High Peak Power): Targets A-delta and C sensory nerve fibers, inhibiting pain conduction via the gate control mechanism and triggering local beta-endorphin release.
Crucially, because the two emissions are synchronized, the anti-edema effect amplifies the analgesic effect, and vice-versa, creating a true clinical synergy that cannot be replicated by administering two independent lasers sequentially.

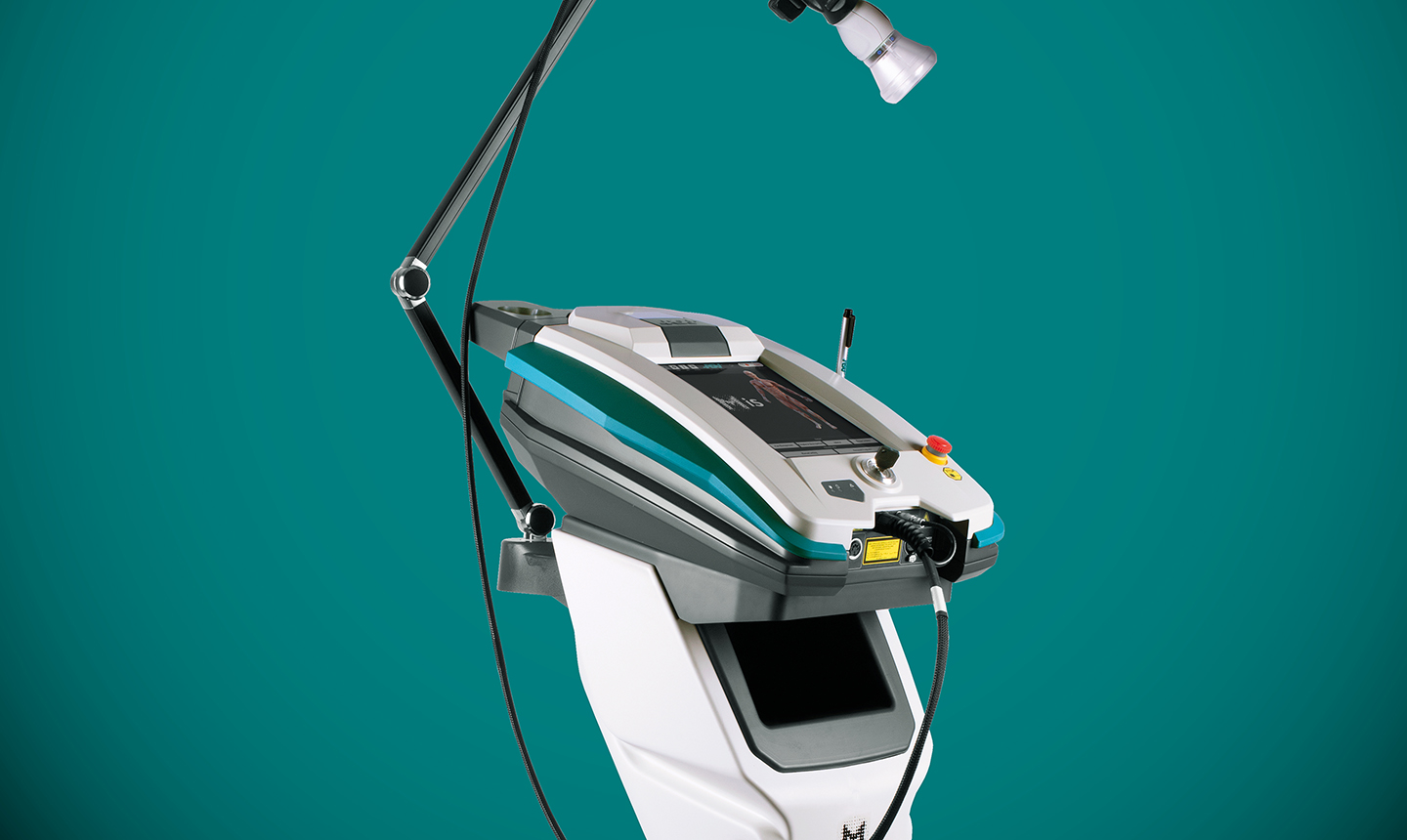

2. What Makes MiS® Groundbreaking: Super-Pulsed High Energy Density
The MiS® platform elevates the MLS® concept into intensive therapeutic territory. Utilizing a multi-diode optical architecture capable of peak pulse power reaching 1,000 Watts (1 kW), MiS® achieves ultra-short pulse durations in the nanosecond range. This enables photons to penetrate deep through skin, subcutaneous adipose tissue, and deep muscular fascia without triggering thermal buildup at the cutaneous barrier.
| ASA LASER MiS® — SYSTEM SPECIFICATIONS | |
|---|---|
| Laser Sources | MLS® Dual-Wavelength Synchronized Multi-Diode Array |
| Wavelengths | 808 nm (CW/PW) & 905 nm (Super-Pulsed) |
| Peak Pulse Power | Up to 1,000 W (1 kW) peak power per pulse |
| Pulse Duration | Nanosecond domain (< 100 ns) ensuring zero thermal damage |
| Pulse Frequency | Adjustable from 1 to 2,000 Hz in precision steps |
| Spot Size & Area | Multi-diode optical applicator delivering homogeneous 5 cm diameter target zone |
| Clinical Indications | Sprains, muscle tears, osteoarthritis, neuropathic pain, edema, tendon pathology |
| Safety & Compliance | Class 4 Laser System; CE 0051 Medical Device Certification; FDA 510(k) |
“In sports medicine, every day of recovery saved is vital. The ASA Laser MiS platform has revolutionized our acute injury management. Athletes presenting with severe grade II ankle sprains experience immediate edema evacuation and pain resolution within 48 hours.”
— Sports Rehabilitation Director, Premier League Medical Department
Elevate Your Hospital or Clinic with ASA Laser MiS®
Beamed Trading distributes ASA Laser systems across Qatar and the region, backed by clinical certification, on-site setup, and complete technical warranty support.
